3-3
INSTRUMENT AND CONTROL FUNCTIONS
3
EAU00158

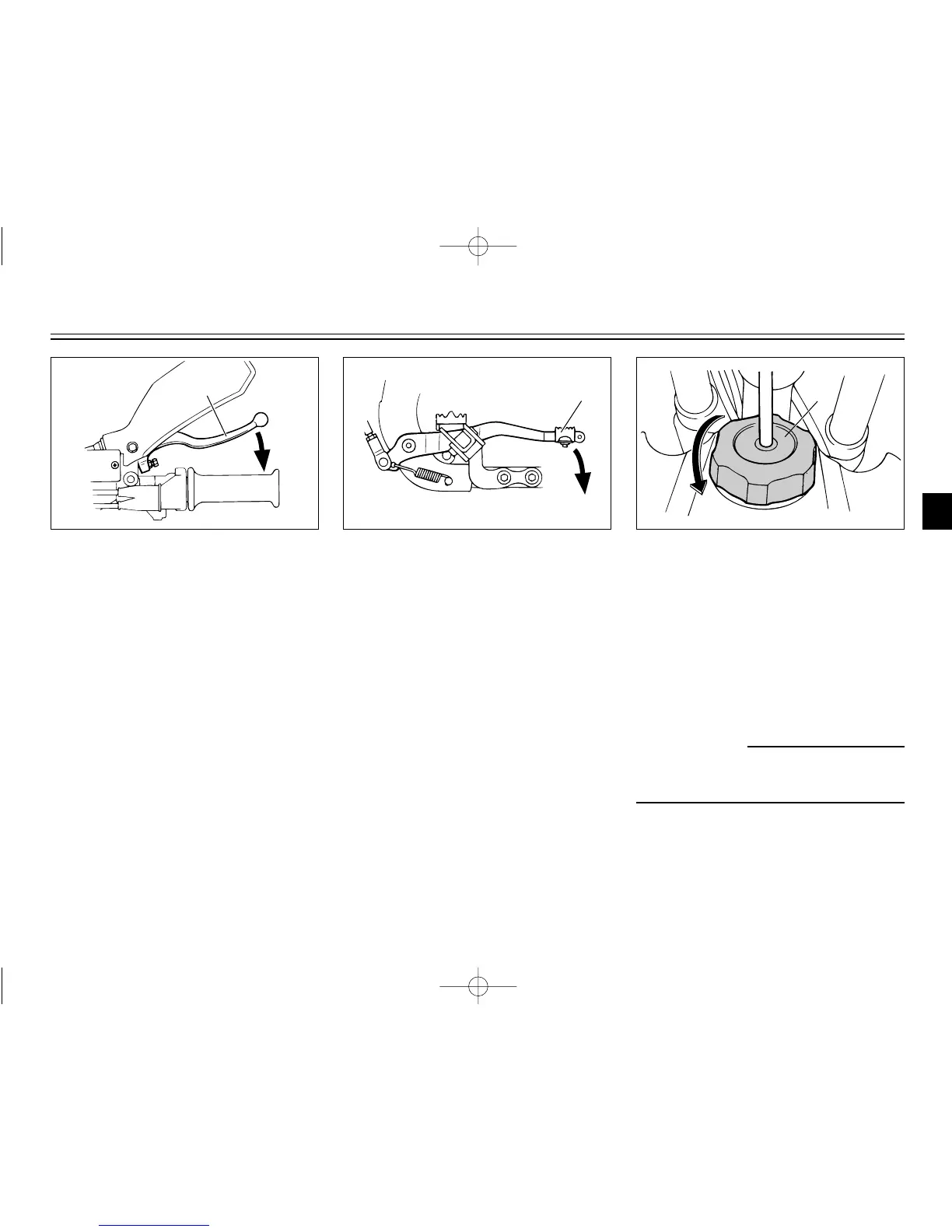

Brake lever
The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the han-
dlebar grip.
1
1. Brake lever
EAU00179
Fuel tank cap
To remove the fuel tank cap, turn it
counterclockwise, and then pull it off.
To install the fuel tank cap, insert it
into the tank opening, and then turn it
clockwise.
EWA00025
w
Make sure that the fuel tank cap is
properly closed before riding.
1
a
1. Fuel tank cap
a. Remove.
EAU00162
Brake pedal
The brake pedal is on the right side
of the machine. To apply the rear
brake, press down on the brake
pedal.
1
1. Brake pedal
5GF-9-14 (USA) 4/23/02 2:10 PM Page 21

Yamaha TT-R Specifications

General

Ignition	CDI
Final Drive	Chain
Fuel Delivery	Carburetor
Transmission	5-speed
Suspension / Front	Telescopic fork
Brakes / Rear	Drum
Height	1, 080 mm (42.5 in)
Rake (Caster Angle)	27º
