6-36
PERIODIC MAINTENANCE AND MINOR REPAIR
6

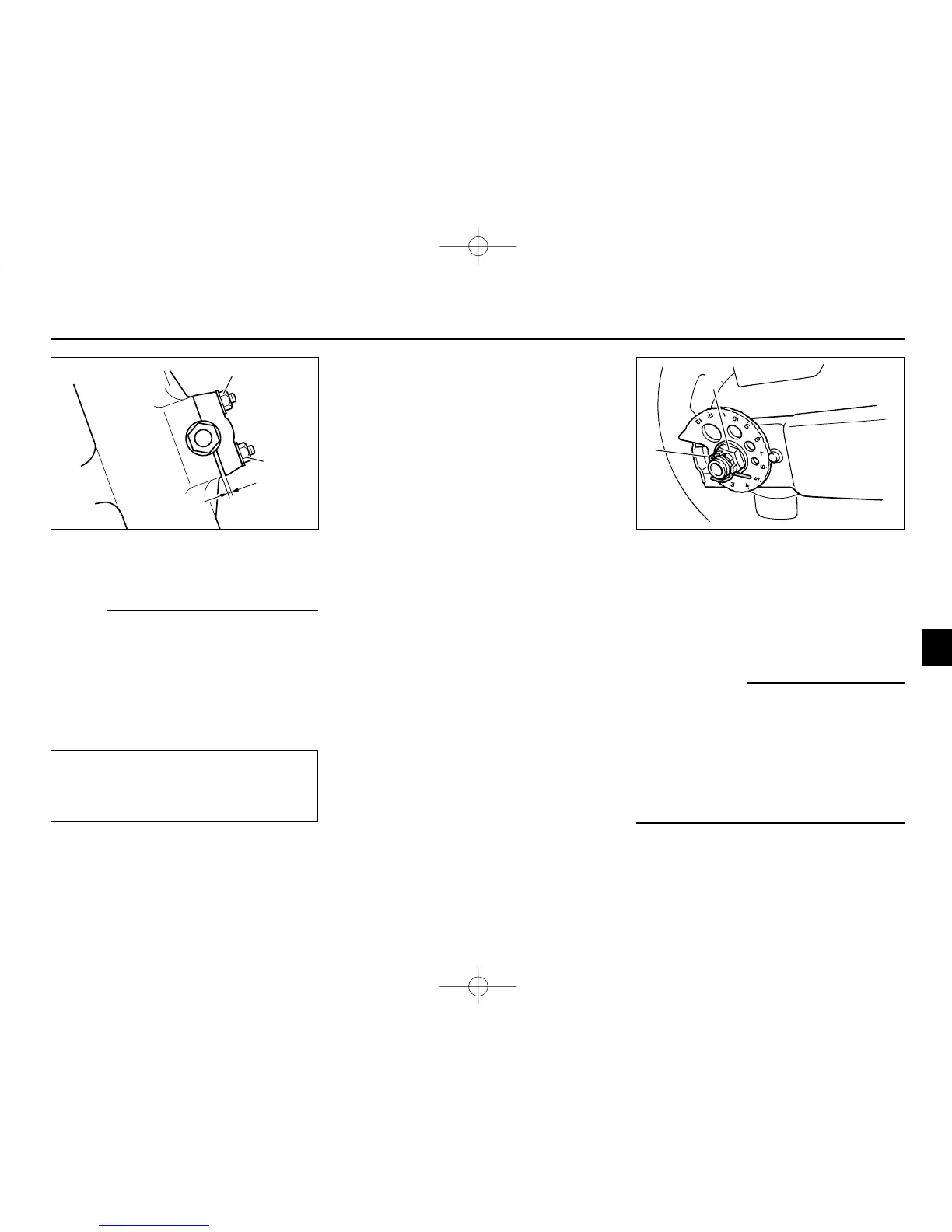

NOTE:
Tighten the upper nuts first, and then
the lower ones. When the nuts are
tightened in this sequence, there
should be a gap at the bottom of the
axle holder.
a
1
2
1. Upper nut (×2)
2. Lower nut (×2)
a. Gap
EAU03070
Rear wheel
To remove the rear wheel
EW000122
w
8 It is advisable to have a
Yamaha dealer service the
wheel.
8 Securely support the machine
so that there is no danger of it
falling over.
1. Remove the axle nut cotter pin,
and then loosen the axle nut.
1
2
1. Cotte pin
2. Axle nut
5. While applying the front brake,
push down hard on the handle-
bars several times to check if the
front fork compresses and
rebounds smoothly.
6. Connect the tripmeter cable.
Tightening torque:
Wheel axle holder nut:
10 Nm (1.0 m0kgf, 7.2 ft0lbf)
5GF-9-14 (USA) 4/23/02 2:10 PM Page 75

Yamaha TT-R Specifications

General

Ignition	CDI
Final Drive	Chain
Fuel Delivery	Carburetor
Transmission	5-speed
Suspension / Front	Telescopic fork
Brakes / Rear	Drum
Height	1, 080 mm (42.5 in)
Rake (Caster Angle)	27º
