Yamaha TT-R User Manual

6-35
PERIODIC MAINTENANCE AND MINOR REPAIR
6
EAU04367

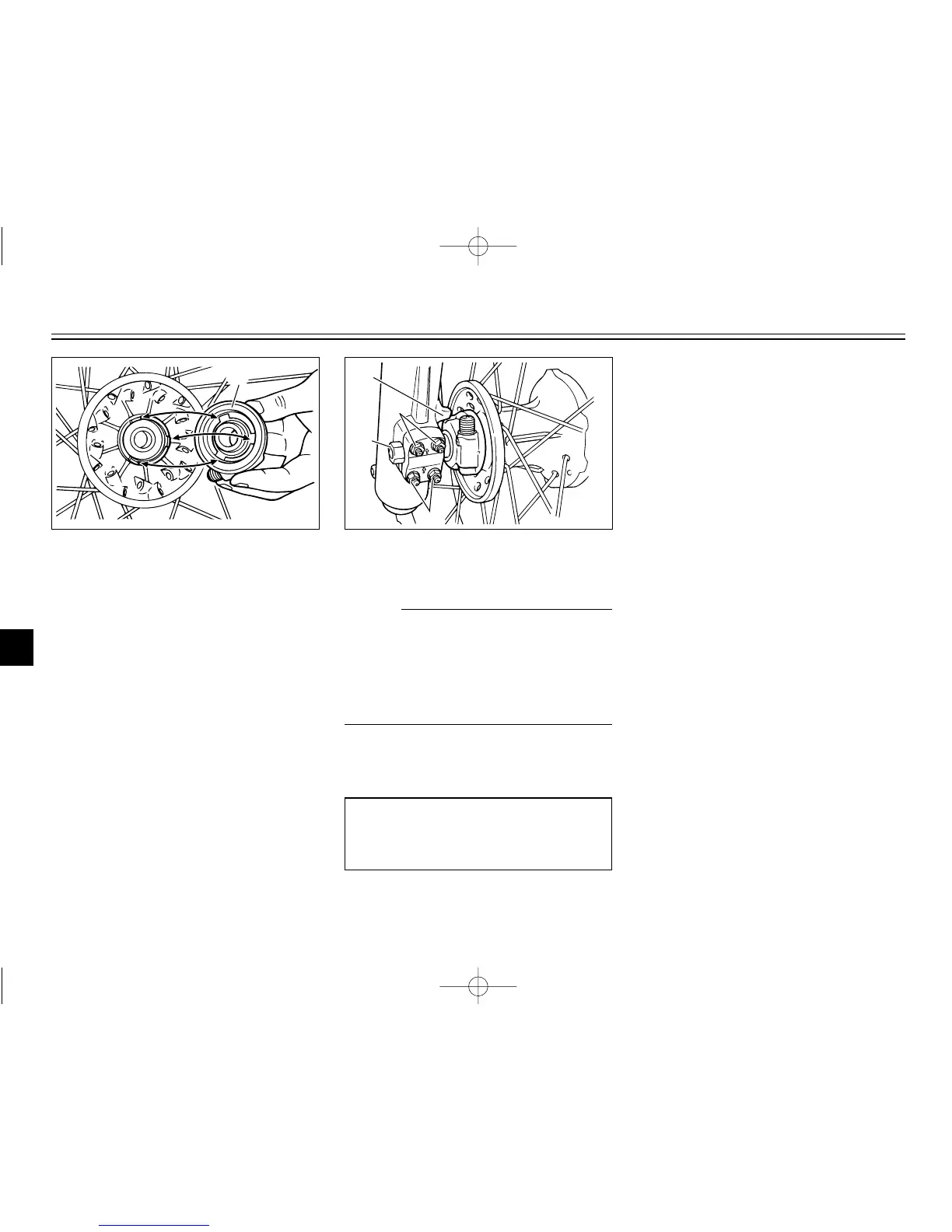

To install the front wheel
1. Install the tripmeter gear unit into
the wheel hub so that the projec-
tions mesh with the slots.
2. Lift the wheel up between the
fork legs.
1
1. Tripmeter gear unit
4. Tighten the wheel axle holder
nuts to the specified torque.
NOTE:
Make sure that there is enough
space between the brake pads
before inserting the brake disc and
that the slot in the tripmeter gear unit
fits over the retainer on the fork leg.
3. Insert the wheel axle, and then
tighten it to the specified torque.
1
3
3
2
1. Retainer
2. Wheel axle
3. Wheel axle holder nut (×4)
Tightening torque:
Wheel axle:
58 Nm (5.8 m0kgf, 42 ft0lbf)
5GF-9-14 (USA) 4/23/02 2:10 PM Page 74

Yamaha TT-R Specifications

General

Ignition	CDI
Final Drive	Chain
Fuel Delivery	Carburetor
Transmission	5-speed
Suspension / Front	Telescopic fork
Brakes / Rear	Drum
Height	1, 080 mm (42.5 in)
Rake (Caster Angle)	27º
