Muffler
5-16

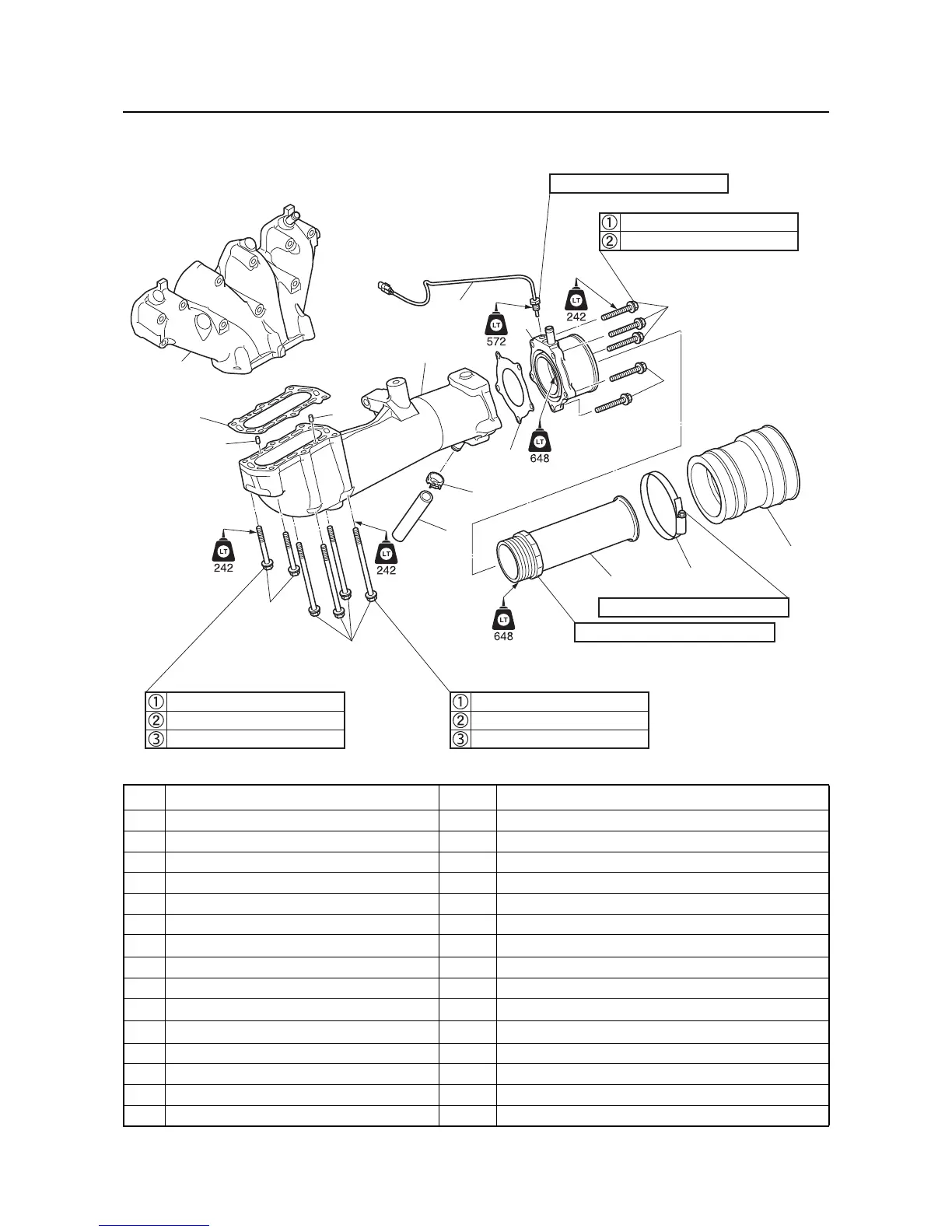

Muffler
No. Part name
Q
’ty
Remarks
1 Clamp 1
2Pipe 1
3 Thermo sensor 1
4 Clamp 1
5 Cooling water hose 1
6 Exhaust pipe 1
7Bolt 5
M8
× 35 mm
8 Exhaust pipe 1
9 Gasket 1 Not reusable
10 Bolt 2
M8
× 70 mm
11 Bolt 4
M8
× 120 mm
12 Exhaust pipe 1
13 Gasket 1 Not reusable
14 Dowel pin 2
15 Exhaust manifold 1
20 Nm (2.0 kgf·m, 14.8 ft·lb)
29 Nm (2.9 kgf·m, 21.4 ft·lb)
15 Nm (1.5 kgf·m, 11.1 ft·lb)
1
2
7
7
11
10
14
15
13
12
4
5
3
9
6
8
200 Nm (20.0 kgf·m, 147.5 ft·lb)
2.5 Nm (0.25 kgf·m, 2.58 ft·lb)
20 Nm (2.0 kgf·m, 14.8 ft·lb)
20 Nm (2.0 kgf·m, 14.8 ft·lb)
35 Nm (3.5 kgf·m, 25.8 ft·lb)
20 Nm (2.0 kgf·m, 14.8 ft·lb)
20 Nm (2.0 kgf·m, 14.8 ft·lb)
35 Nm (3.5 kgf·m, 25.8 ft·lb)
14
