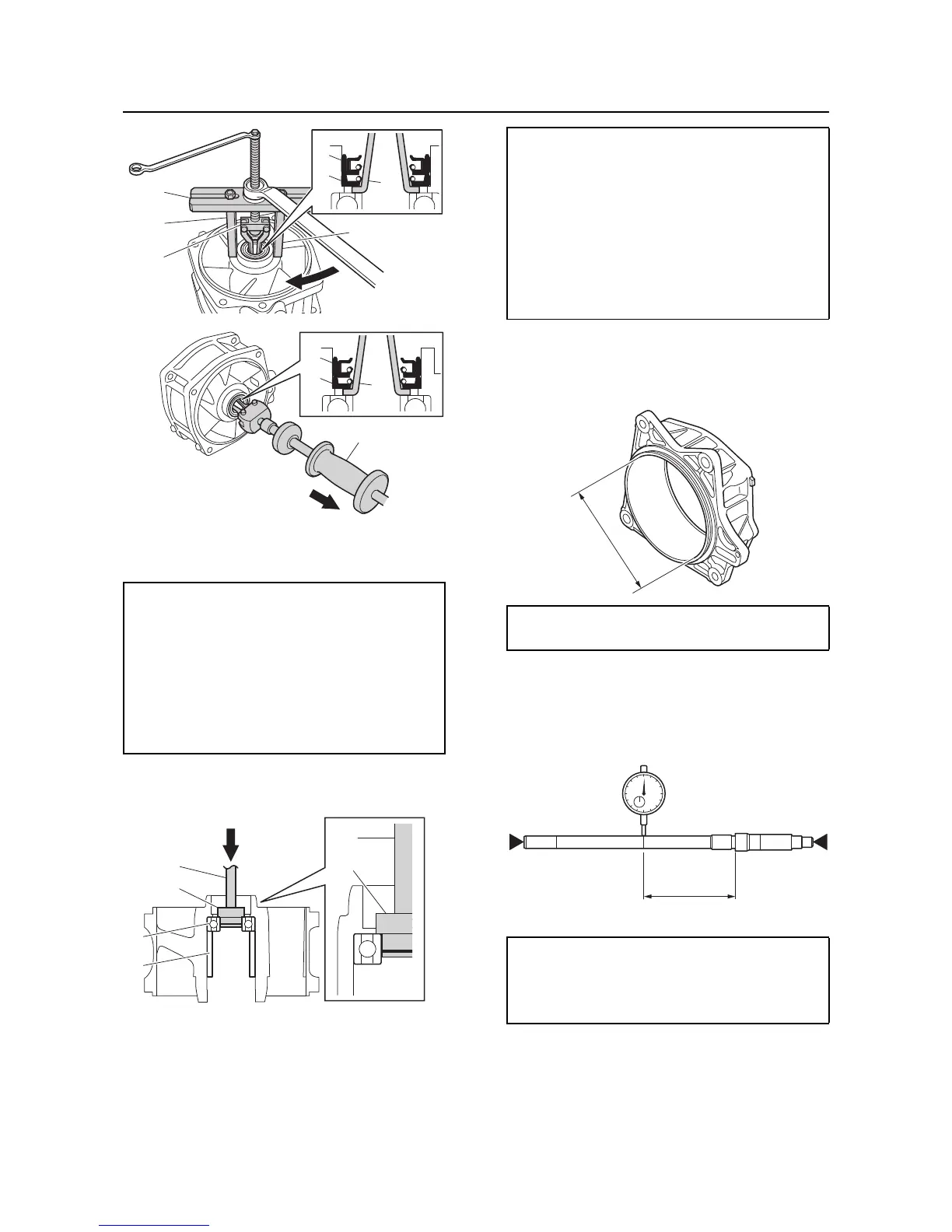

Impeller, drive shaft, and impeller duct
6-12
6. Remove the spacer “1”, and then remove
the ball bearing “2” using a press.
Impeller housing check
1. Measure the impeller housing inside diam-
eter “a”. Replace if out of specification.
Drive shaft check
1. Measure the drive shaft runout. Replace if
out of specification.
Impeller duct ASSY assembly
1. Install a new oil seal “1” halfway into the
impeller duct, and then install a new oil
seal “2”.
A. Worldwide
B. U.S.A. and Canada
Stopper guide plate “3”
90890-06501
Bearing puller assembly “4”
90890-06535
Stopper guide stand “5”
90890-06538
Slide hammer “6”
YB-06096
Driver rod L3 “3”
90890-06652
Driver handle (large) “3”
YB-06071
Needle bearing attachment “4”
90890-06609
Driveshaft needle bearing installer and
remover “4”
YB-06194
Inside diameter
155.35–155.45 mm (6.116–6.120 in)
Runout limit
0.30 mm (0.0118 in)
Distance “a”
310 mm (12.20 in)
