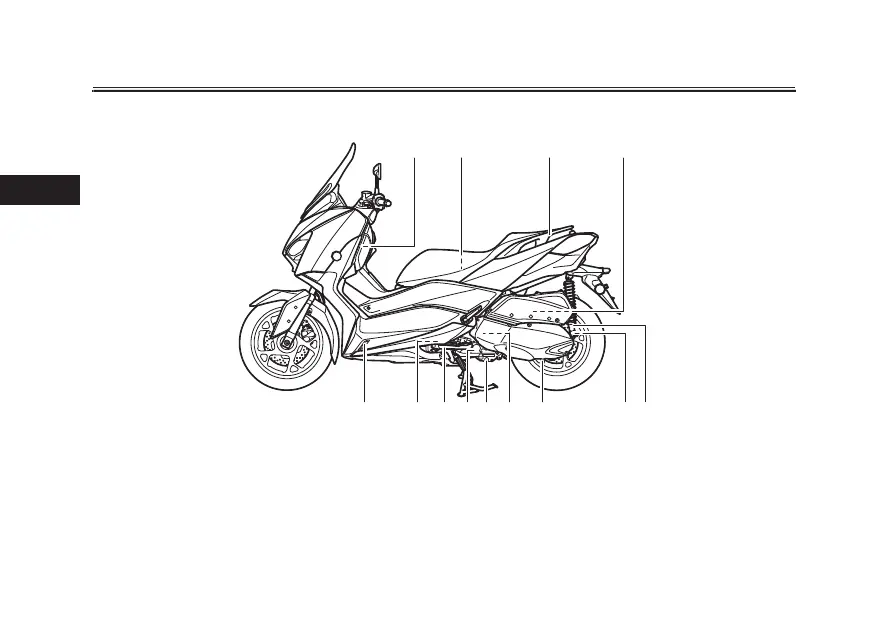

Yamaha XMAX - Description; Left View of the Scooter

%FTDSJQUJPO
3-1

EAU10411
-FGUWJFX
41
5610 812 791113
2 3
1. Storage compartment A (page 5-18)
2. Owner’s tool kit (page 8-1)
3. Grab bar (page 7-2)
4. Air lter element (page 8-15)
5. Shock absorber assembly spring preload adjusting ring (page 5-23)
6. Final transmission oil ller cap (page 8-12)
7. Final transmission oil drain bolt (page 8-12)
8. V-belt case air lter element (page 8-15)
9. Engine oil drain bolt (page 8-10)
10.Engine oil lter element (page 8-10)
11.Sidestand (page 5-23)
12.Spark plug (page 8-9)
13.Coolant reservoir (page 8-13)
