Yamaha XMAX - Multi-Function Display

*OTUSVNFOUBOEDPOUSPMGVODUJPOT
5-3

EAU63551
5BDIPNFUFS
The electric tachometer allows the rid-
er to monitor the engine speed and
keep it within the ideal power range.
When the vehicle power is turned on,
the tachometer needle will sweep once
across the r/min range and then return
to zero r/min in order to test the electri-
cal circuit.
NOTICE
ECA10032
%POPUPQFSBUFUIFFOHJOFJOUIFUB
DIPNFUFSSFE[POF
3FE[POFSNJOBOEBCPWF
EAU78484
.VMUJGVODUJPOEJTQMBZ
8"3/*/(
EWA12423
#F TVSF UP TUPQ UIF WFIJDMF CFGPSF
NBLJOHBOZTFUUJOHDIBOHFTUPUIF
NVMUJGVODUJPONFUFSVOJU$IBOHJOH
TFUUJOHTXIJMFSJEJOHDBOEJTUSBDUUIF
PQFSBUPSBOEJODSFBTFUIFSJTLPGBO
BDDJEFOU
The “TRIP/INFO” switch is located on
the right side of the handlebar. This
switch allows you to control or change
the settings of the multi-function meter
unit. To use the “TRIP” switch, move
the “TRIP/INFO” switch in direction (a).
To use the “INFO” switch, move the
“TRIP/INFO” switch in direction (b).

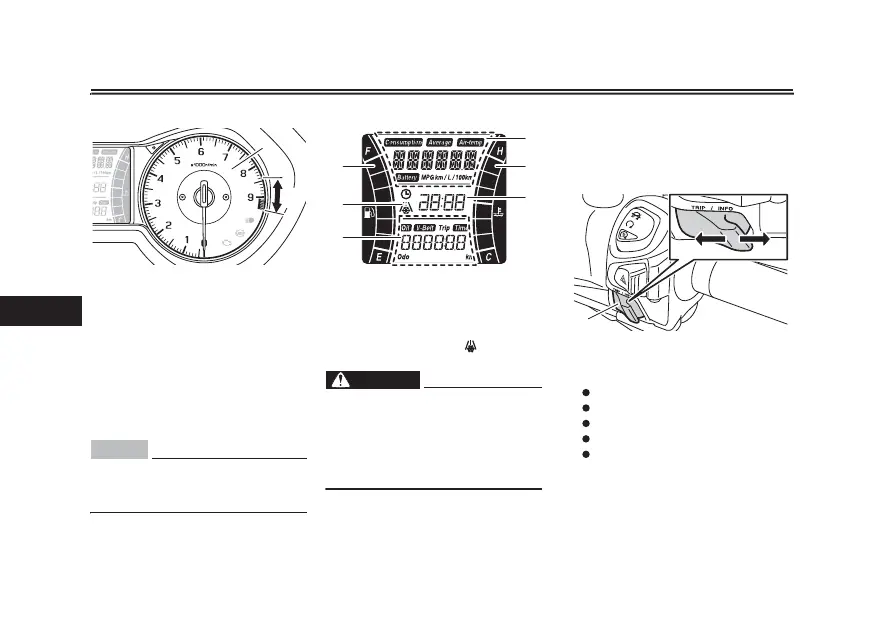

1. Tachometer
2. Tachometer red zone
1. Fuel meter
2. Information display
3. Coolant temperature meter
4. Clock
5. Tripmeter display
6. Icy road warning indicator “ ”
2
3
4
1
6
5
1
2
The multi-function display is equipped
with the following:
clock
fuel meter
coolant temperature meter
tripmeter display
information display
1. “TRIP/INFO” switch
1
(b)(a)
