Yamaha XMAX - Page 78

8-16

1FSJPEJDNBJOUFOBODFBOEBEKVTUNFOU

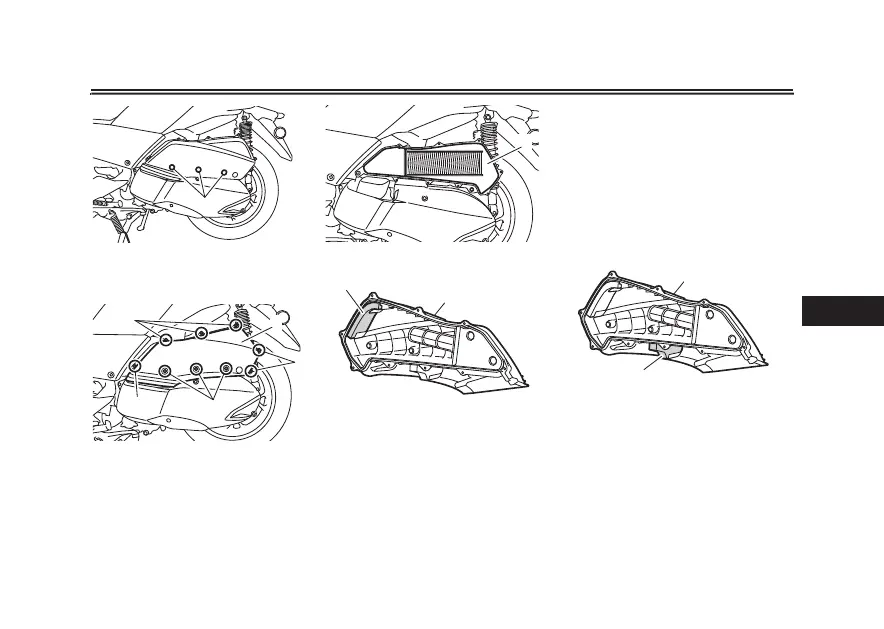

3. Remove the air lter case cover by
removing the screws.
4. Pull the air lter element and sub
air lter element out.
5. Insert a new sub air lter element
into the air lter case cover.
6. Insert a new air lter element into
the air lter case. NOTICE:.BLF
TVSFUIBUUIFBJSãMUFSFMFNFOUJT
QSPQFSMZ TFBUFE JO UIF BJS ãMUFS
DBTF 5IF FOHJOF TIPVME OFWFS
CFPQFSBUFEXJUIPVUUIFBJSãMUFS
FMFNFOUJOTUBMMFEPUIFSXJTFUIF
QJTUPOTBOEPSDZMJOEFSTNBZ
CFDPNF FYDFTTJWFMZ XPSO
[ECA10482]
7. Pull the pre air lter element out,
and then blow out the dirt with
compressed air as shown.
1. Rubber plug
1. Air lter case cover
2. Screw
1
1
2
2
2
2
1. Air lter element
1. Sub air lter element
2. Air lter case cover
1
1
2
1. Pre air lter element
2. Air lter case cover
1
2
