8. Check the pre air lter element for
damage, and replace it if neces-
sary.
9. Insert the pre air lter element into
the air lter case cover.
10. Install the air lter case cover by
installing the screws.

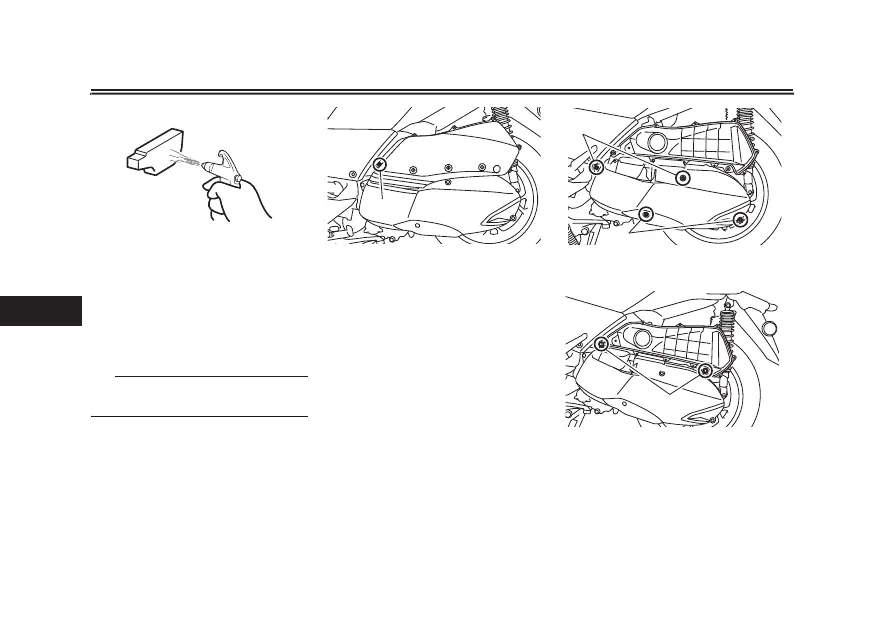

5*1
The long screw should be installed as
shown.
11. Install the rubber plugs.
$MFBOJOHUIF7CFMUDBTFBJSãMUFSFM
FNFOU
1. Place the vehicle on the center-
stand.
2. Remove the air lter case cover.
(See the previous section.)
3. Remove the V-belt case cover
screws.
4. Remove the air lter case bolts.
1. Long screw
1. Screw
1
1
1
1FSJPEJDNBJOUFOBODFBOEBEKVTUNFOU
5. Lift up the air lter case slightly, re-
move the rear wheel sensor lead
from the holder, and then remove
the V-belt case cover.
1. Bolt
