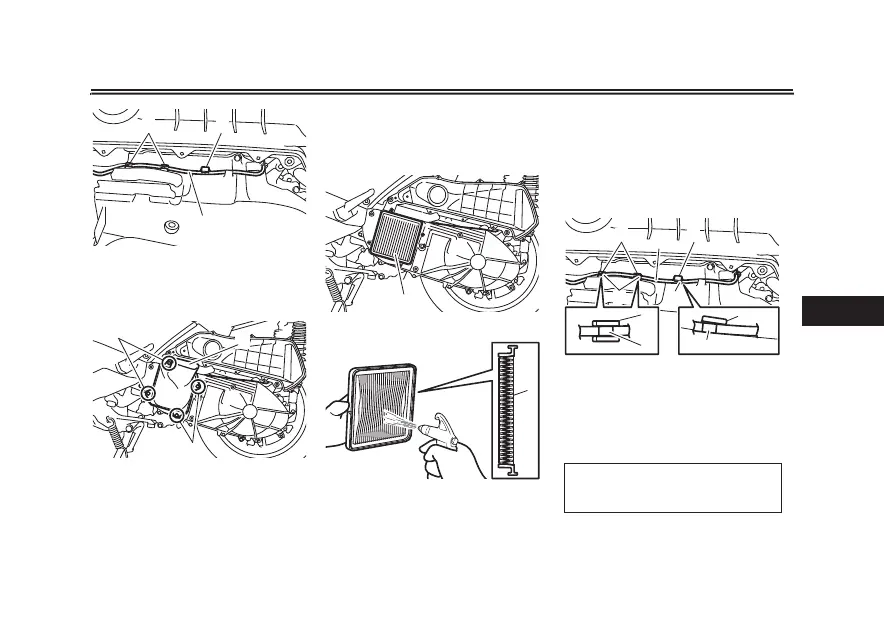

6. Remove the V-belt case air lter
cover by removing the bolts.
7. Remove the air lter element, and
then blow out the dirt with com-
pressed air from the clean side as
shown.
8. Check the V-belt case air lter ele-
ment for damage and replace it if
necessary.
9. Insert the element into the V-belt
case.
10. Install the V-belt case air lter cov-
er by installing the bolts.
11. Install the rear wheel sensor lead
into the holder at the white tape on
the lead as shown.
1. Rear wheel sensor lead
2. Lead holder
1. V-belt case air lter cover
2. Bolt
1
2 2
1
2
2
1. V-belt case air lter element
1. Clean side
1
1
12. Install the air lter case bolts, and
then tighten the bolts to the spec-
ied torque.
13. Install the V-belt case cover by in-
stalling the screws.
1. Rear wheel sensor lead
2. White tape
3. Lead holder
5JHIUFOJOHUPSRVF
Bolt:
10 N·m (1.0 kgf·m, 7.4 lb·ft)
