Yamaha XP500 2001 Service Manual

5-18
Order Job/Part Q’ty Remarks
1
2
3
4
5
6
7
8
9
10
11

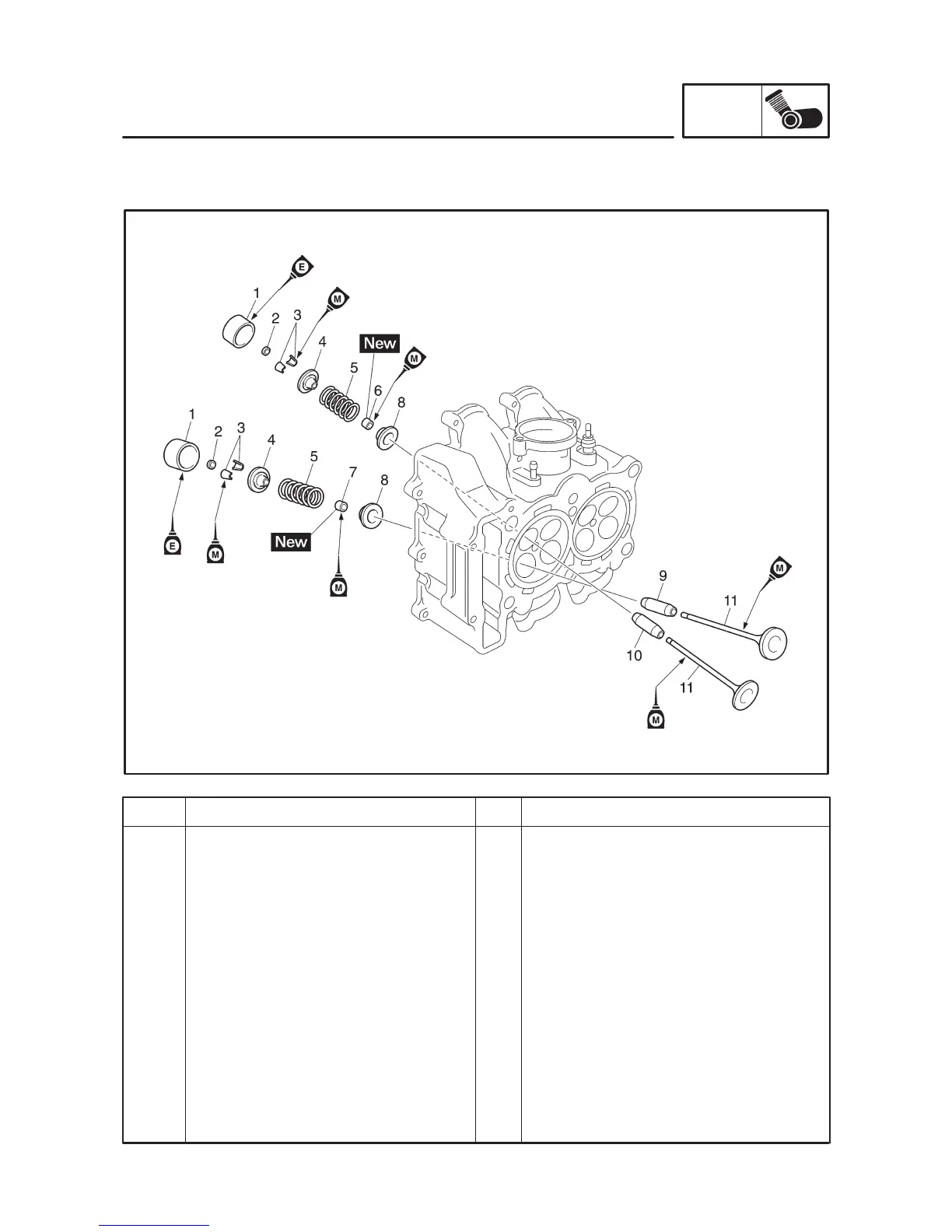

Removing the valves and valve
springs
Cylinder head
Valve lifter
Valve pad
Valve cotter
Valve retainer
Valve spring
Intake valve stem seal
Exhaust valve stem seal
Valve spring seat
Intake valve guide
Exhaust valve guide
Valve
8
8
16
8
8
4
4
8
4
4
8
Remove the parts in the order listed.
Refer to “CYLINDER HEAD”.
For installation, reverse the removal
procedure.
VALVES AND VALVE SPRINGS
ENG
VALVES AND VALVE SPRINGS

Yamaha XP500 2001 Specifications

General

Displacement	499 cc
Fuel System	Fuel injection
Ignition System	TCI
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-14
Rear Tire	150/70-13
Wheelbase	1, 590 mm
Bore x Stroke	66.0 mm x 73.0 mm
Transmission	Automatic
