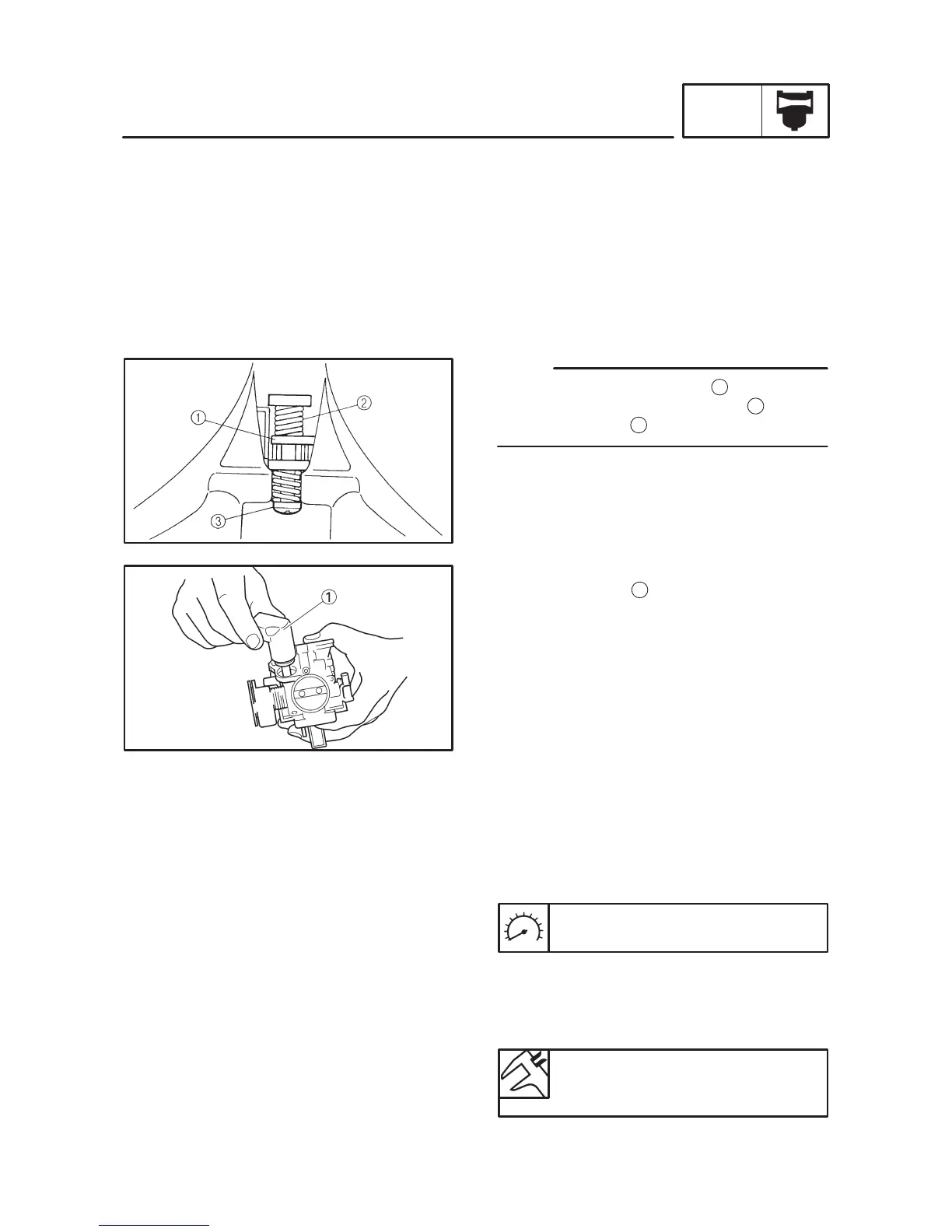

CARBURETORS

CARB

NOTE:

3. Install:

 pipe

 fuel feed pipes

 spring

 float chamber air vent hoses

 hose joint

 copper washer

 throttle stop screw

 Install the throttle valve lever

onto carbure-

tors #1, and #2 between the spring

and syn-

chronizing screw

4. Install:

 auto choke unit

EB600051

INSTALLING THE CARBURETORS

1. Adjust:

 carburetor synchronization

Refer to “SYNCHRONIZING THE CARBU-

RETORS” in chapter 3.

2. Adjust:

 engine idling speed

Engine idling speed

1,150  1,250 r/min

Refer to “ADJUSTING THE ENGINE IDLING

SPEED” in chapter 3.

3. Adjust:

 throttle cable free play

Throttle cable free play (at the

flange of the throttle grip)

3  5 mm

Refer to “ADJUSTING THE THROTTLE

CABLE FREE PLAY” in chapter 3.
