6-4
RADIATOR
COOL
63 Nm (6.3 mkg)
NOTE:
EAS00456
INSTALLING THE RADIATOR
1. Fill:
cooling system
(with the specified amount of the recom-
mended coolant)
Refer to “CHANGING THE COOLANT” in
chapter 3.
2. Check:
cooling system
Leaks Repair or replace any faulty part.
3. Measure:
radiator cap opening pressure
Below the specified pressure Replace the
radiator cap.
Refer to “CHECKING THE RADIATOR”.
EAS00458
CHECKING THE OIL COOLER
1. Check:
oil cooler
Cracks/damage Replace.
2. Check:
oil cooler inlet hose
oil cooler outlet hose
Cracks/damage/wear Replace.
EAS00459
INSTALLING THE OIL COOLER
1. Clean:
mating surfaces of the oil cooler and the
crankcase
(with a cloth dampened with lacquer thinner)

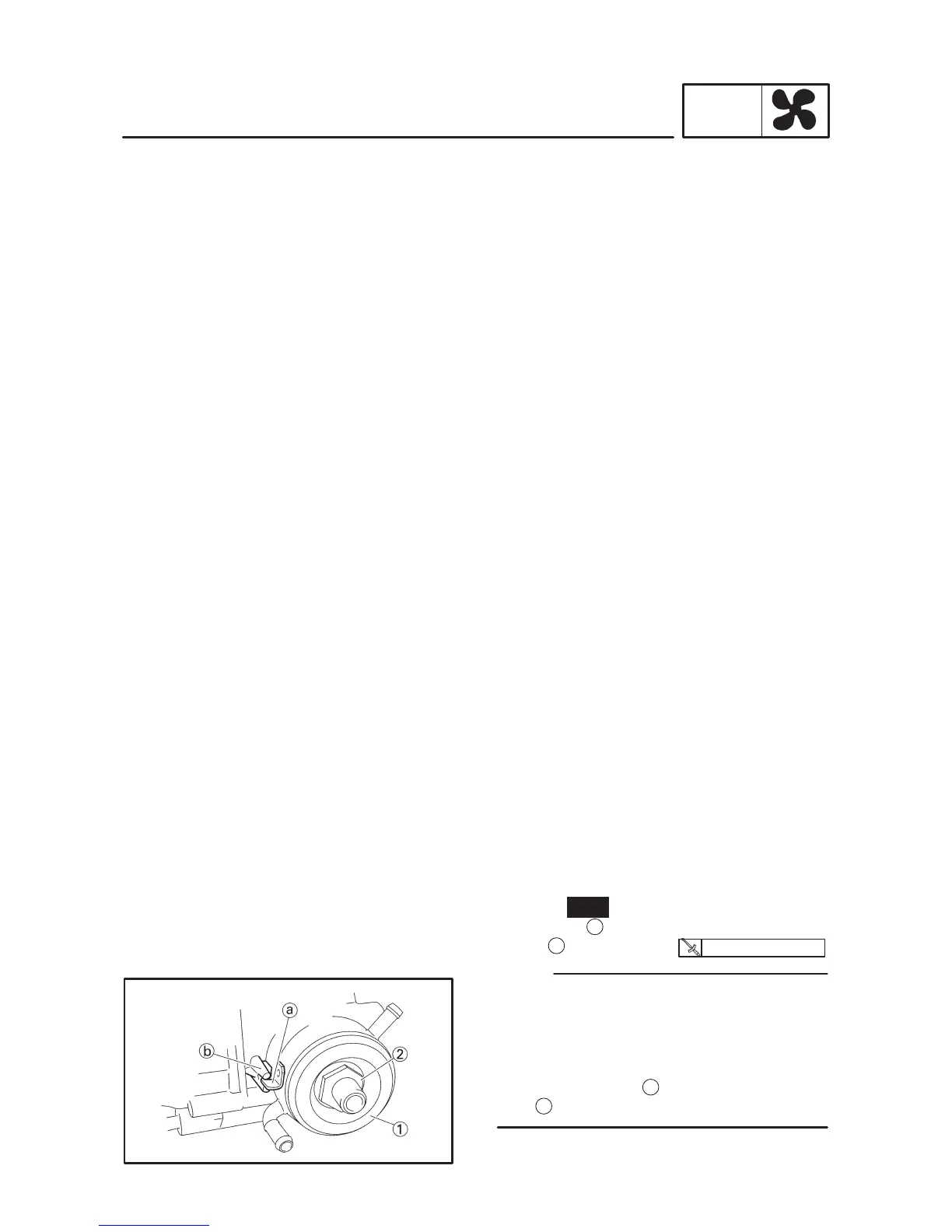

2. Install:
O-ring
New
oil cooler
1
bolt
2
Before installing the oil cooler, lubricate the oil
cooler bolt and O-ring with a thin coat of engine
oil.
Make sure that the O-ring is positioned proper-
ly.
Align the projection
a
on the oil cooler with the
slot
b
in the crankcase.
To Next Page
