Yamaha XT225S - Removing and Installing the Cowling and Panels

PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
2
3
4
5
6
7
8
9
EAU18720

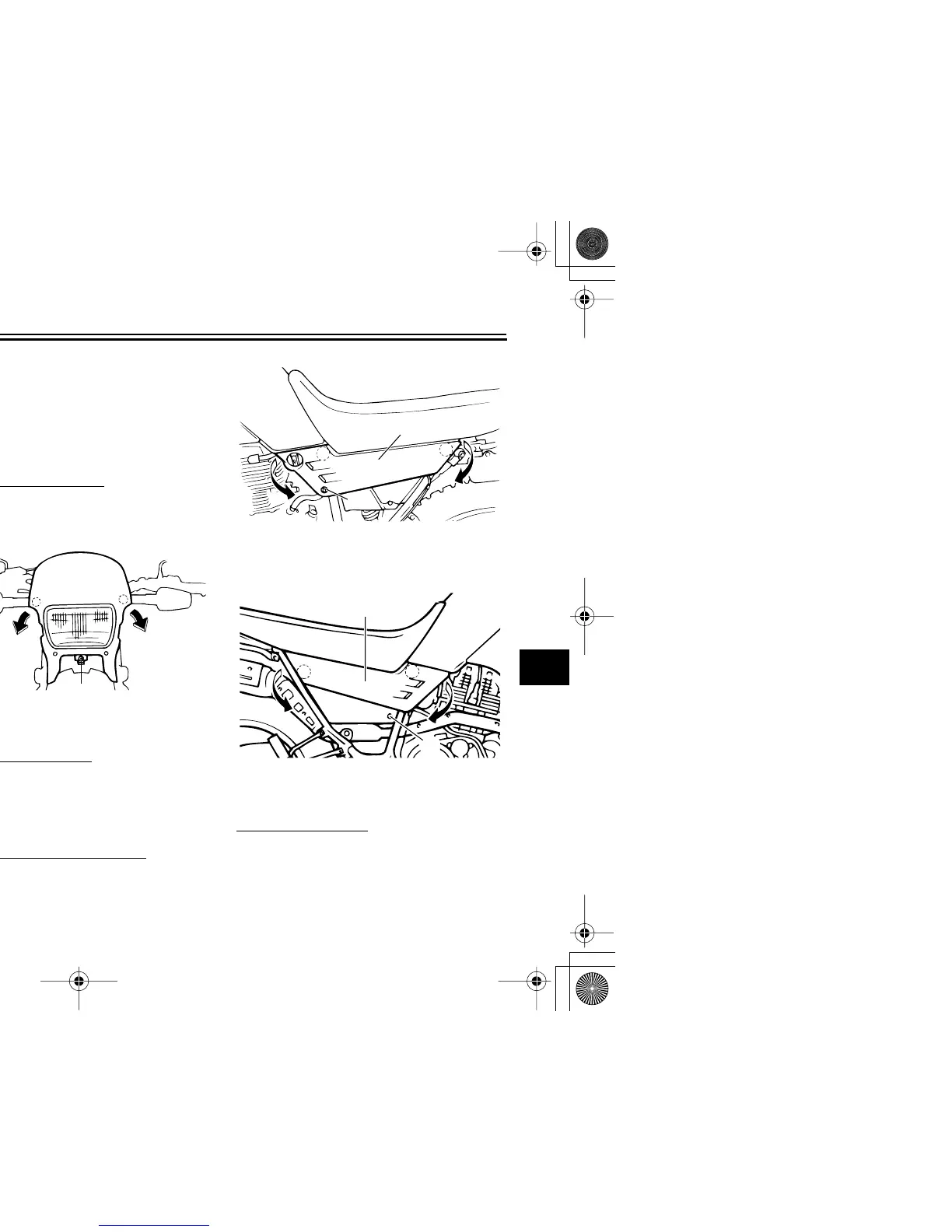

Removing and installing the
cowling and panels
The cowling and panels shown above
need to be removed to perform some of
the maintenance jobs described in this
chapter. Refer to this section each time
the cowling or a panel needs to be re-
moved and installed.
EAU18810
Cowling A
To remove the cowling
Remove the screw, and then pull the
cowling off as shown.
To install the cowling
Place the cowling in the original posi-
tion, and then install the screw.
EAU19291
Panels A and B
To remove one of the panels
Remove the screw, and then pull the
panel off as shown.
To install the panel
Place the panel in the original position,
and then install the screw.
1. Cowling A
2. Panel A
1. Panel B
1
2
1
1. Screw
1
1. Panel A
2. Screw
1. Panel B
2. Screw
1
2
1
2
