PERIODIC MAINTENANCE AND MINOR REPAIR
6-39
2
3
4
5
6
7
8
9
8. Install the engine guard by install-
ing the bolt.
EAU25080
Rear wheel
EAU25470
To remove the rear wheel
WARNING
EWA10820
●
It is advisable to have a Yamaha
dealer service the wheel.
●
Securely support the motorcy-
cle so that there is no danger of
it falling over.
1. Remove the engine guard by re-
moving the bolt.
2. Remove the brake pedal free play
adjusting nut, and then disconnect
the brake rod from the brake cam-
shaft lever.
3. Loosen the axle nut.
4. Turn the drive chain adjusting
plate on each side of the swingarm
fully in direction (a).
5. Lift the rear wheel off the ground
according to the procedure on
page 6-37.
6. Remove the axle nut.
7. Push the wheel forward, and then
remove the drive chain from the
rear sprocket.

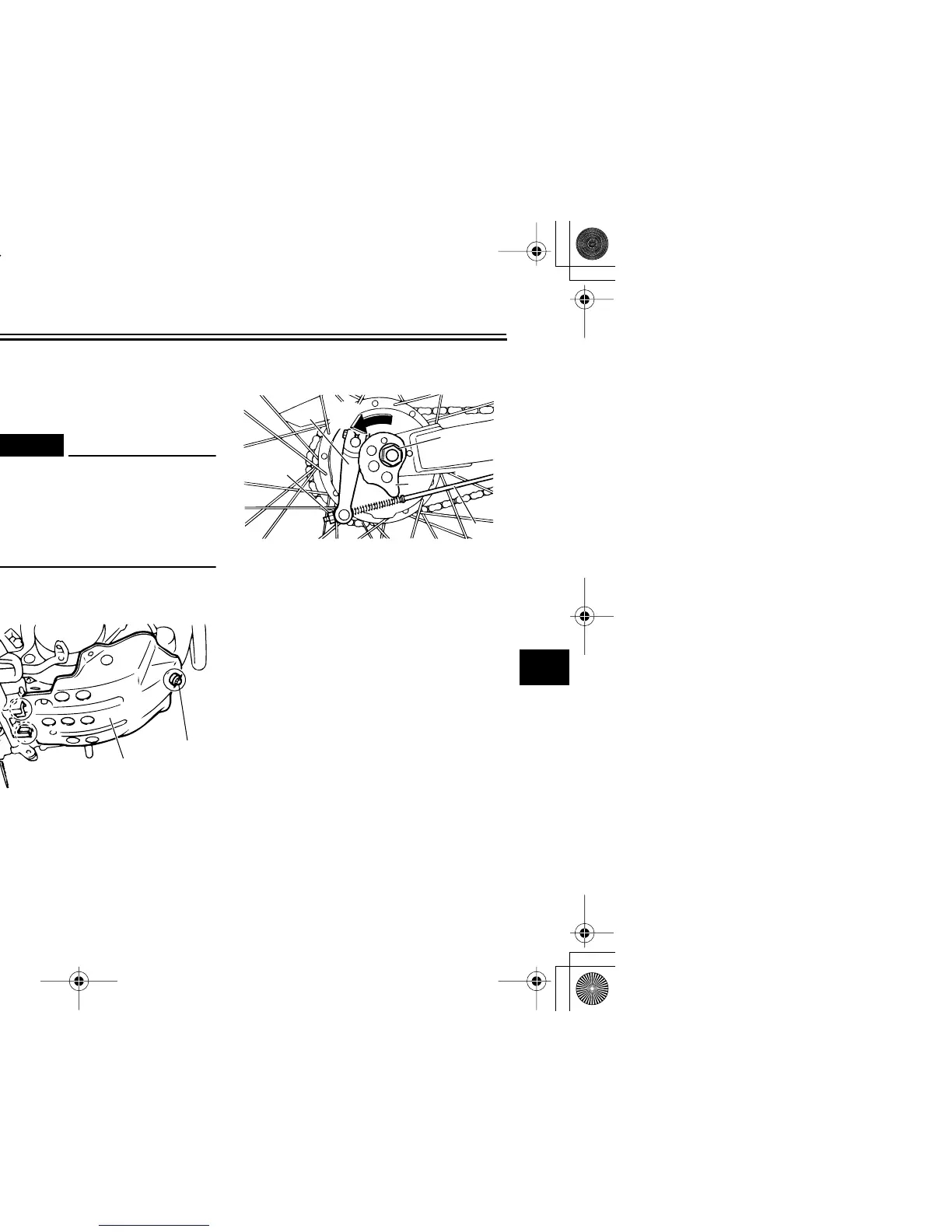

1. Engine guard
2. Bolt
2
1
1. Brake pedal free play adjusting nut
2. Brake rod
3. Brake camshaft lever
4. Axle nut
5. Chain adjusting plate
To Next Page
