side facing forward and with the “UP”
mark pointing as shown.
CAUTION:
ECA10480
●
Make sure that the air filter ele-
ment is properly seated in the
air filter case.
●
The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
piston(s) and/or cylinder(s) may
become excessively worn.
8. Install the air filter case cover by in-
stalling the screws.
9. Install the panel.
EAU21232
Cleaning the spark arrester
The spark arrester should be cleaned
at the intervals specified in the Periodic
maintenance and lubrication chart.
WARNING
EWA10980
●
Always let the exhaust system
cool prior to touching exhaust
components.
●
Do not start the engine when
cleaning the exhaust system.
NOTE:
Make sure to select a well-ventilated
area free of combustible materials to
clean the spark arrester.
1. Remove the tailpipe by removing
the screw, and then pulling it out of
the muffler.
2. Tap the tailpipe lightly, and then
use a wire brush to remove any
carbon deposits from the spark ar-
rester portion of the tailpipe.

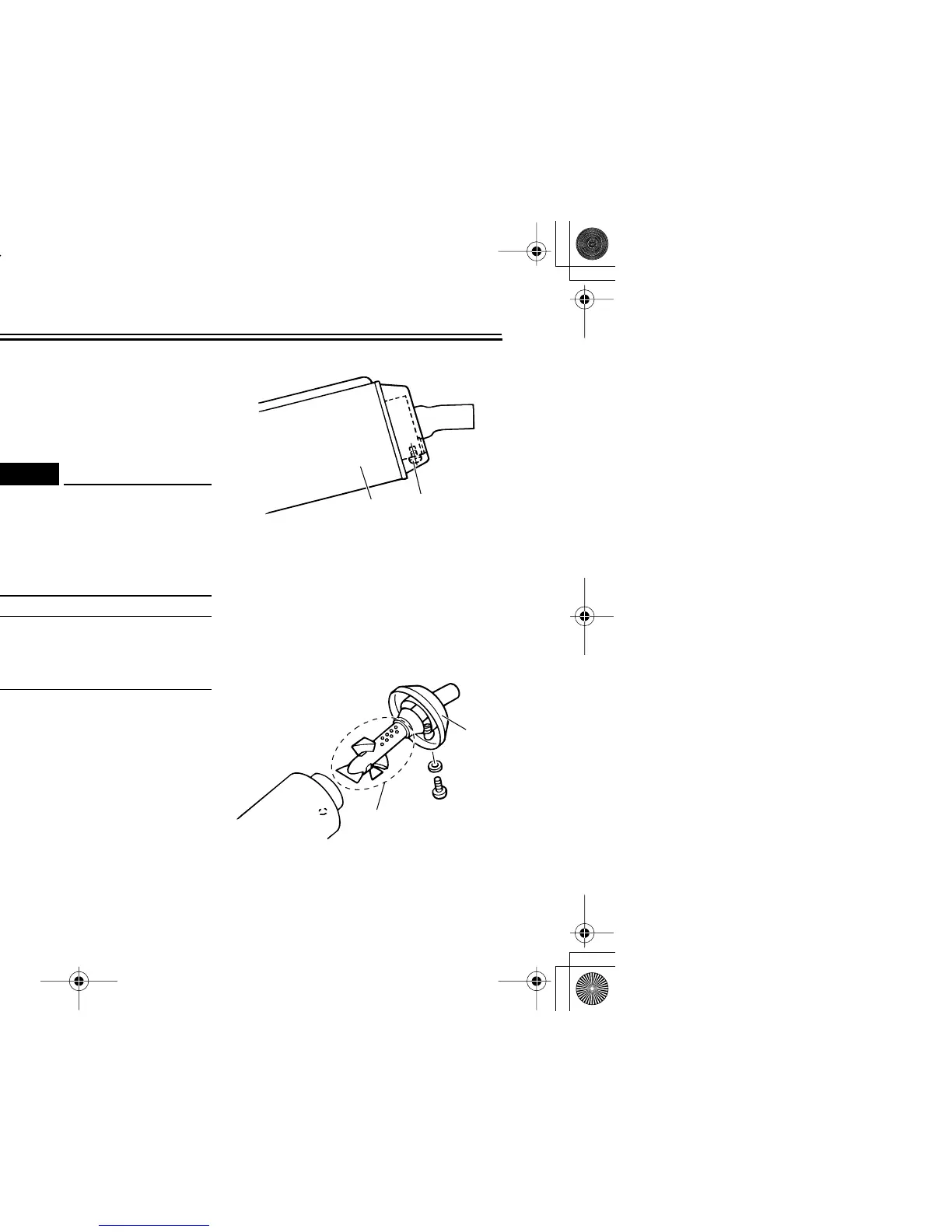

1. “UP” mark
1
1. Muffler
2. Screw
1. Tailpipe
2. Spark arrester
