PERIODIC MAINTENANCE AND MINOR REPAIR
6-34
1
2
3
4
5
6
7
8
9
amperage.
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire.
3. Turn the key to “ON” and turn on
the electrical circuits to check if the
devices operate.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU23811
Replacing the headlight bulb
This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.
1. Remove cowling A. (See
page 6-9.)
2. Remove the headlight unit by re-
moving the bolts.
3. Disconnect the headlight coupler,
and then remove the headlight
bulb cover.
4. Remove the headlight bulb holder
by turning it counterclockwise, and
then remove the defective bulb.
Specified fuse:
20.0 A

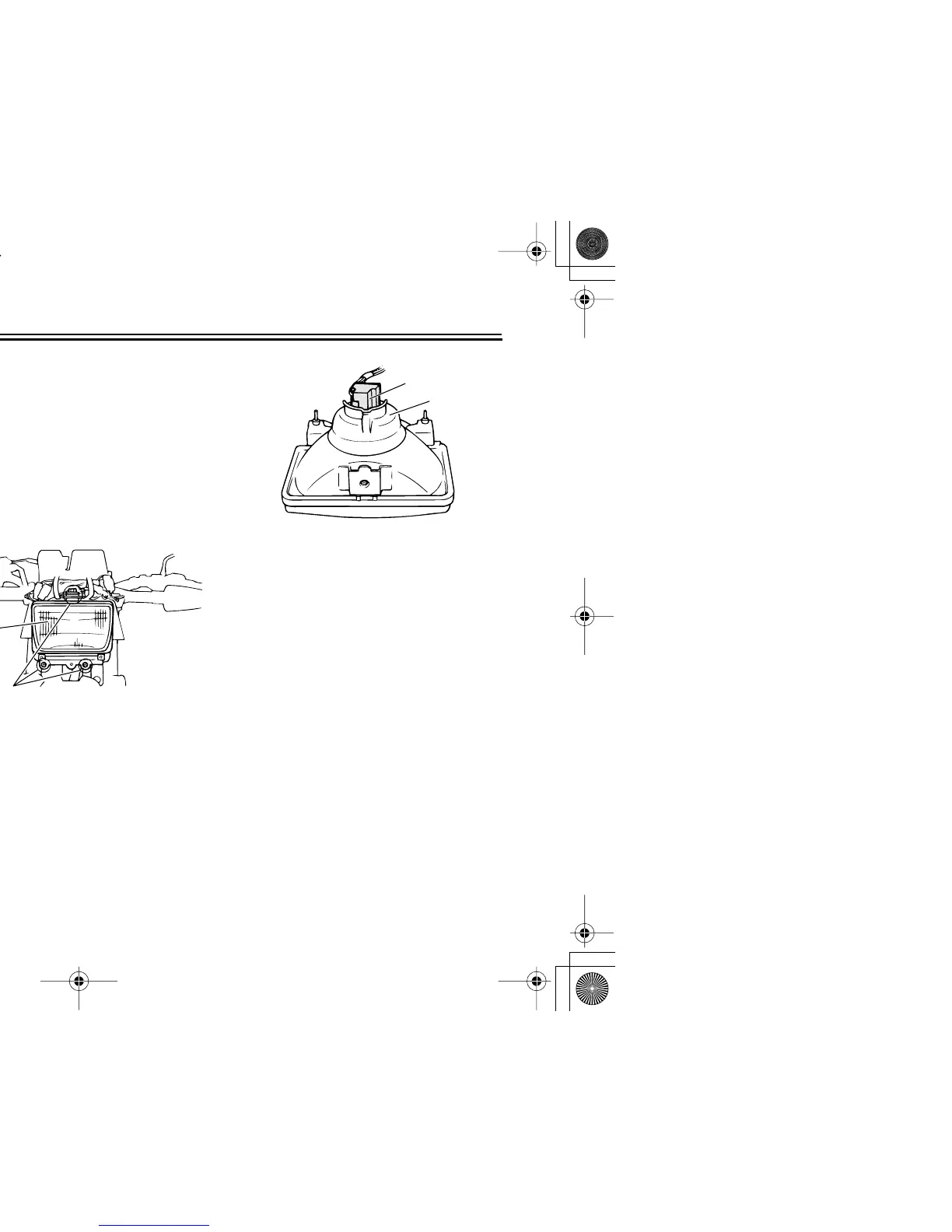

1. Headlight unit
2. Bolt
1
2
1. Headlight coupler
2. Headlight bulb cover
