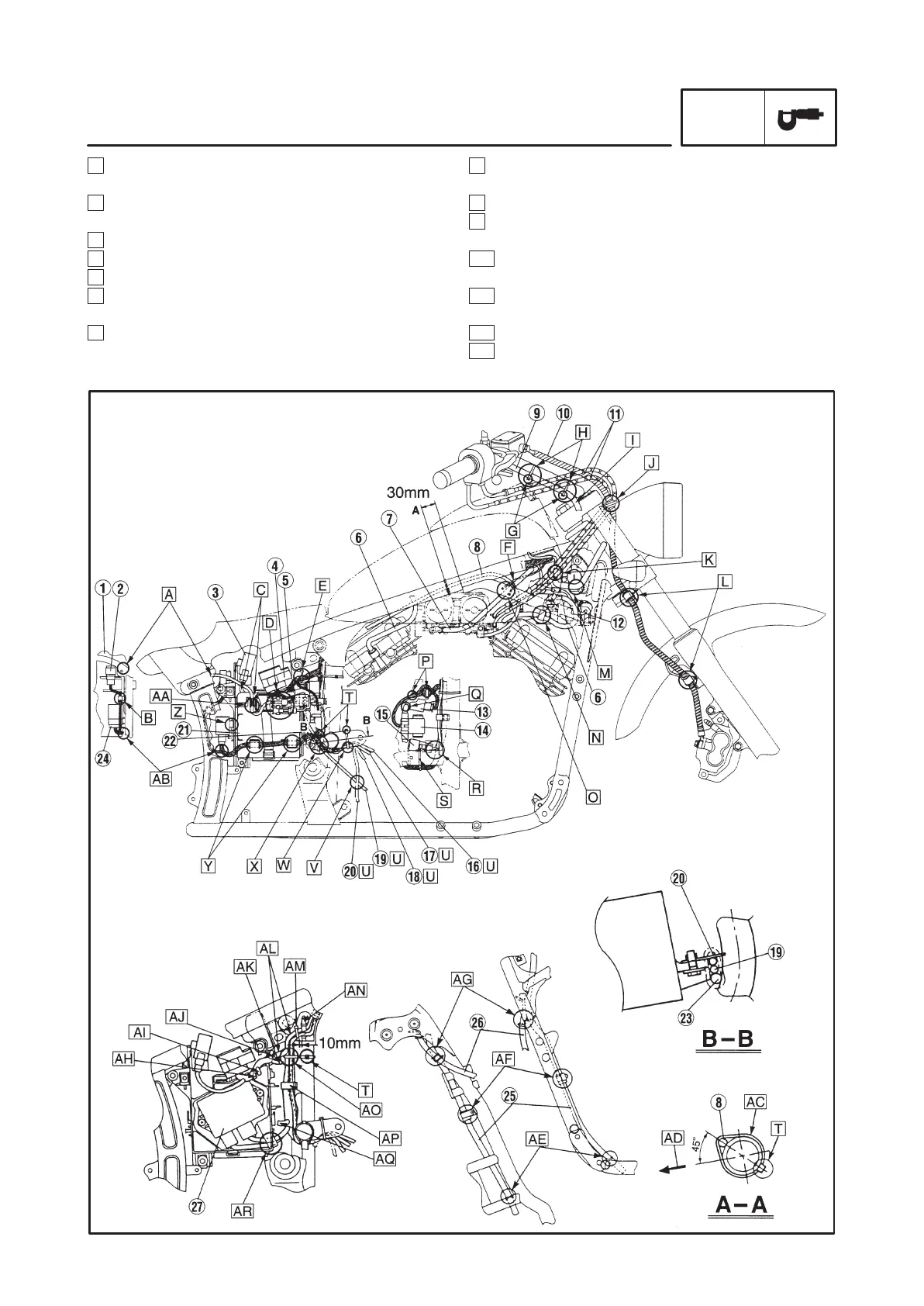

X Fasten the battery negative (–) lead, starter motor
lead and wire harness with a plastic locking tie.
Y Fasten the wire harness with a clamp.
Z The starting safety relay must be fixed to the
battery box after connecting the wire harness.
AA Fasten the battery negative (–) lead and
tail/brake light lead with a clamp.
AB Pass the wire harness between the frame and
battery box.
AC Fasten the starter cable with a plastic locking tie.
AD Inside the motorcycle.
Q Fasten the battery positive (+) lead with a battery
box clamp.
R The carburetor heater relay should not touch the
wire harness.
S Fasten the wire harness with a plastic locking tie.
T Place the end of the plastic locking tie as shown.
U From the engine.
V Pass the starter motor lead over the battery
negative (–) lead.
W Fasten the pickup coil lead, A.C. magneto lead,
neutral switch lead and starter motor lead with a
plastic locking tie.
CABLE ROUTING
SPEC
To Next Page
