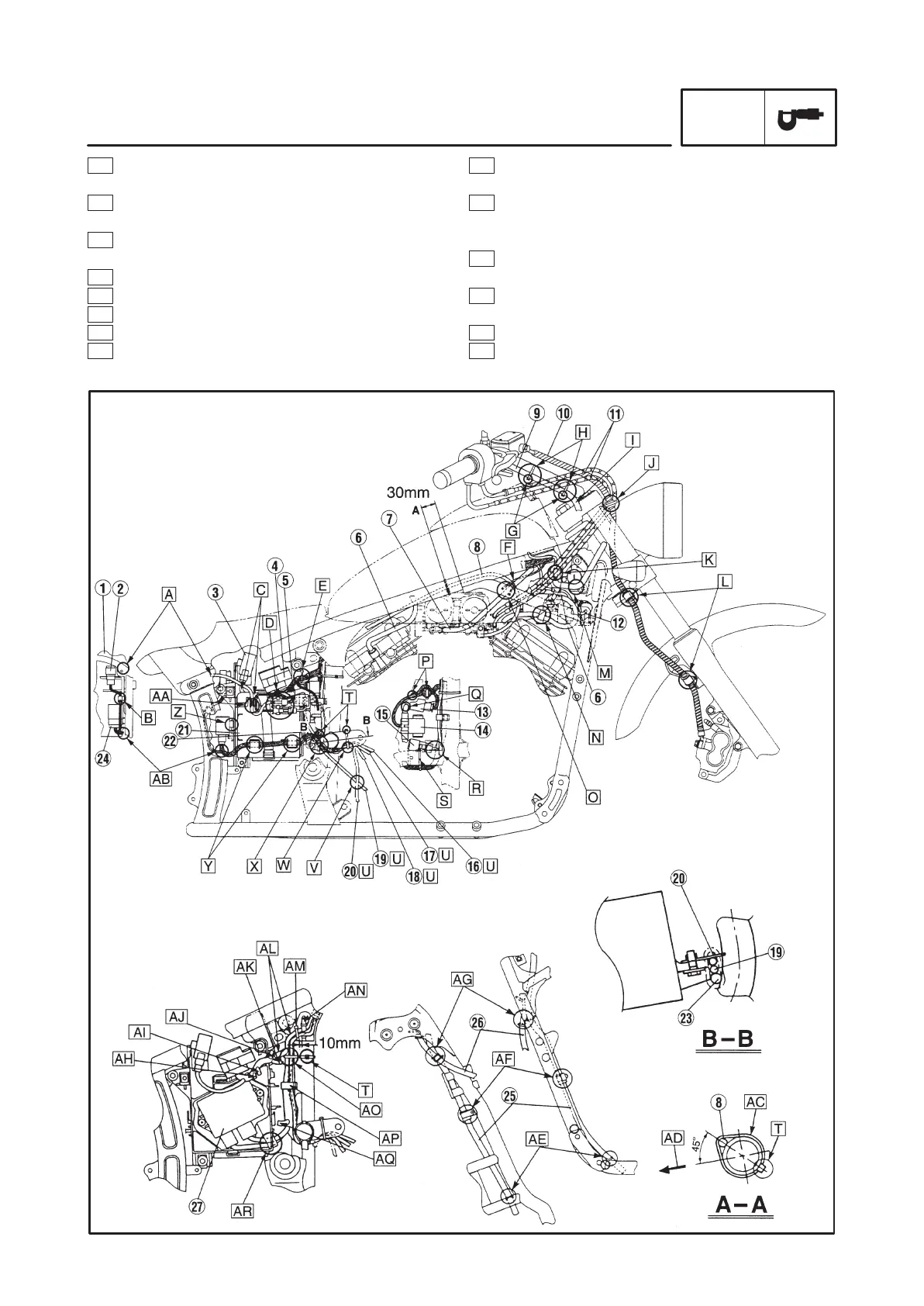

Yamaha XVS650A - CABLE ROUTING; Cable Routing Instructions Part 6

–14–
AM Fasten the wire harness and leads with a plastic
locking tie.
AN Pass the plastic band through the frame hole.
Fasten the wire harness with a plastic band at the
point where the tape is located.
AO Fasten the wire harness and leads with a plastic
locking tie.
AP Fasten the wire harness and leads with a metal
clamp.
AQ To the carburetor heater relay.
AR Pass the ignitor unit leads through the battery box
hole.
AE Pass the fuel tank breather hose through the
holder.
AF Fasten the fuel tank breather hose with a metal
clamp.
AG Pass the speedometer cable through the front
side guide.
AH To the battery negative (–) lead.
AI To the rear fender.
AJ To the flasher light relay.
AK To the starter relay.
AL The wire harness and leads should not touch the
rear shock absorber.
CABLE ROUTING
SPEC
