–15–

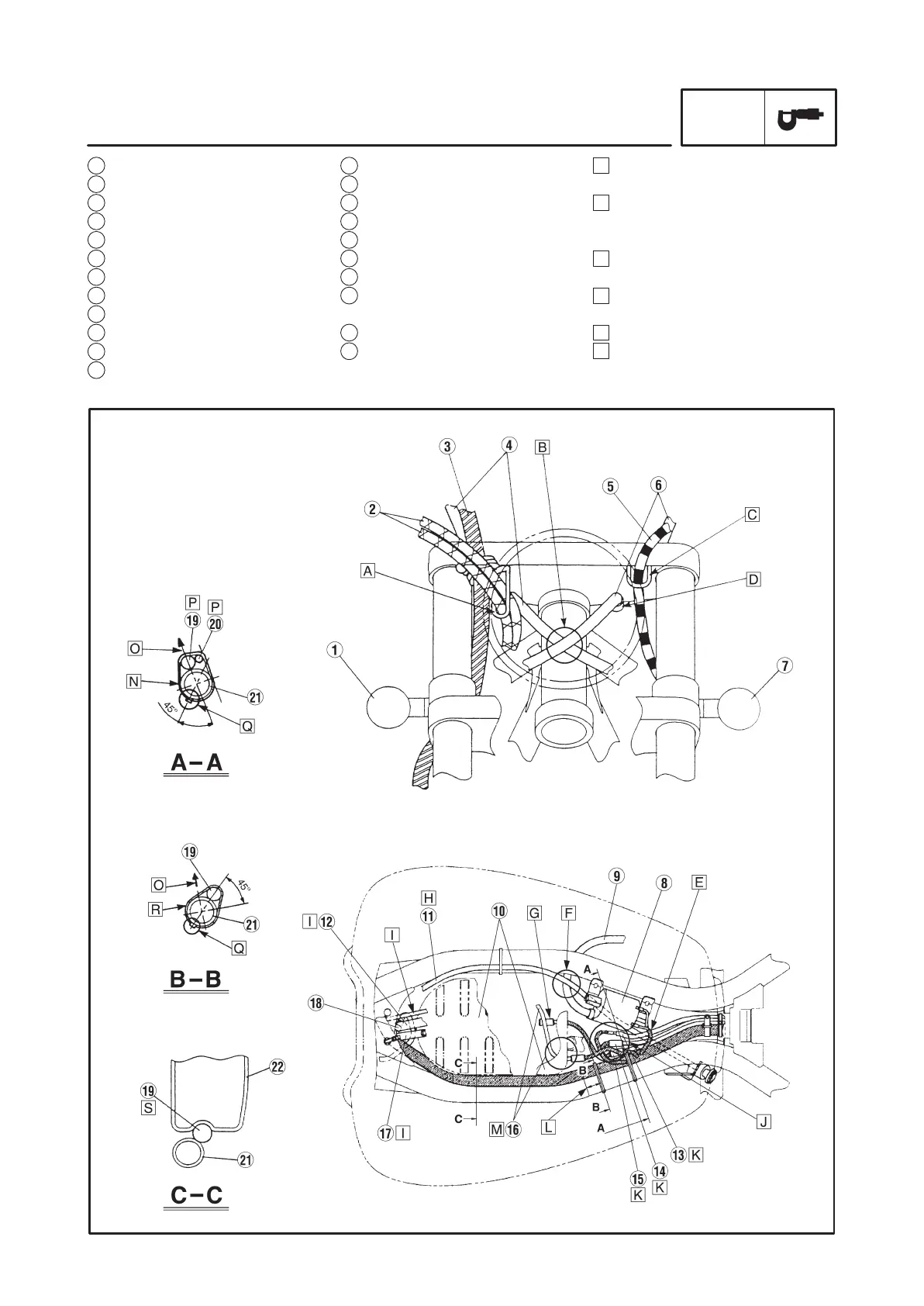

A Pass the throttle cables through
the cable guide.
B Pass the left handlebar switch
lead over the right handlebar
switch lead.
C Pass the clutch cable through
the cable guide.
D Fasten the handlebar switch
leads with a plastic band.
E To the ignition coil.
F Pass the starter cable between
the ignition coil and spark plug
lead.
13 Neutral switch lead
14 Pickup coil lead
15 A.C. magneto lead
16 Thermo switch lead
17 Fuel tank breather hose
18 Rectifier/regulator coupler
19 Wire harness
20 Throttle position sensor (TPS)
lead
21 Frame
22 Air filter case
1 Front flasher light (right)
2 Throttle cables
3 Brake hose
4 Right handlebar switch lead
5 Clutch cable
6 Left handlebar switch lead
7 Front flasher light (left)
8 Ignition coil
9 Spark plug lead
10 Silencer
11 Starter cable
12 Speedometer cable
CABLE ROUTING
SPEC
