4-4
ENG
RADIATOR

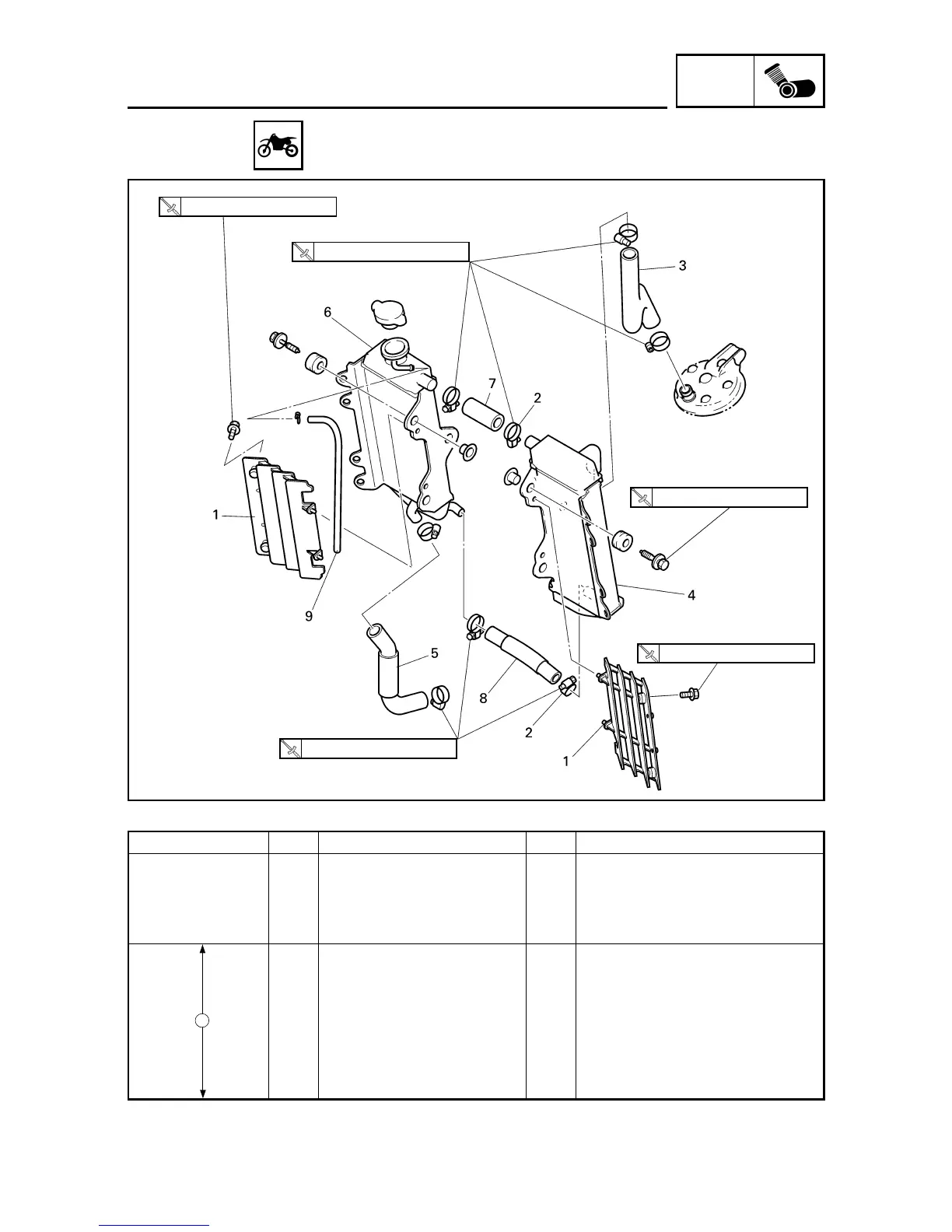

Extent of removal Order Part name Q’ty Remarks
RADIATOR REMOVAL
Preparation for Drain the coolant.
Refer to “COOLANT REPLACEMENT“
removal section in the CHAPTER 3.
Seat and fuel tank Refer to “SEAT, FUEL TANK AND
SIDE COVERS” section.
1 Panel 2
2 Clamp (radiator hose 1, 3) 2 Only loosening.
3 Radiator hose 2 1
4 Radiator (left) 1
5 Radiator hose 4 1
6 Radiator (right) 1
7 Radiator hose 1 1
8 Radiator hose 3 1
9 Radiator breather hose 1
EC450001
RADIATOR
Extent of removal: 1
Radiator removal
1
10 Nm (1.0 m•kg, 7.2 ft•lb)
1 Nm (0.1 m•kg, 0.7 ft•lb)
1 Nm (0.1 m•kg, 0.7 ft•lb)
10 Nm (1.0 m•kg, 7.2 ft•lb)
10 Nm (1.0 m•kg, 7.2 ft•lb)
