5-41
CHAS

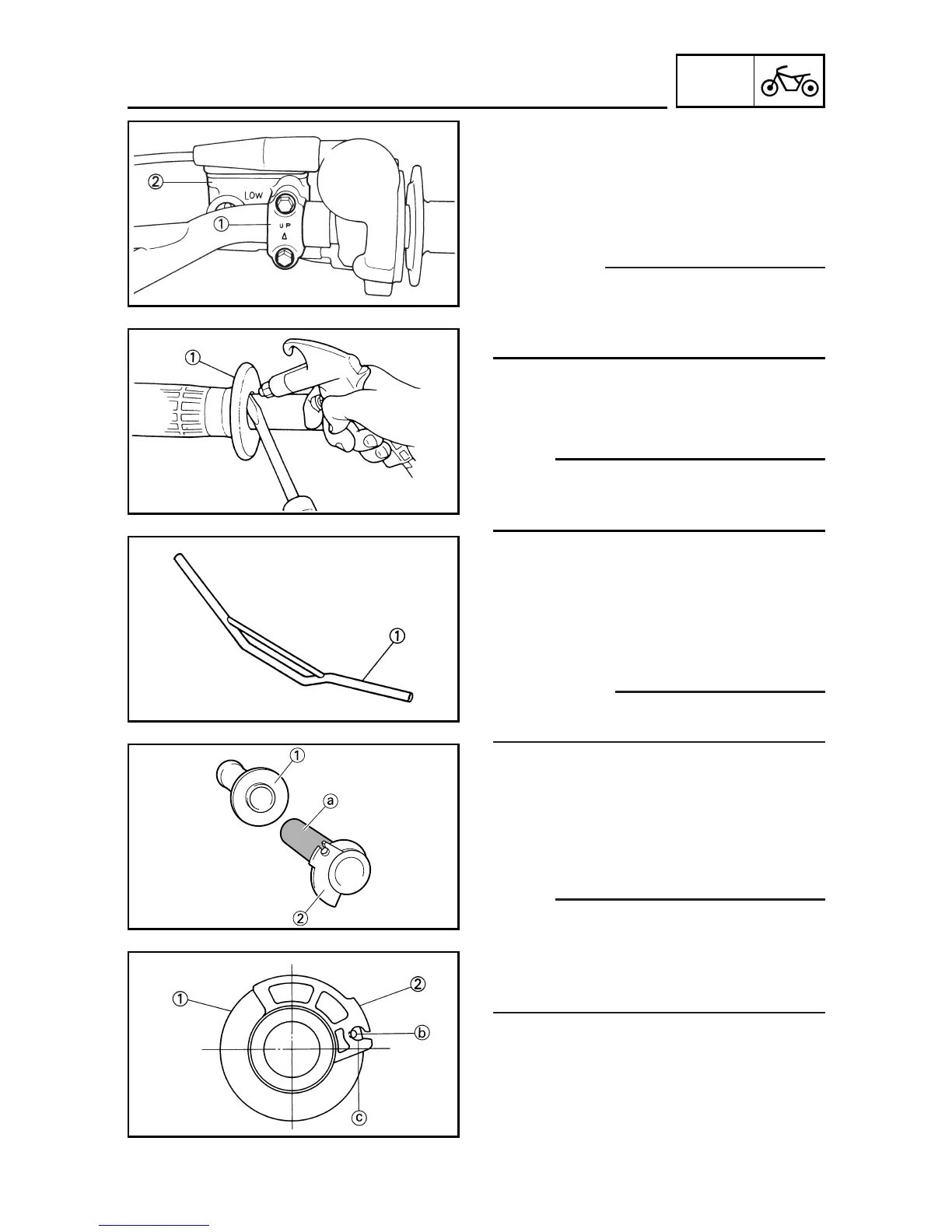

HANDLEBAR
EC5B3000
REMOVAL POINTS
EC5B3100
Master cylinder
1. Remove:
9
Master cylinder bracket 1
9
Master cylinder 2
cC
9
Do not let the master cylinder hang on the
brake hose.
9
Keep the master cylinder cap side horizontal
to prevent air from coming in.
EC5B3200
Grip
1. Remove:
9
Grip 1
NOTE:
Blow in air between the handlebar or tube guide
and the grip. Then remove the grip which has
become loose.
EC5B4000
INSPECTION
EC5B4100
Handlebar
1. Inspect:
9
Handlebar 1
Bends/Cracks /Damage→Replace.
w
Do not attempt to straighten a bent handlebar
as this may dangerously weaken the handlebar.
EC5B5000
ASSEMBLY AND INSTALLATION
EC5B5100
Throttle assembly
1. Install
9
Grip (right) 1
Apply the adhesive on the tube guide 2.
NOTE:
9
Before applying the adhesive, wipe off grease
or oil on the tube guide surface a with a lac-
quer thinner.
9
Align the mating mark b on the grip (right) with
the slot c in the tube guide.
To Next Page
