6-1
ELEC

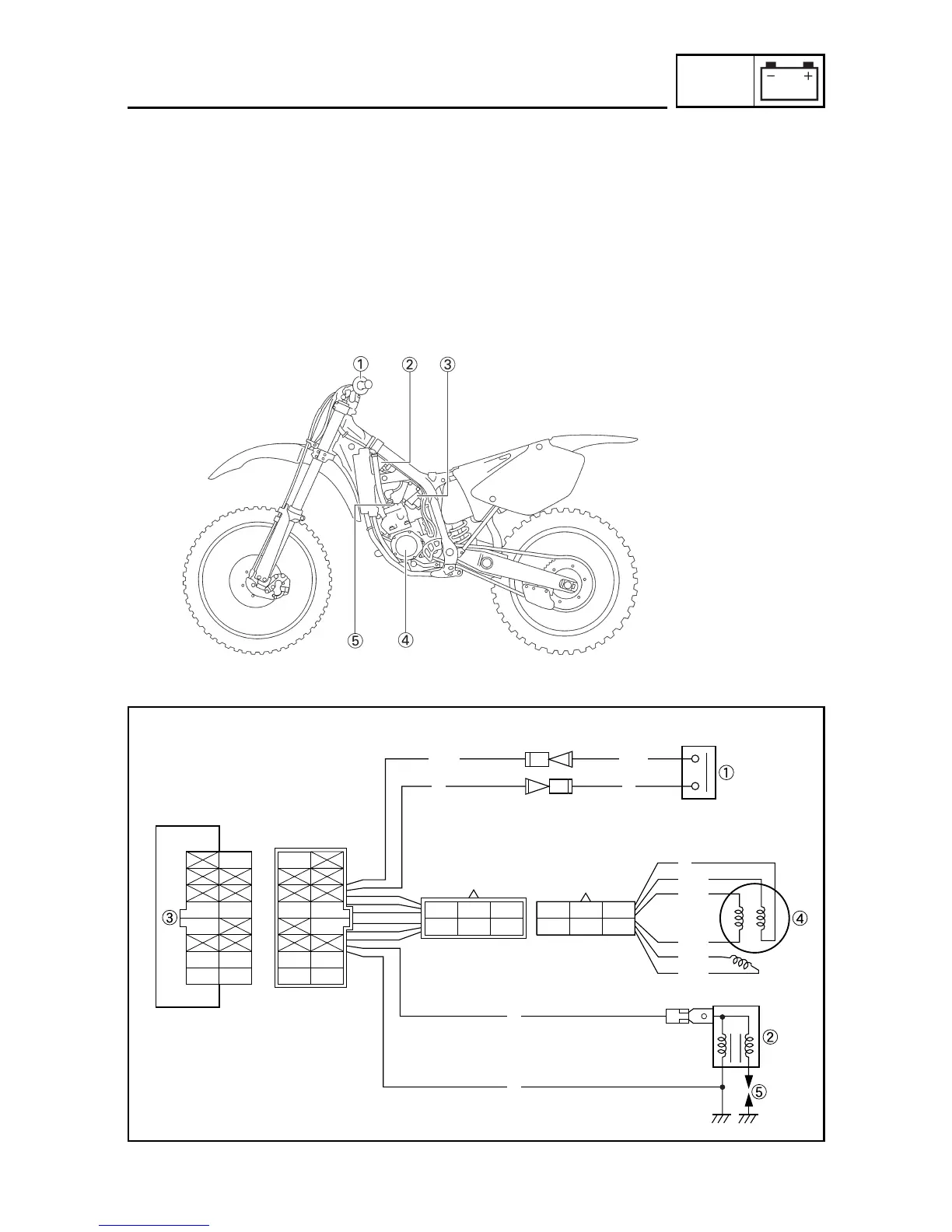

ELECTRICAL COMPONENTS AND WIRING DIAGRAM
EC600000
ELECTRICAL
EC610000
ELECTRICAL COMPONENTS AND WIRING DIAGRAM
EC611000
ELECTRICAL COMPONENTS
1 “ENGINE STOP” button
2 Ignition coil
3 CDI unit
4 CDI magneto
5 Spark plug
EC612000
WIRING DIAGRAM
COLOR CODE
B...................Black
O ..................Orange
B/R ...............Brack/Red
B/W ..............Black/White
G/L ..............Green/Blue
G/W..............Green/White
W/L...............White/Blue
W/R ..............White/Red
G/W
G/W
B/W
B
B/W
B
B
G/L
B/R
G/W
W/R
W/L
B
O
W/L
W/R
B
W/R W/L
B
B/R
G/L G/L B/R
B/WO
OB/W
G/L
B
B/R
G/W
W/L
W/R
W/L
W/R
B/R
G/W
G/L
B
