4-57
ENG

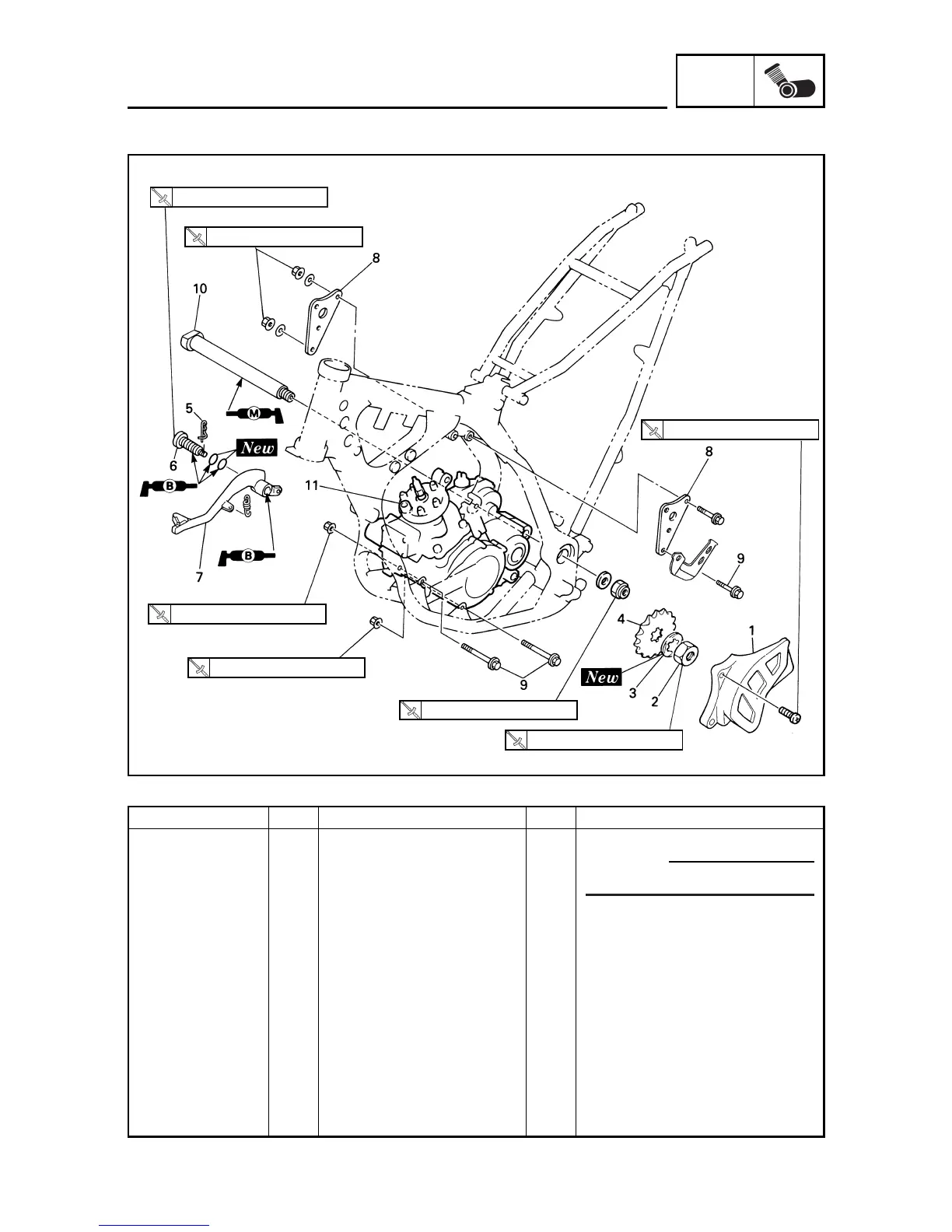

ENGINE REMOVAL
Extent of removal Order Part name Q’ty Remarks
ENGINE REMOVAL
Preparation for
Hold the machine by placing the
removal
suitable stand under the engine.
Seat and fuel tank
Refer to “SEAT, FUEL TANK AND
SIDE COVERS” section.
Carburetor Refer to “CARBURETOR AND REED
VALVE” section.
Exhaust pipe and silencer Refer to “EXHAUST PIPE AND
SILENCER” section.
Clutch cable Disconnect at engine side.
Radiator hose 2 Disconnect at cylinder head side.
Radiator hose 4 Disconnect at water pump side.
Bolt (radiator) Refer to “RADIATOR” section.
Radiator hose 3 Disconnect at right side radiator,
then shift the radiators forward.
Spark plug cap
Disconnect the CDI magneto lead.
EC4M0000
ENGINE REMOVAL
w
Support the machine securely so there is no dan-
ger of it falling over.
26 Nm (2.6 m•kg, 19 ft•lb)
34 Nm (3.4 m•kg, 24 ft•lb)
69 Nm (6.9 m•kg, 50 ft•lb)
69 Nm (6.9 m•kg, 50 ft•lb)
85 Nm (8.5 m•kg, 61 ft•lb)
65 Nm (6.5 m•kg, 47 ft•lb)
5 Nm (0.5 m•kg, 3.6 ft•lb)
To Next Page
