5-23
CHAS

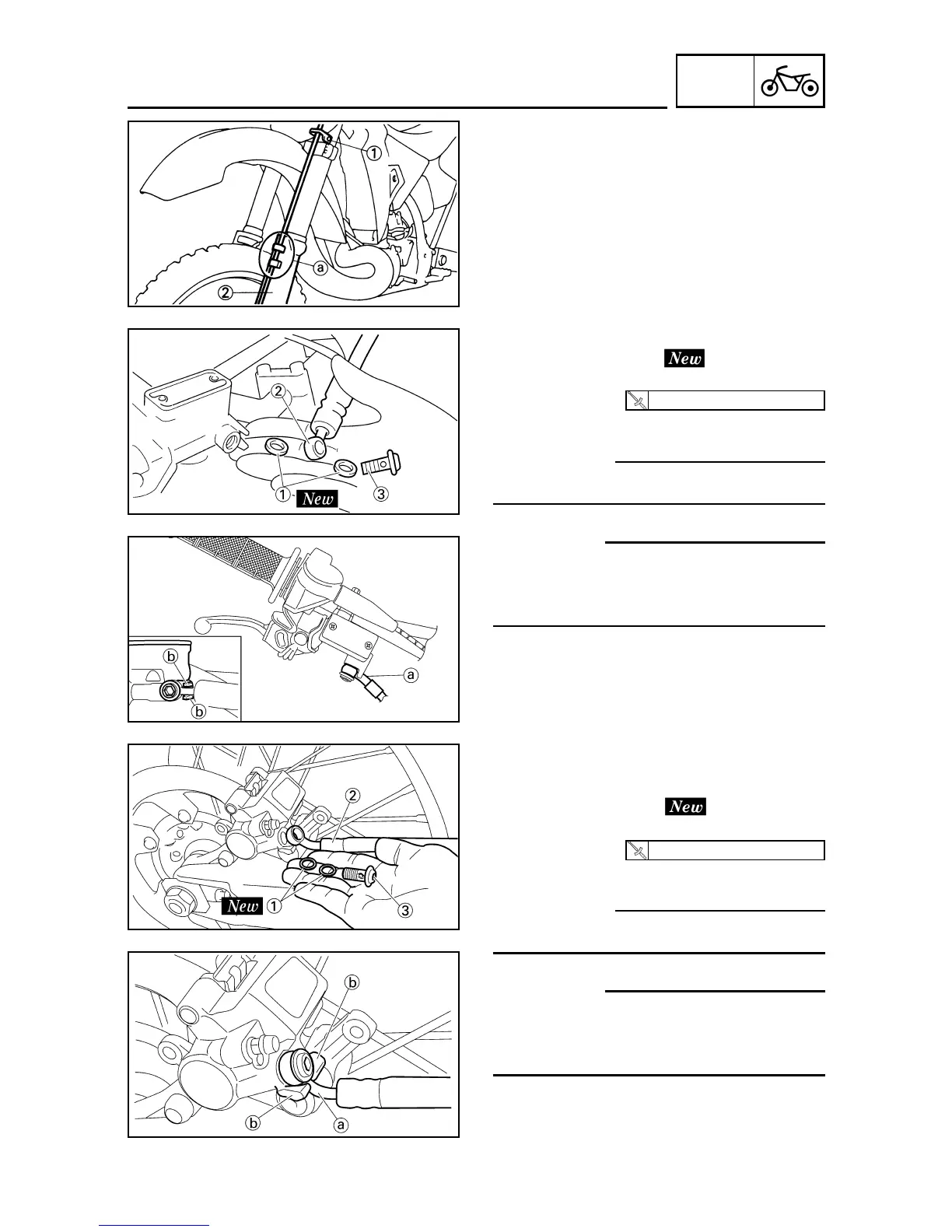

FRONT BRAKE AND REAR BRAKE
3. Pass the brake hose through the cable
guide 1, then through the guide a on the
protector 2.
4. Install:
9
Copper washer 1
9
Brake hose 2
9
Union bolt 3
w
Always use new copper washers.
cC
Install the brake hose so that its pipe por-
tion
aa
directs as shown and lightly touch-
es the projection
bb
on the master cylinder.
30 Nm (3.0 m•kg, 22 ft•lb)
EC5A5502
Rear brake hose
1. Install:
9
Copper washer 1
9
Brake hose 2
9
Union bolt 3
w
Always use new copper washers.
cC
Install the brake hose so that its pipe por-
tion
aa
directs as shown and lightly touch-
es the projection
bb
on the caliper.
30 Nm (3.0 m•kg, 22 ft•lb)
To Next Page
