4-7
CARBURETOR AND REED VALVE
ENG
EC460000

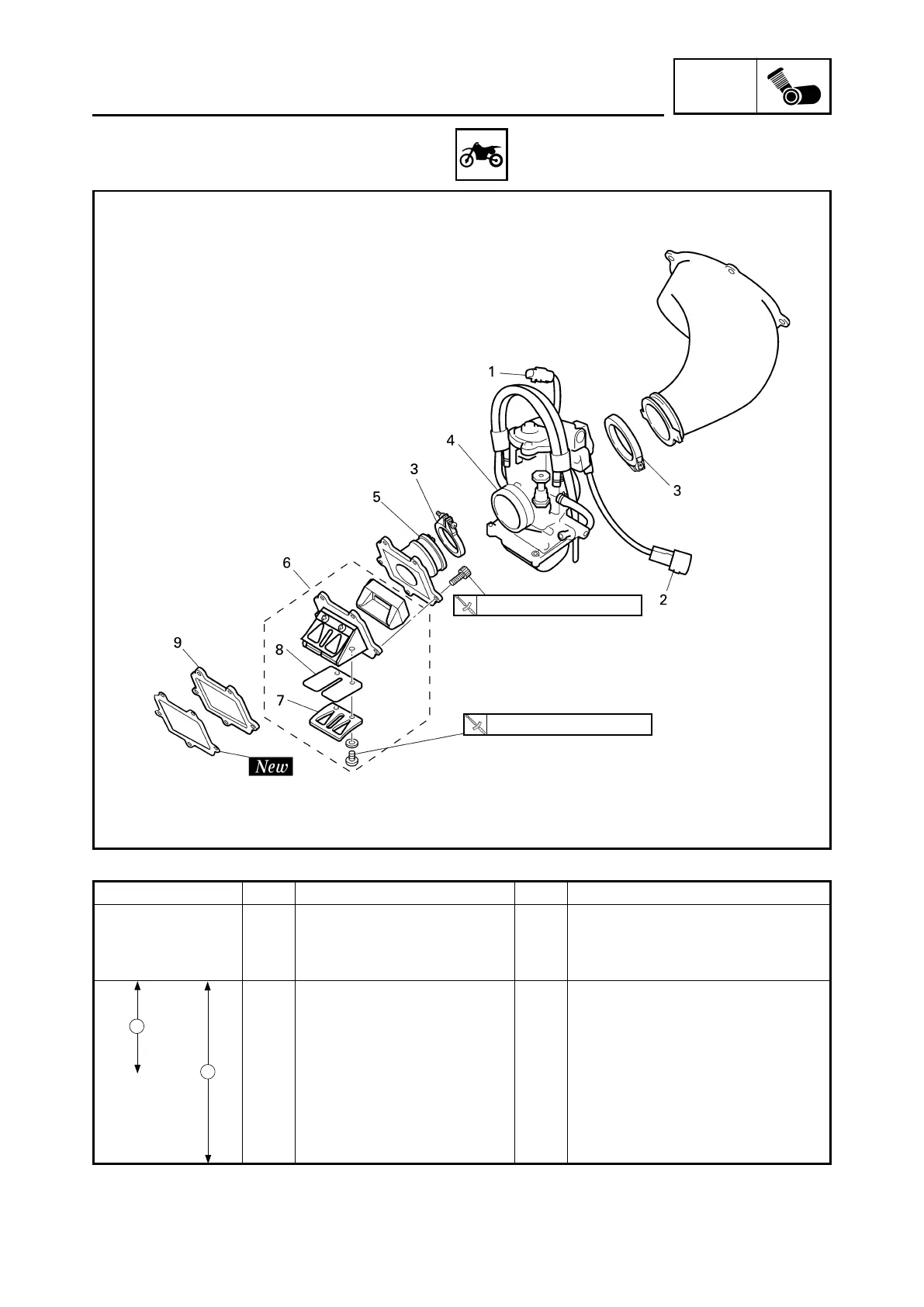

CARBURETOR AND REED VALVE
Extent of removal Order Part name Q’ty Remarks
CARBURETOR AND
REED VALVE REMOVAL
Preparation for Fuel tank Refer to “SEAT, FUEL TANK AND
removal SIDE COVERS” section.
1 Solenoid valve lead 1 Disconnect the solenoid valve lead.
2 TPS (throttle position sensor) 1 Disconnect the TPS
lead (throttle position sensor) lead.
3 Clamp (carburetor joint) 2
Loosen the screws (carburetor joint).
4 Carburetor 1
5 Carburetor joint 1
6 Reed valve assembly 1
7 Stopper (reed valve) 2
8 Reed valve 2
9 Plate (reed valve) 1
1
Extent of removal: 1
Carburetor removal
2
Reed valve removal
10 Nm (1.0 m•kg, 7.2 ft•lb)
1 Nm (0.1 m•kg, 0.7 ft•lb)
2
1P8-9-32-4a 4/10/06 1:53 PM Page 14
