5-63
CHAS
REAR SHOCK ABSORBER

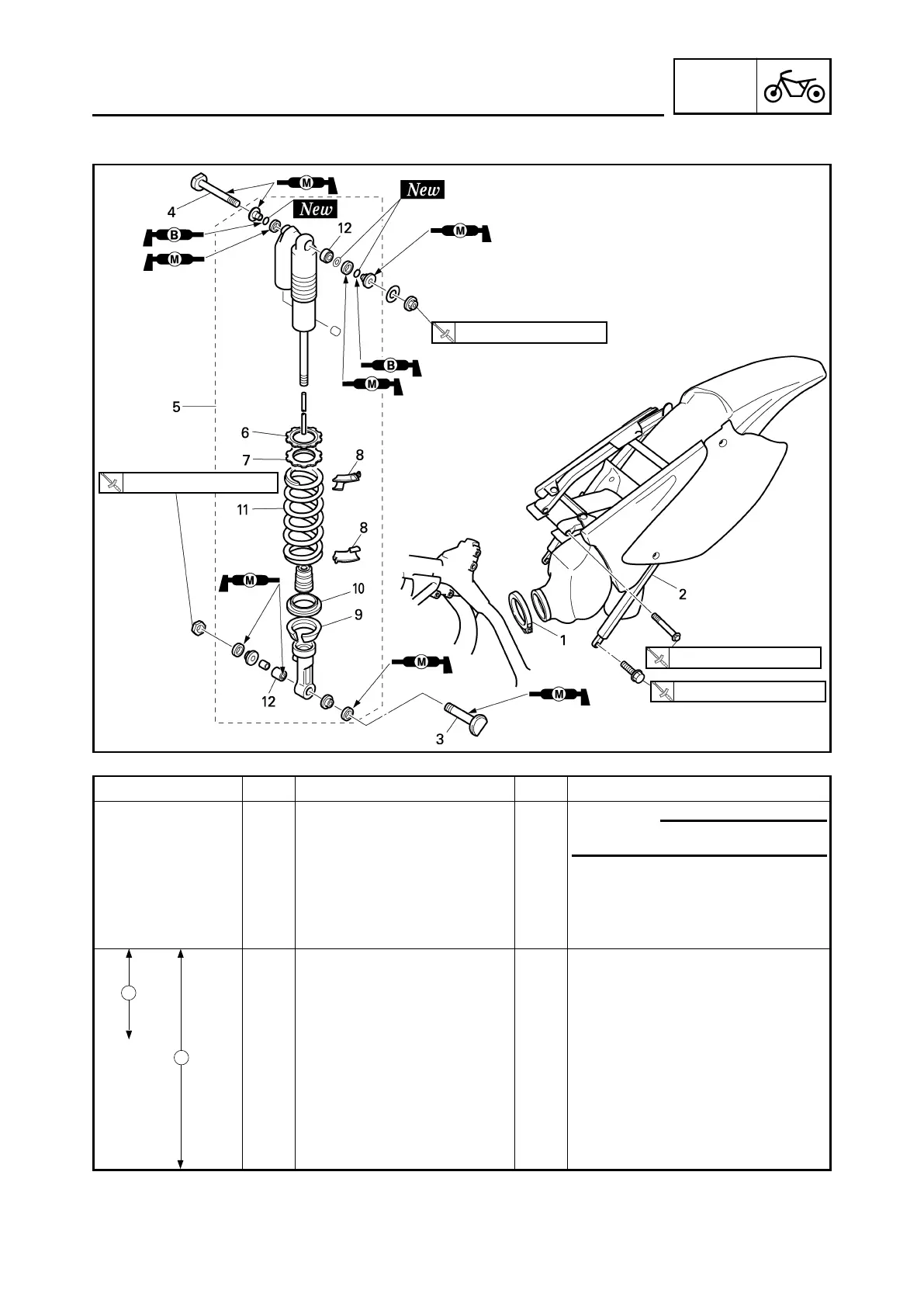

Extent of removal: 1 Rear shock absorber removal 2 Rear shock absorber disassembly
56 Nm (5.6 m•kg, 40 ft•lb)
53 Nm (5.3 m•kg, 38 ft•lb)
32 Nm (3.2 m•kg, 23 ft•lb)
EC580000
REAR SHOCK ABSORBER
29 Nm (2.9 m•kg, 21 ft•lb)
Extent of removal Order Part name Q’ty Remarks
REAR SHOCK ABSORBER
REMOVAL
Preparation for
Hold the machine by placing the
removal
suitable stand under the engine.
Seat
Refer to “SEAT, FUEL TANK AND
SIDE COVERS” section in the CHAPTER 4.
Silencer Refer to “EXHAUST PIPE AND
SILENCER” section in the CHAPTER 4.
1 Clamp (air cleaner joint) 1 Loosen the bolt (air cleaner joint).
2 Rear frame 1
3
Bolt (rear shock absorber-relay arm)
1 Hold the swingarm.
4 Bolt (rear shock absorber-frame) 1
5 Rear shock absorber 1
6 Locknut 1
7 Adjuster 1
8 Spring seat 2
9 Spring guide (lower) 1
10 Spring guide (upper) 1
11 Spring (rear shock absorber) 1
12 Bearing 2 Refer to “REMOVAL POINTS”.
2
w
Support the machine securely so there is no dan-
ger of it falling over.
1
