5-12
CHAS
FRONT BRAKE AND REAR BRAKE
Extent of removal Order Part name Q’ty Remarks
CALIPER DISASSEMBLY AB
1 Pad pin 1 1
2 Brake pad 2 2
3 Pad support 1 1
4 Caliper piston 2 1 Refer to “REMOVAL POINTS”.
5 Dust seal 2 1
Refer to “REMOVAL POINTS”.
6 Piston seal 2 1
EC5A8200

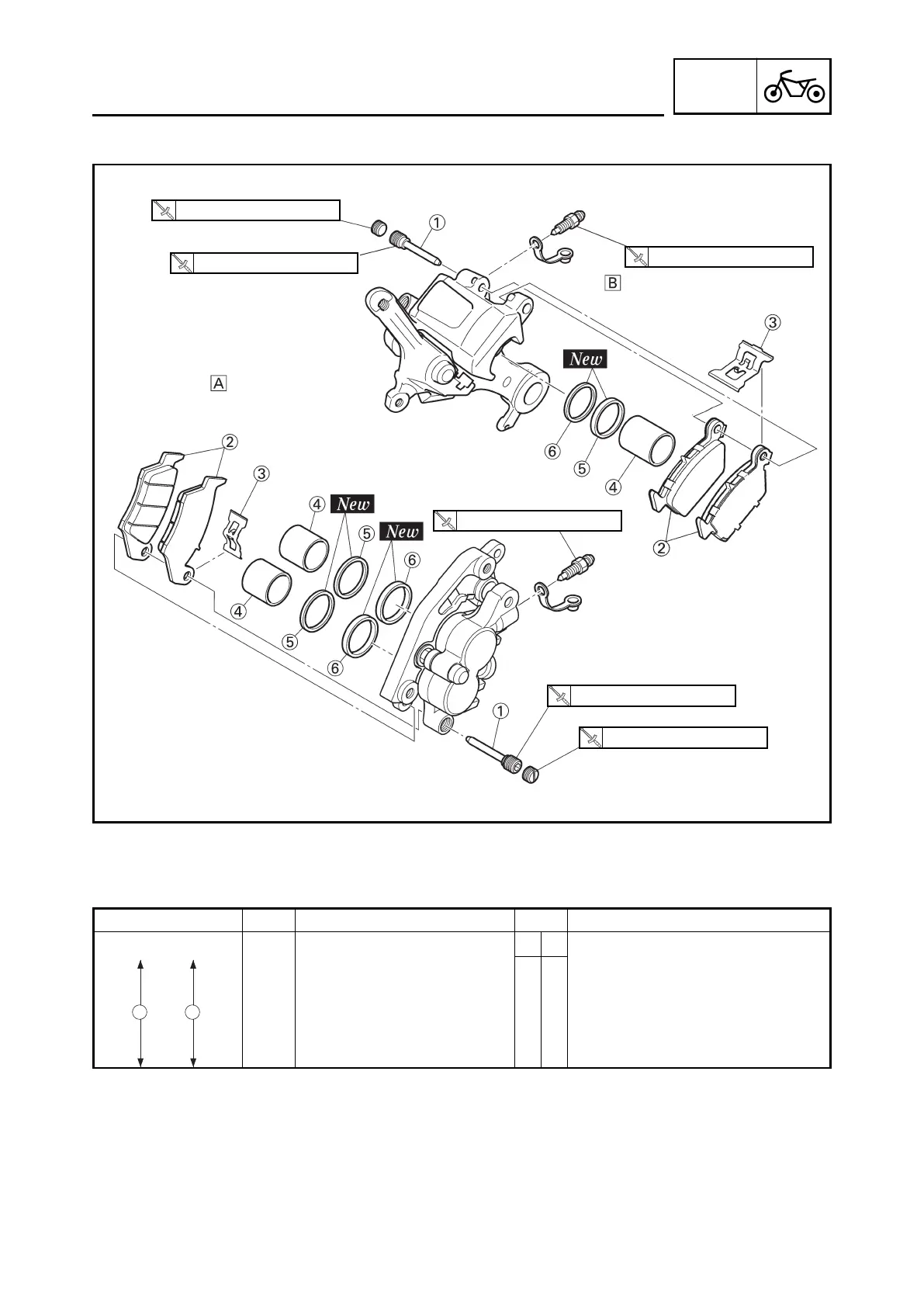

CALIPER DISASSEMBLY
A Front
B Rear
Extent of removal: 1 Front caliper disassembly 2 Rear caliper disassembly
21
6 Nm (0.6 m•kg, 4.3 ft•lb)
3 Nm (0.3 m•kg, 2.2 ft•lb)
18 Nm (1.8 m•kg, 13 ft•lb)
6 Nm (0.6 m•kg, 4.3 ft•lb)
18 Nm (1.8 m•kg, 13 ft•lb)
3 Nm (0.3 m•kg, 2.2 ft•lb)
1P8-9-32-5a 4/10/06 4:39 PM Page 24
