4-33
CLUTCH AND PRIMARY DRIVEN GEAR
ENG
Extent of removal Order Part name Q’ty Remarks
CLUTCH PLATE AND
FRICTION PLATE REMOVAL
Preparation for Drain the transmission oil.
Refer to “TRANSMISSION OIL REPLACE-
removal
MENT
” section in the CHAPTER 3.
Bolt (brake pedal) Shift the brake pedal downward.
Rotor and stator Refer to
“CDI MAGNETO
”section.
Clutch cable Disconnect at engine side.
1 Clutch cover 1
2 Screw (clutch spring) 6
3 Clutch spring 6
4 Pressure plate 1
5 Friction plate 8
6 Clutch plate 7
Extent of removal: 1
Clutch plate and friction plate removal
EC490000

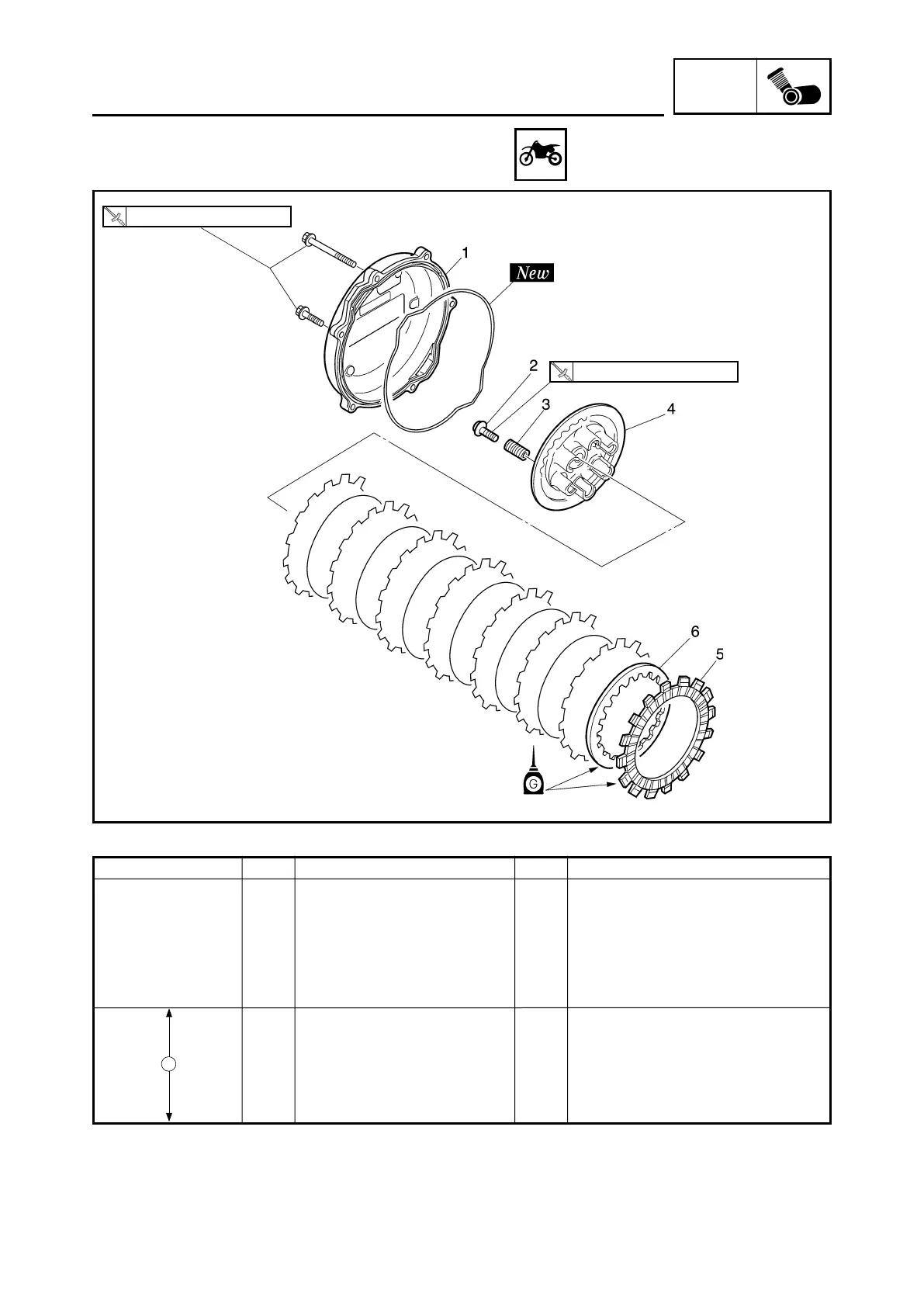

CLUTCH AND PRIMARY DRIVEN GEAR
EC498000
CLUTCH PLATE AND FRICTION PLATE
1
10 Nm (1.0 m•kg, 7.2 ft•lb)
10 Nm (1.0 m•kg, 7.2 ft•lb)
1P8-9-32-4b 4/6/06 2:12 PM Page 12
To Next Page
