EC600000
ELECTRICAL
EC610000

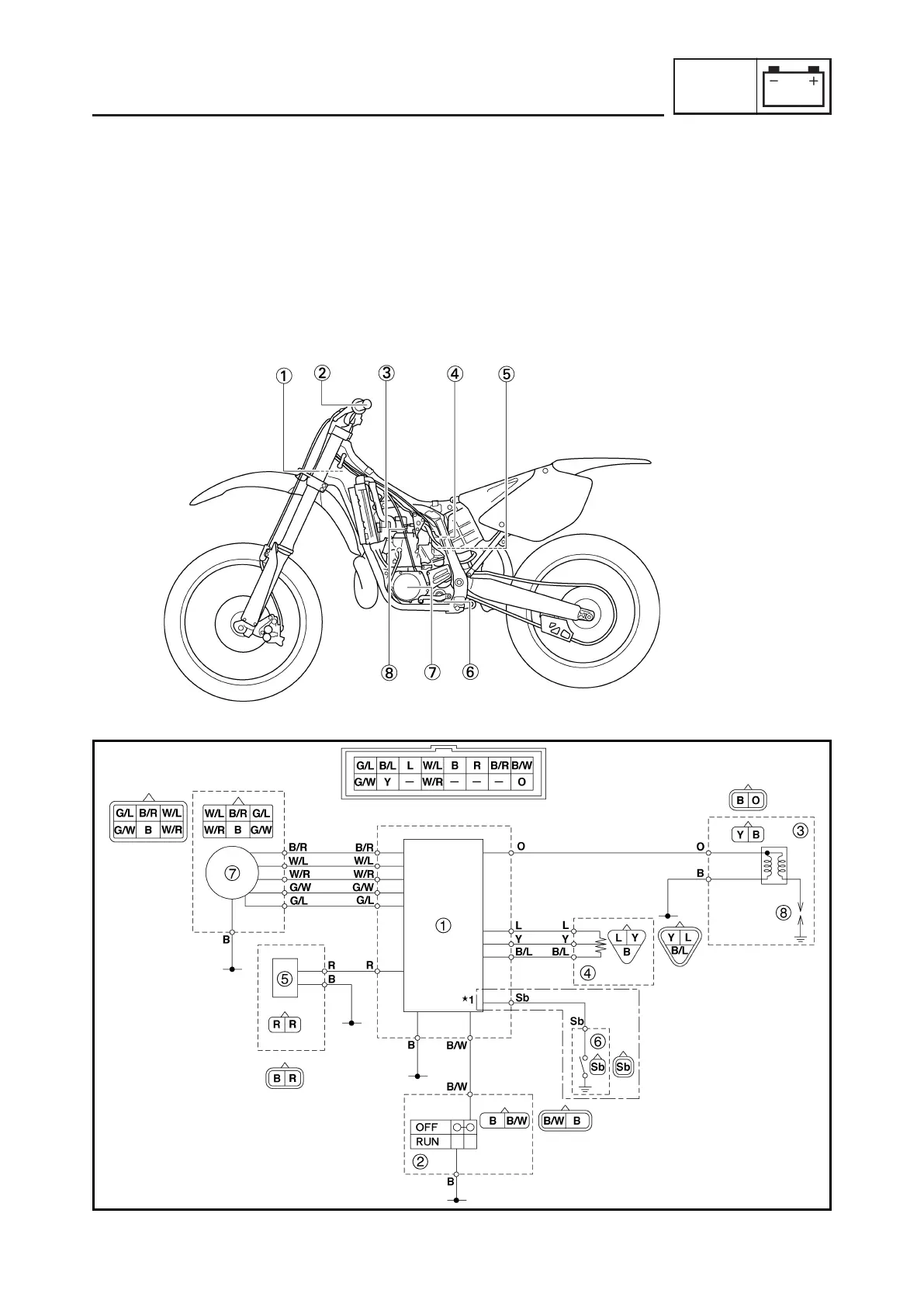

ELECTRICAL COMPONENTS AND WIRING DIAGRAM
EC611000
ELECTRICAL COMPONENTS
1 CDI unit
2 “ENGINE STOP” button
3 Ignition coil
4 TPS (throttle position sensor)
5 Solenoid valve
6 Neutral switch (Except for USA and CDN)
7 CDI magneto
8 Spark plug
EC612000
WIRING DIAGRAM
6-1
ELECTRICAL COMPONENTS AND WIRING DIAGRAM
ELEC
COLOR CODE
B...................Black
L...................Blue
O ..................Orange
R ..................Red
Sb.................Sky blue
Y...................Yellow
B/L................Black/Blue
B/R...............Black/Red
B/W ..............Black/White
G/L ..............Green/Blue
G/W..............Green/White
W/L...............White/Blue
W/R..............White/Red
*1:Except for USA and CDN
