Yamaha YZ450F(E) 2014 - Page 180

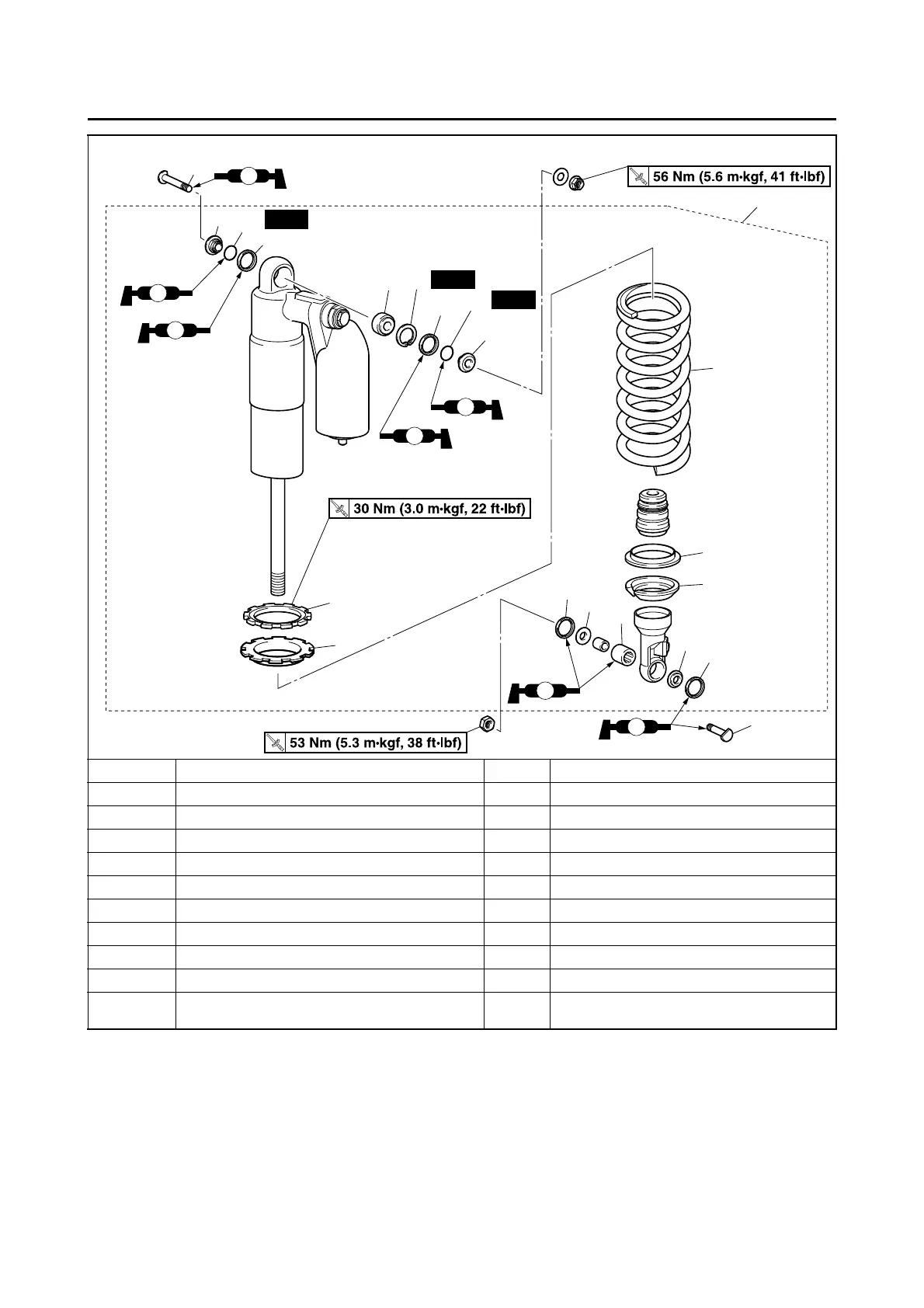

REAR SHOCK ABSORBER ASSEMBLY
4-54
Removing the rear shock absorber assembly
Order Part name Q’ty Remarks
8 Spring 1
9 Dust seal 2
10 Collars 2
11 Bushing 1
12 Collars 2
13 O-ring 2
14 Dust seal 2
15 Stopper ring 1
16 Bearing 1
For installation, reverse the removal proce-
dure.
