Yamaha YZ450F(E) 2014 - Page 181

REAR SHOCK ABSORBER ASSEMBLY
4-55

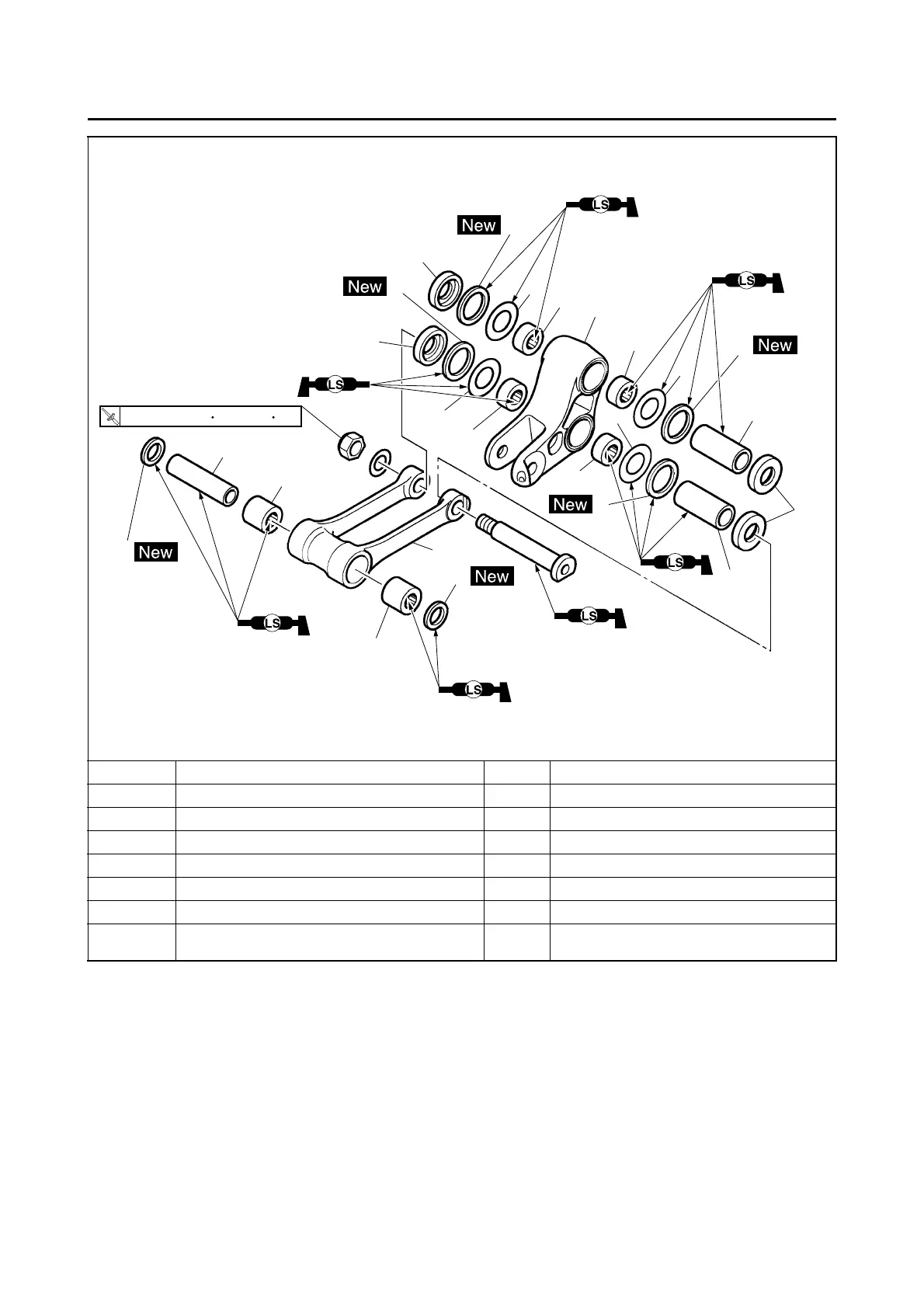

Disassembling the relay arm
Order Part name Q’ty Remarks
1 Relay arm 1
2 Connecting arm 1
3 Collars 3
4 Oil seals 6
5 Washers 8
6 Bearing 6
For assembly, reverse the disassemble pro-
cedure.
5
3
5
6
1
6
5
4
5
5
4
5
6
6
5
4
3
2
4
6
6
3
4
4
T
.R.
80 Nm (8.0 m lbf)kgf, 58 ft
