2. Installation
2.5 Belt cover
2.4 Hanging belt
①
②
③
④

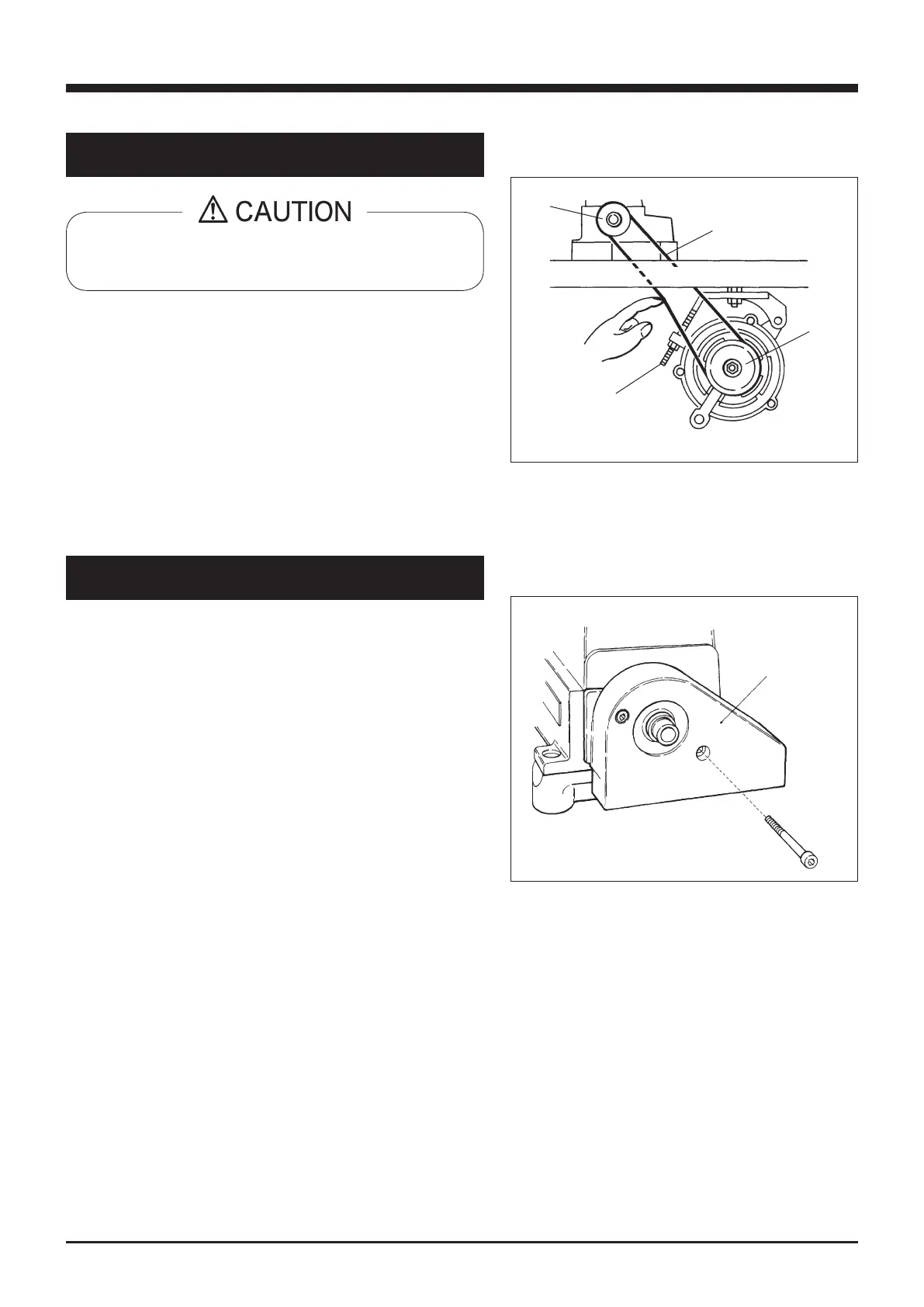

Fig. 2-11
Fig. 2-12
⑤
10 - 20 ㎜
Use the M-type of V-belt.
(1) Hang the belt ① on the machine pulley ② , and then
on the motor pulley ③ while rotating the machine pul-
ley.
(2) Adjust the belt tension so that the belt has a slack of
10 - 20 mm when its center is pushed with 10 N.
(3) Lock the motor with the adjusting bar ④ .
Before hanging belt, ALWAYS turn the power switch OFF
and check that the machine has already stopped.
Set the belt cover ⑤ . (Fig. 2-12)
