VF2400

2. Installation

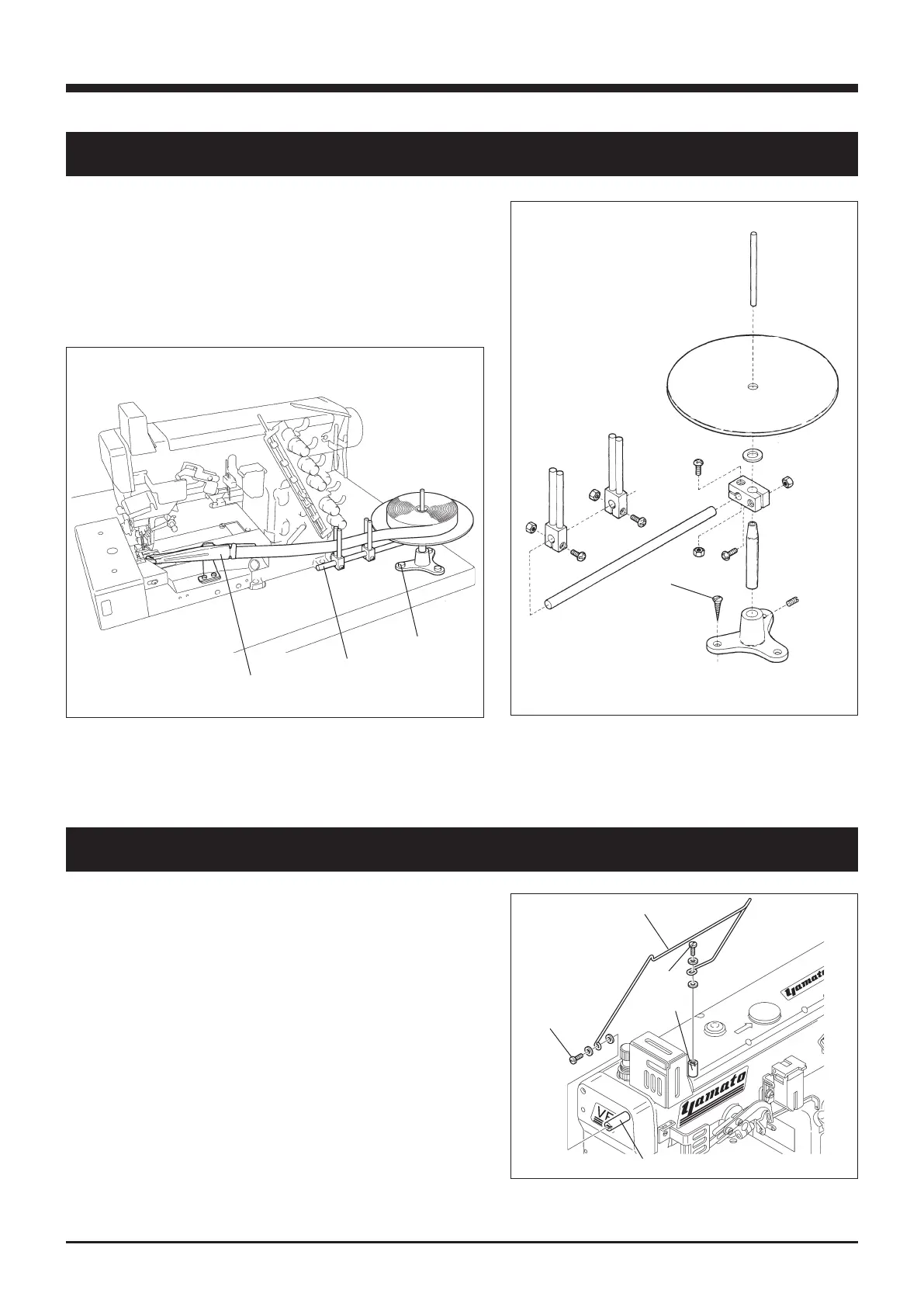

2.8 Tape stand (VF2403, 2404, 2503, 2504)

①

③

②

Fig. 2-15

Fig. 2-16

2.9 Tape holder(VF2404, 2504)

Fig. 2-17

④

⑤

⑥

⑦

⑧

(1) Set the tape stand (Fig. 2-15).

(2) Fix the tape stand on the machine table with the wood

screws ① (Fig. 2-16).

(3) Adjust the direction of the tape guide bar ③ to feed a

tape into the folder ② smoothly.

Set the tape holder ④ on the screw ⑦ of the top cover

and the screw ⑧ of the head cover with the screws ⑤⑥

respectively.

Yamato VF2400 class User Manual
