34
VF2400
6. Adjustments
6.11 Folder (VF2403, 2503, 2404, 2504)

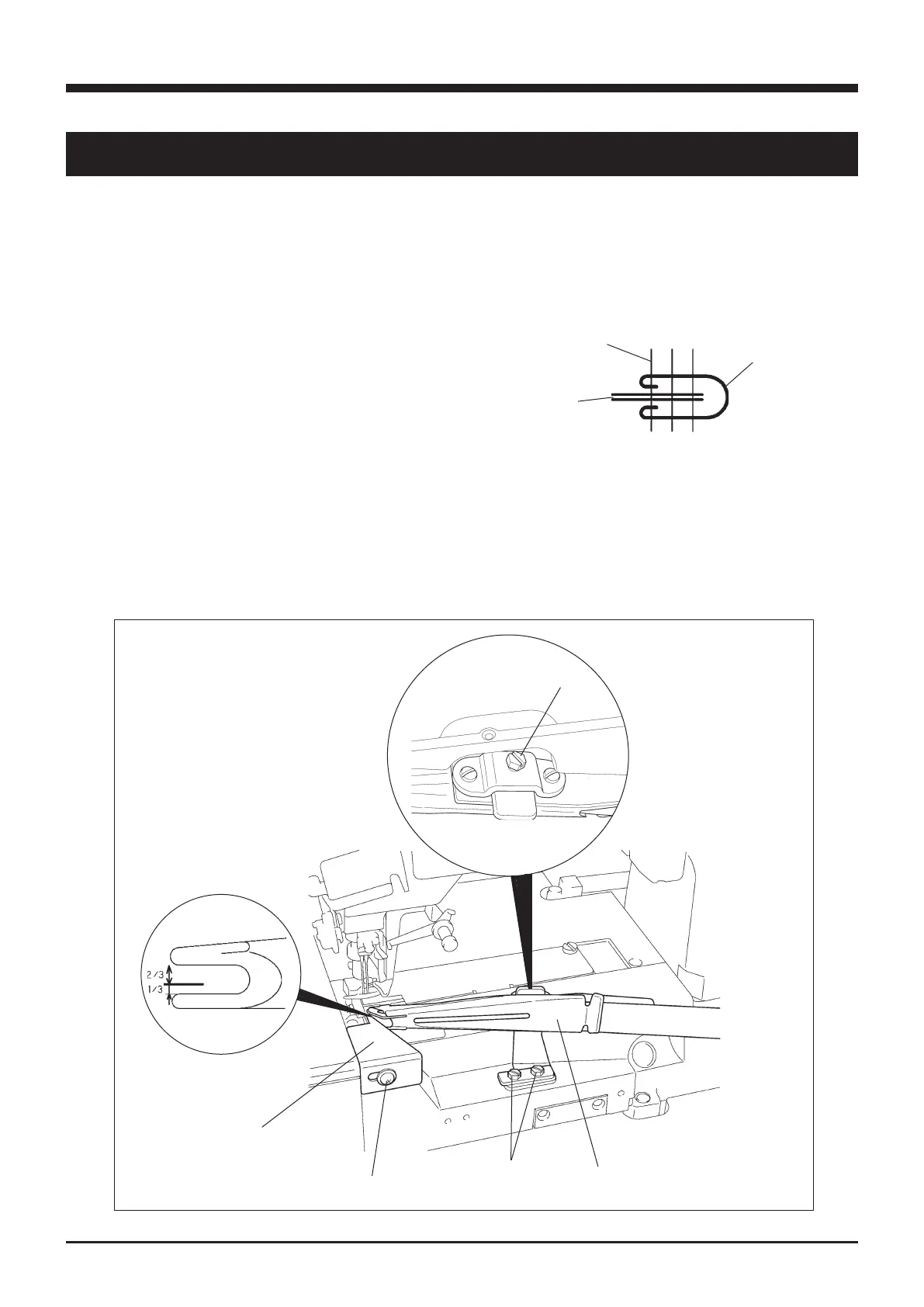

Fig. 6-33
Front-and-rear position
Loosen the screws ② to set the folder near the presser
foot and the stitch plate without touchng them.
Right-and-left position
Loosen the screws ② to set the folder to align the left end
of a tape with the left needle depending on its speci󳞛ca-
tions.
Up-and-down position
Loosen the screw ③ to set the fabric slide plate 1/3 up
from the bottom of the folder exit.
Set right-and-left position of the fabric slide plate to
align its end with the right end of a fabric.
Loosen the screw ⑤ to adjust it.
fabric
left needle
tape
Fig. 6-32
