4. Disassembly and Reassembly
73
(3) Removing (electrical) wiring
Remove the wiring from the engine. (Refer to 2.2.4(9) )

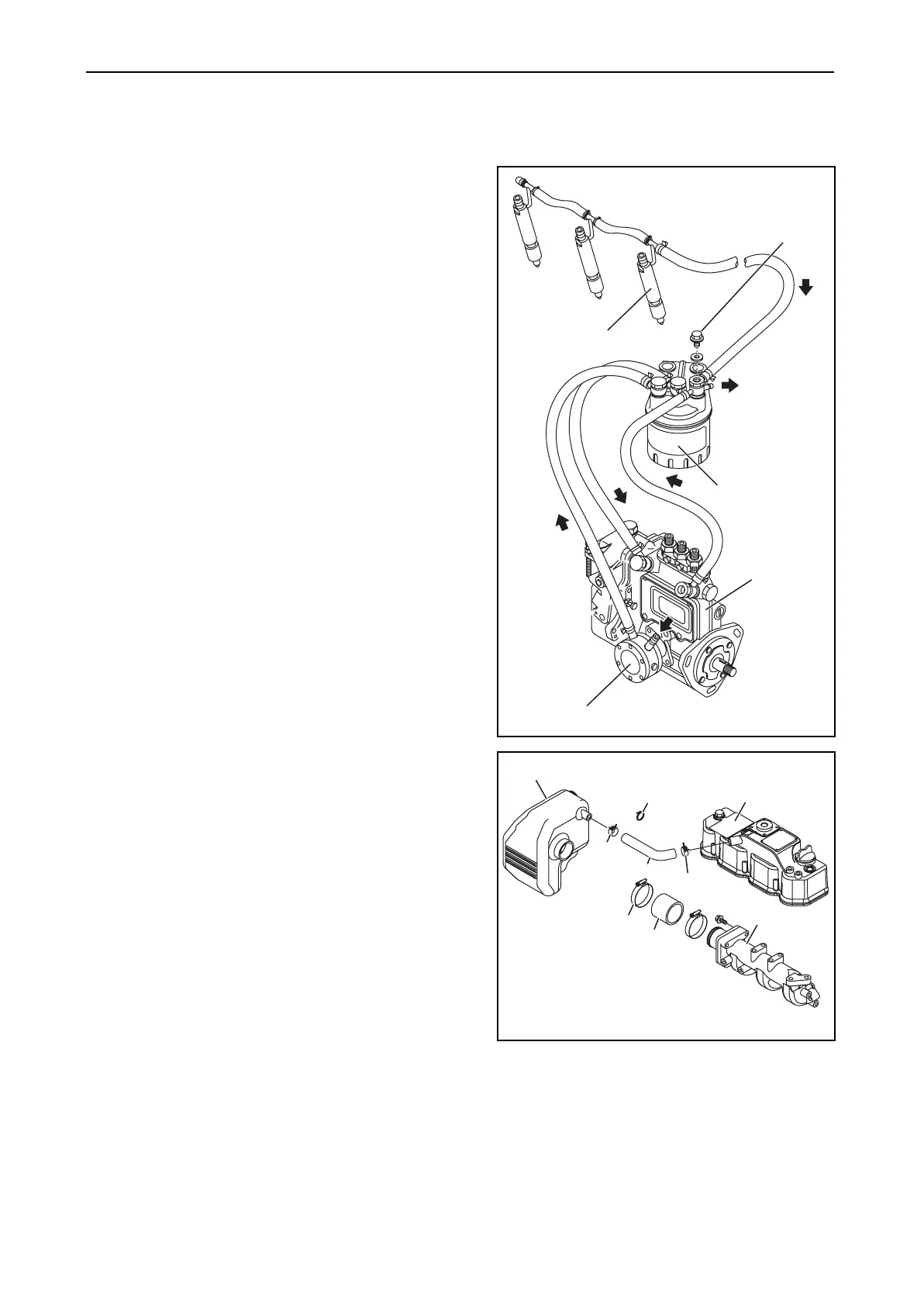

(4) Removing the fuel filter & fuel pipe
1) Remove the fuel pipes (fuel filter-fuel feed pump,
fuel filter-fuel injection pump and fuel nozzle-fuel
filter)
2) Remove the fuel filter.
(5) Removing the intake silencer
1) Remove the breather hose attached to the intake
silencer- rocker arm cover.
2) Remove the intake silencer from intake manifold.
Fuel nozzle
Air bleeding bolt
To fuel tan
Fuel filter
Fuel injection
pump
Fuel feed pump
(Removing intake silencer)
Intake silencer
Clamp
Clamp
Clamp
Clamp
Breather hose
Rocker arm cover
Intake hose
Intake manifold
To Next Page
