STARTER MOTOR
3TNV88F Service Manual
10-11
Starter Motor
20. E-ring

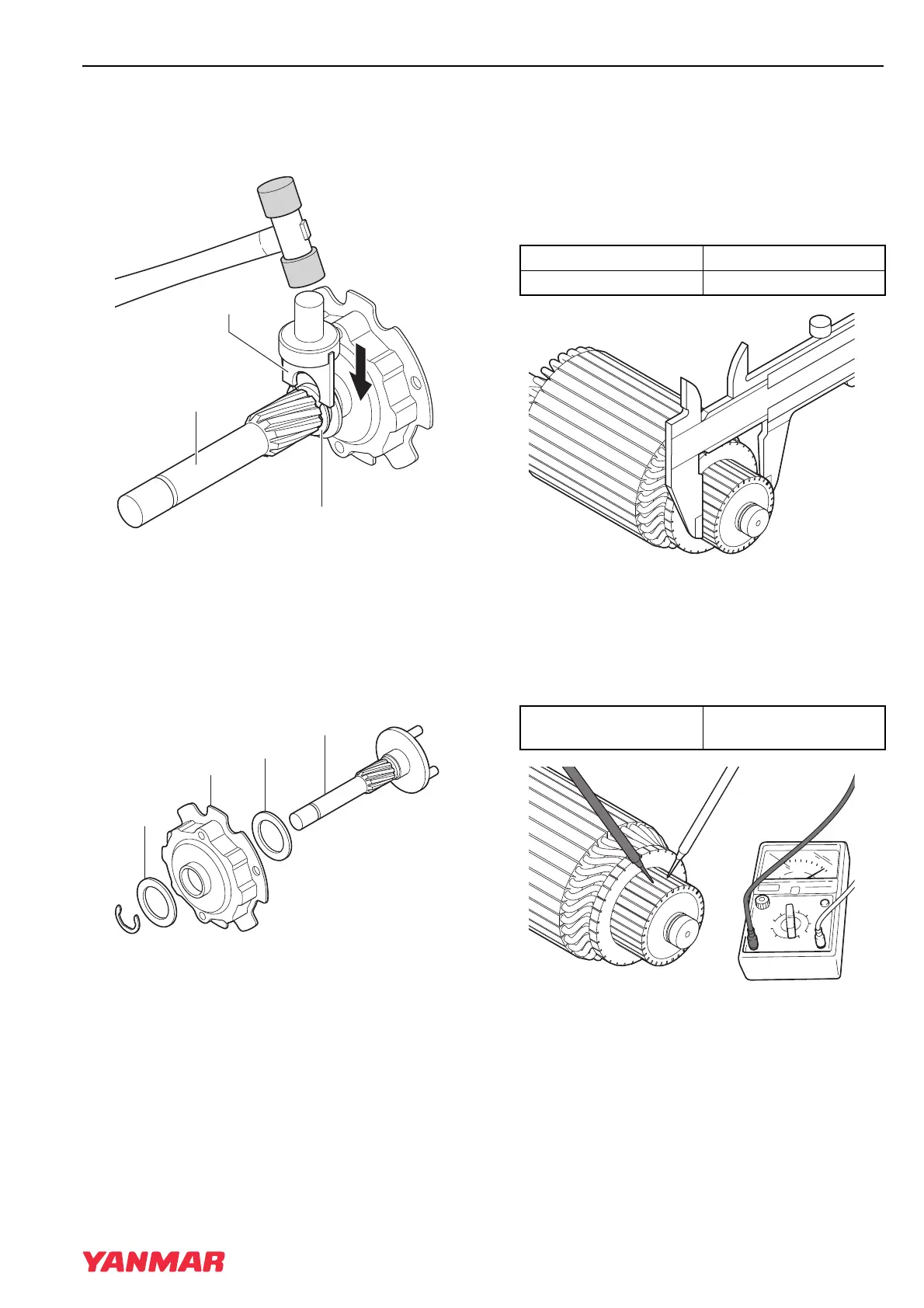

Use a special tool and hit with a hammer to pull
out the E-ring from the pinion shaft groove.
Figure 10-13
21. Washer (2)
22. Center bracket P
23. Pinion shaft
Remove the E-ring, and then pull out the center
bracket P and the washers from the pinion shaft.
Figure 10-14
Inspection and Maintenance
1. Armature
1- Outer diameter of commutator
Measure the outer diameter of the
commutator. If it is below the limit, replace it
with a non-defective.
Figure 10-15
2- Conduction test for armature coil
Check between the commutator bars with a
tester.
If there is conduction, it is a non-defective.
Figure 10-16
Pinion shaft
Special tools
20
046421-00EN00
21
21
23
22
046422-00X00
Standard Limit
ø29 mm ø28 mm
No conduction
(Coil burnout)
Replace the armature
046452-00X00
046470-00X00
