Yanmar 3TNV88F - Special Service Tools

ENGINE
3TNV88F Service Manual
6-11
Special Service Tools

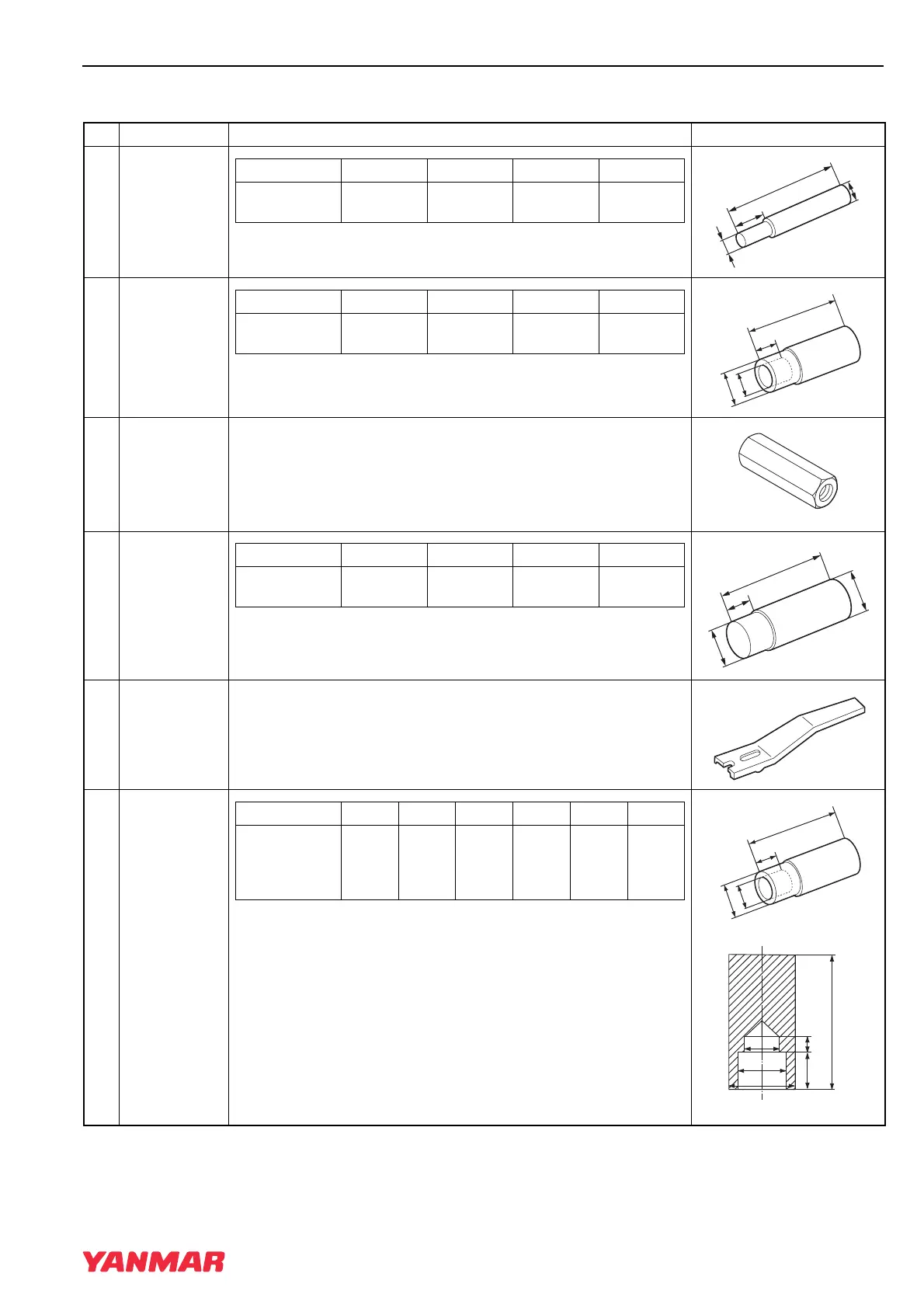

SPECIAL SERVICE TOOLS
No. Tool name Applicable model and tool size Illustration
1
Valve guide tool
(for removing
valve guide)
Model L1 L2 d1 d2
3TNV88F
0.787 in.
(20 mm)
2.953 in.
(75 mm)
0.295 in.
(7.5 mm)
0.433 in.
(11 mm)
Locally manufactured
2
Valve guide tool
(for installing
valve guide)
Model L1 L2 d1 d2
3TNV88F
0.591 in.
(15 mm)
2.559 in.
(65 mm)
0.551 in.
(14 mm)
0.787 in.
(20 mm)
Locally manufactured
3
Fuel injector
removal tool
YANMAR Part No. 129470-92305
4
Connecting rod
bushing
replacer
(for removal/
installation of
connecting rod
bushing)
Model L1 L2 d1 d2
3TNV88F
0.787 in.
(20 mm)
3.937 in.
(100 mm)
1.024 in.
(26 mm)
1.142 in.
(29 mm)
Locally manufactured
5
Valve spring
compressor
(for removal/
installation of
valve spring)
YANMAR Part No. 129100-92630
6
Stem seal
installer (for
installing valve
stem seal)
Model d1d2d3L1L2L3
3TNV88F
0.638
in.
(16.2
mm)
0.866
in.
(22
mm)
0.531
in.
(13.5
mm)
0.740
in.
(18.8
mm)
2.559
in.
(65
mm)
0.157
in.
(4 mm)
Locally manufactured
L
2
L
1
d
1
d
2
010932-00X
L
2
L
1
d
1
d
2
001421-00X
K0001618
L
2
L
1
d
1
d
2
010933-00X
010931-00X
L
2
L
1
d
1
d2
001421-00X
L2
L1
L3
d1
d2
d3
001422-00X
