ENGINE
6-12
3TNV88F Service Manual

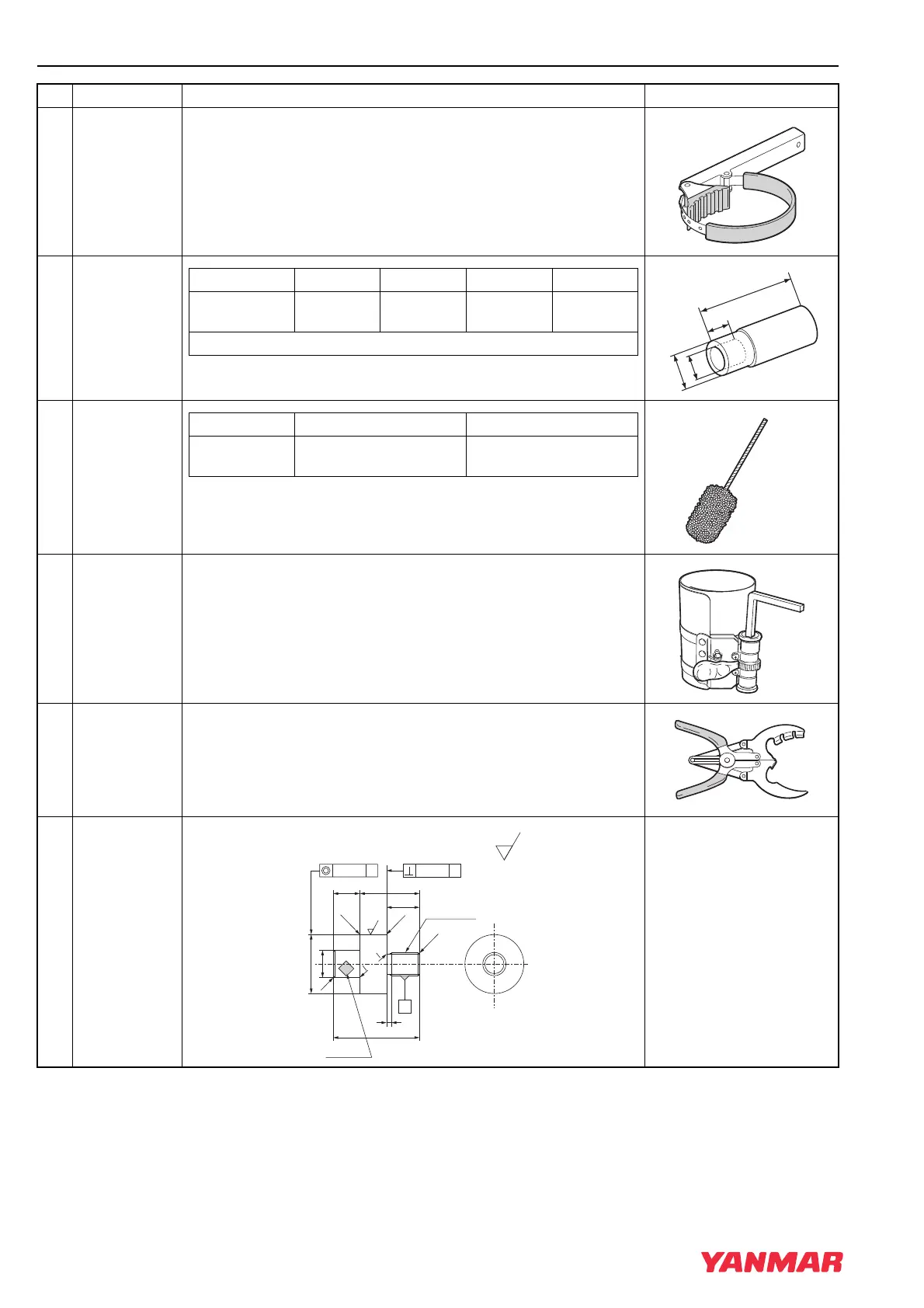

Special Service Tools
7
Filter wrench
(for removal/
installation of
engine oil filter)
Available locally
8
Camshaft
bushing tool
(for extracting
camshaft
bushing)
Model L1 L2 d1 d2
3TNV88F
0.709 in.
(18 mm)
2.756 in.
(70 mm)
1.772 in.
(45 mm)
1.890 in.
(48 mm)
Allowance: d1 d2
Locally manufactured
9
Flex-hone
(for preparation
of cylinder
walls)
Model YANMAR Part No. Cylinder bore
3TNV88F 129400-92430
3.268 - 3.740 in.
(83 - 95 mm)
10
Piston ring
compressor
(for installing
piston)
YANMAR Part No. 95550-002476
The piston insertion tool is applicable for
2.362 - 4.921 in. (60 - 125 mm) diameter pistons
11
Piston ring
expander
(for removal/
installation of
piston ring)
Available locally
12
Pulley installing
tool
No. Tool name Applicable model and tool size Illustration
002829-01X
L
2
L
1
d
1
d
2
001421-00X
010930-00X
007236-00X
001411-00X
A
20
16
36
(16)
0.1 AA
M14 x 1.5
52
0.05
6.3
C0.5
C0.5
C1
C1
ø 6
ø 35.4
-0.05 -0.15
3
Knurling
