Yanmar 3TNV88F - Component Identification

GENERAL SERVICE INFORMATION
3TNV88F Service Manual
4-3
Component Identification
COMPONENT IDENTIFICATION

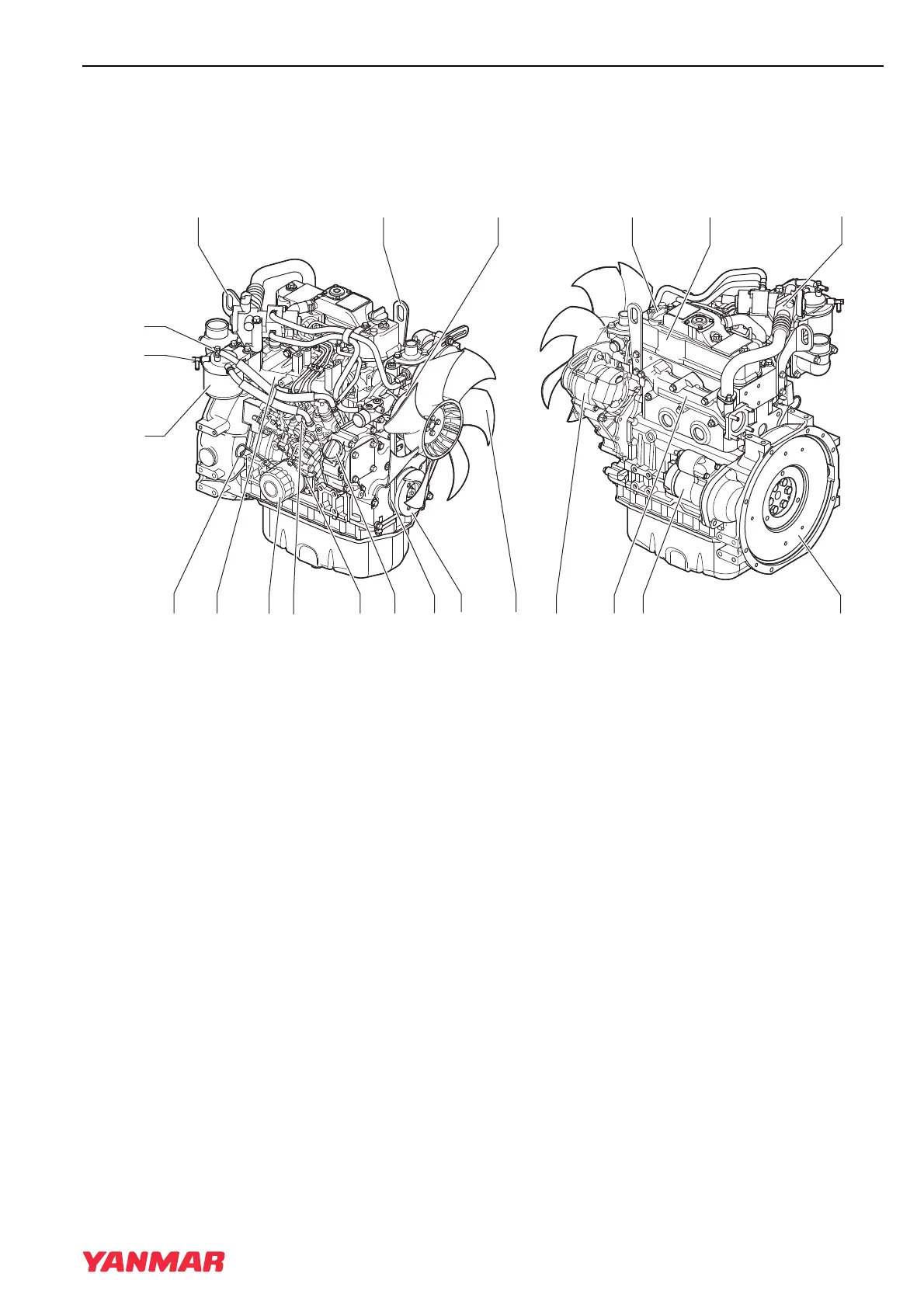

Figure 4-1 shows where the major engine components are located.
3TNV88F
1 –Lifting eye (flywheel end)
2 –Lifting eye (engine cooling fan end)
3 –Engine coolant pump
4 –Engine cooling fan
5 –Crankshaft V-pulley
6–V-belt
7 –Side filler port (engine oil)
8 –Engine oil cooler
9 –Fuel injection pump
10–Engine oil filter
11–Intake manifold
12–Dipstick (engine oil)
13–Fuel filter
14 –Fuel return to fuel tank
15–Fuel inlet
16–Top filler port (engine oil)
17–Rocker arm cover
18–EGR valve
19–Flywheel
20 –Starter motor
21–Exhaust manifold
22–Alternator
Figure 4-1
*: Engine oil drain plug location may vary based on oil pan options.
045002-00X00
231
456789101112
1
3
1
4
1
5
16 17 18
19202122
