MEASURING INSTRUMENTS

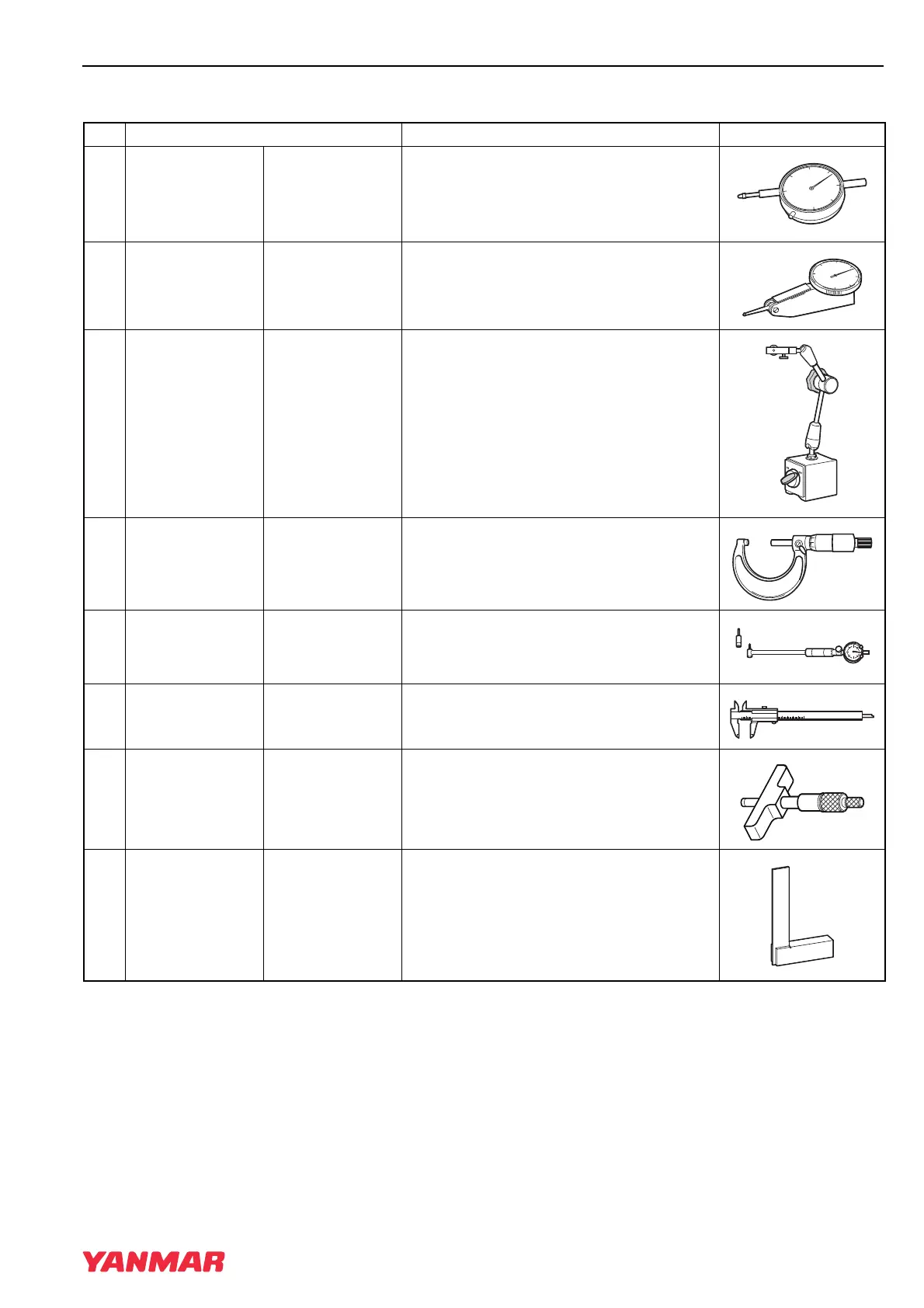

No. Instrument name Application Illustration
1 Dial indicator Locally available Measure shaft bend and end play
2 Test indicator Locally available
Measurements of narrow or deep portions that
cannot be measured by dial gauge
3 Magnetic stand Locally available For holding the dial gauge when measuring
4 Micrometer Locally available
For measuring the outside diameters of
crankshaft, pistons, piston pins, etc.
5 Cylinder bore gauge Locally available
For measuring the inside diameters of cylinder
liners, bearing bores, etc.
6 Calipers Locally available
For measuring outside diameters, depth,
thickness and width
7 Depth micrometer Locally available For measuring of valve recession
8 Square Locally available
For measuring valve spring inclination and
straightness of parts
001429-00X
001430-00X
001431-00X
001432-00X
001433-00X
001434-00X
001435-00X
001436-00X
