ALTERNATOR
11-10
3TNV88F Service Manual
Alternator
ALTERNATOR
WARNING
Shock Hazard!
• Turn off the battery switch (if
equipped) or disconnect the
negative battery cable before
servicing the electrical system.
• Check the electrical harnesses for cracks,
abrasions, and damaged or corroded
connectors. Always keep the connectors and
terminals clean.
• Failure to comply could result in death or
serious injury.
Removal of Alternator
1. Disconnect the electrical wires from the
alternator.
2. Loosen the V-belt.
CAUTION
Pinch Hazard!
Carefully rotate the alternator
toward the cylinder block while
loosening the V-belt. Failure to
comply may result in minor or
moderate injury.

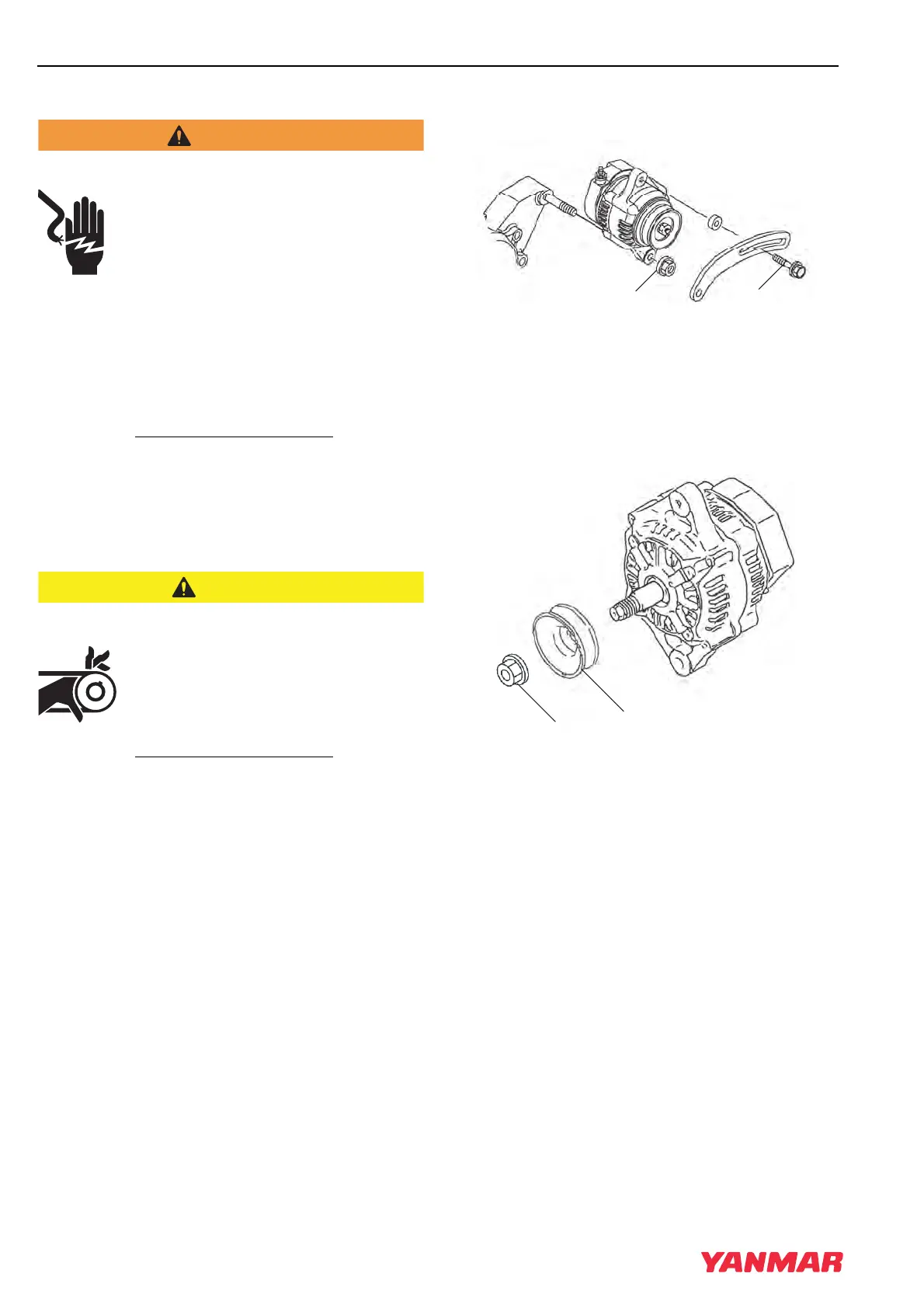

3. Remove the V-belt adjuster from the alternator
bolt (Figure 11-4, (1)).
4. Remove the nut (Figure 11-4, (2)) from the
gear case stud. Remove the alternator.
Figure 11-4
Disassembly of Alternator
1. Remove the nut (Figure 11-5, (1)) from the
shaft of the rotor assembly. Remove the pulley
(Figure 11-5, (2)).
Figure 11-5
1
2
K0000264
K0000256
1
2
