Y00R4782 (2001.09.27)
'g-
24

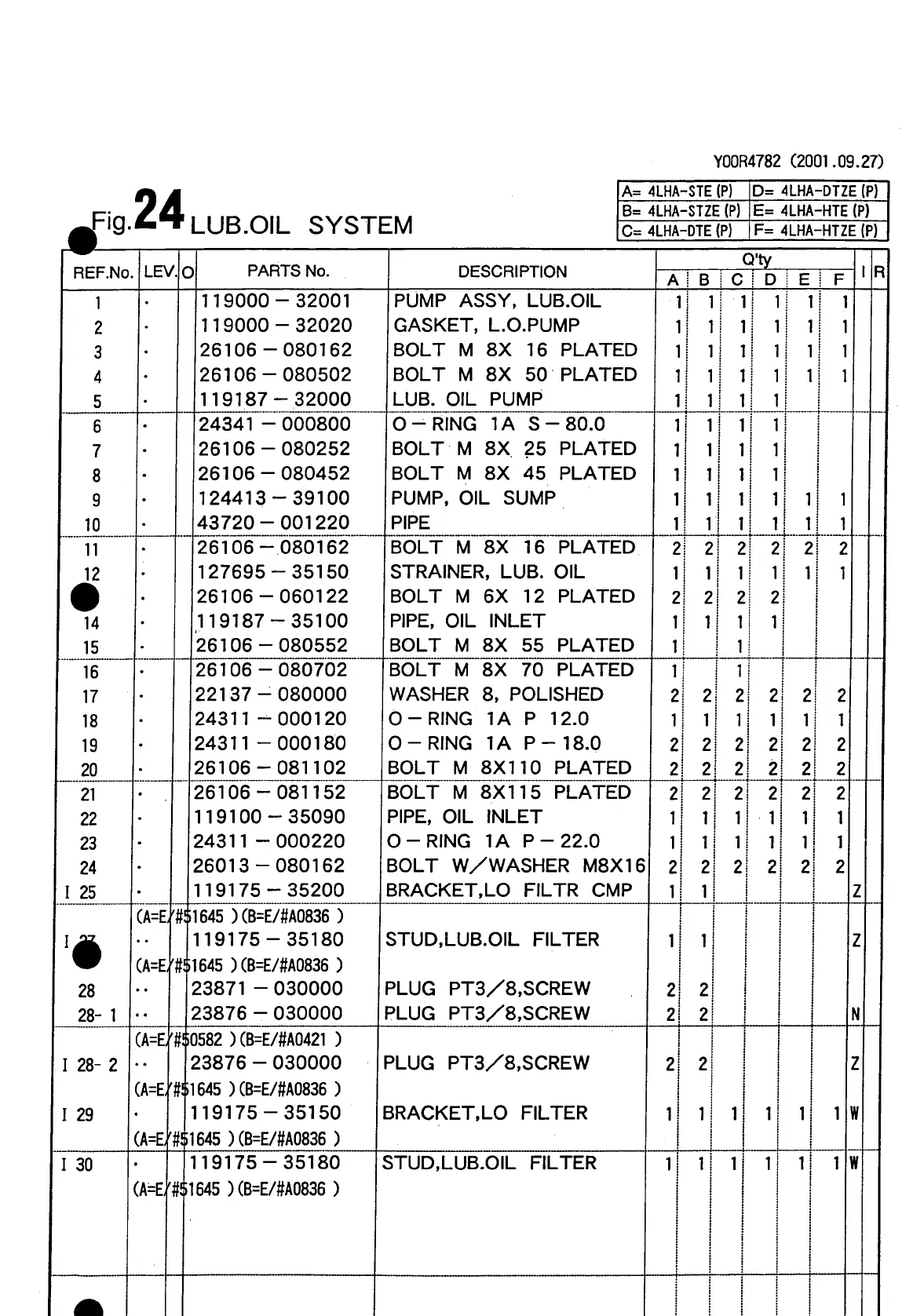

LUB.OIL SYSTEM
A= 4LHA-STE (P) D= 4LHA-DTZE (P)
B= 4LHA-STZE (P) E= 4LHA-HTE (P)
C= 4LHA-DTE (P) F= 4LHA-HTZE (P)
REF.No.
LEV. PARTS No.
DESCRIPTION
B
Q'ty
D i E
1
2
3
4
5
119000-32001
119000-32020
26106-080162
26106-080502
119187-32000
PUMP ASSY, LUB.OIL
GASKET, L.O.PUMP
BOLT M 8X 16 PLATED
BOLT M 8X 50 PLATED
LUB. OIL PUMP
6
7
8
9
10
24341 - 000800
26106-080252
26106-080452
124413-39100
43720-001220
O-RING IA S-80.0
BOLT M 8X 25 PLATED
BOLT M 8X 45 PLATED
PUMP, OIL SUMP
PIPE
11
12
»
14
15
26106-080162
127695-35150
26106-060122
119187-35100
26106-080552
BOLT M 8X 16 PLATED
STRAINER, LUB. OIL
BOLT M 6X 12 PLATED
PIPE, OIL INLET
BOLT M 8X 55 PLATED
2
1
2
16
17
18
19
20
26106-080702
22137-080000
24311 -000120
24311 -000180
26106 - 081102
BOLT M 8X 70 PLATED
WASHER 8, POLISHED
O-RING IA P 12.0
O-RING IA P-18.0
BOLT M 8X110 PLATED
21
22
23
24
I 25
26106-081152
119100-35090
24311 -000220
26013-080162
119175-35200
BOLT M 8X115 PLATED
PIPE, OIL INLET
O-RING IA P-22.0
BOLT W/WASHER M8X16
BRACKET.LO FILTR CMP
I,
28
28- 1
(A=Ei#$ 645 )(B=E/#A0836 )
119175-35180
\=Em 645 )(B=E/#A0836 )
23871 - 030000
23876 - 030000
STUD.LUB.OIL FILTER
•LUG PT3/8,SCREW
'LUG PT3/8,SCREW
(A=E. '#! 10582 )(B=E/#A0421 )
I 28- 2 •• 23876-030000
(A=E,
,
#!i1645 )(B=E/#A0836 )
129 • 119175-35150
\=E '#M645 )(B=E/#A0836 )
PLUG PT3/8,SCREW
BRACKET.LO FILTER
I 30
(A=E,
119175-35180
#$1645 )(B=E/#A0836 )
STUD.LUB.OIL FILTER
