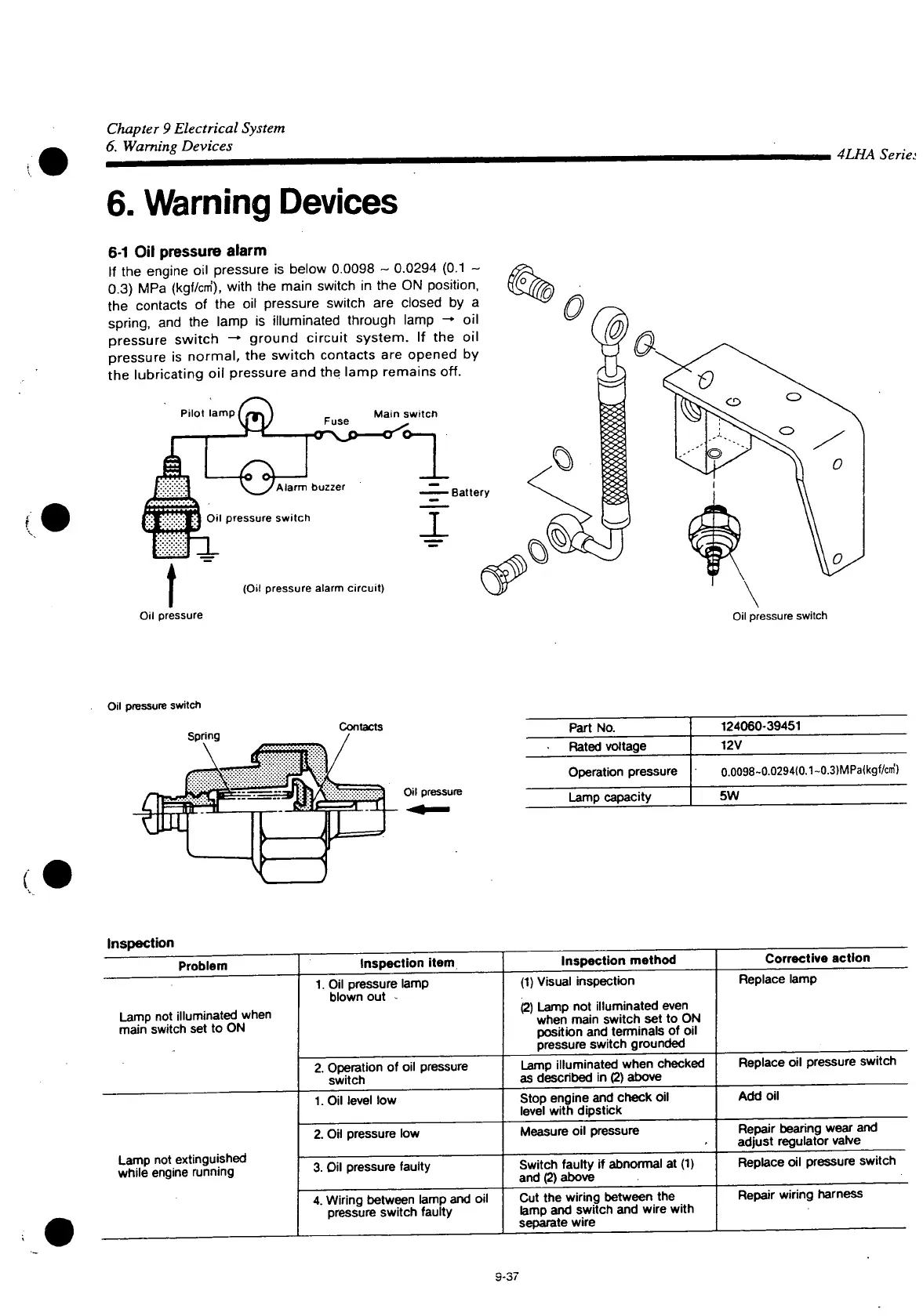

Chapter
9
Electrical System
6. Warning Devices
4LHA Serie:
6.
Warning
Devices
6-1 Oil
pressure
alarm
If the engine oil pressure is below 0.0098 ~ 0.0294 (0.1 -
0.3) MPa (kgf/cm),
with
the main switch in the ON position,
the contacts of the oil pressure switch are closed by a
spring,
and the lamp is illuminated through lamp — oil
pressure
switch — ground circuit system. If the oil
pressure
is normal, the switch contacts are opened by
the lubricating oil pressure and the lamp remains off.
Pilot
lamp
Fuse
Main
switch
Battery
(Oil pressure alarm circuit)
Oil
pressure
Oil
pressure switch
Oil
pressure switch
Spring
Contacts
Oil
pressure
Part
No.
124060-39451
Rated
voltage
12V
Operation pressure
0.0098-0.0294(0.1-O.SlMPalkgf/cm')
Lamp
capacity
5W
Problem
Inspection
item
Inspection
method
Corrective
action
Lamp
not
illuminated when
main switch
set to
ON
1. Oil pressure lamp
blown
out -
(1) Visual inspection
(2) Lamp
not
illuminated even
when main switch
set to
ON
position and terminals
of oil
pressure
switch grounded
Replace
lamp
Lamp
not
illuminated when
main switch
set to
ON
2.
Operation
of oil
pressure
switch
Lamp
illuminated when checked
as
described
in (2)
above
Replace
oil
pressure switch
Lamp
not
extinguished
while engine running
1. Oil level
low
Stop
engine and check
oil
level
with
dipstick
Add
oil
Lamp
not
extinguished
while engine running
2.
Oil pressure
low
Measure
oil
pressure
Repair
bearing wear and
adjust regulator valve
Lamp
not
extinguished
while engine running
3.
Oil pressure
faulty
Switch
faulty
if
abnormal
at (1)
and
(2) above
Replace
oil
pressure switch
Lamp
not
extinguished
while engine running
4.
Wiring between lamp and
oil
pressure
switch
faulty
Cut
the
wiring between
the
lamp and switch and wire
with
separate
wire
Repair
wiring harness
9-37
