Yanmar 4LHA-HTP User Manual

Chapter 9 Electrical System
5. Instrument Panel
4LHA Series

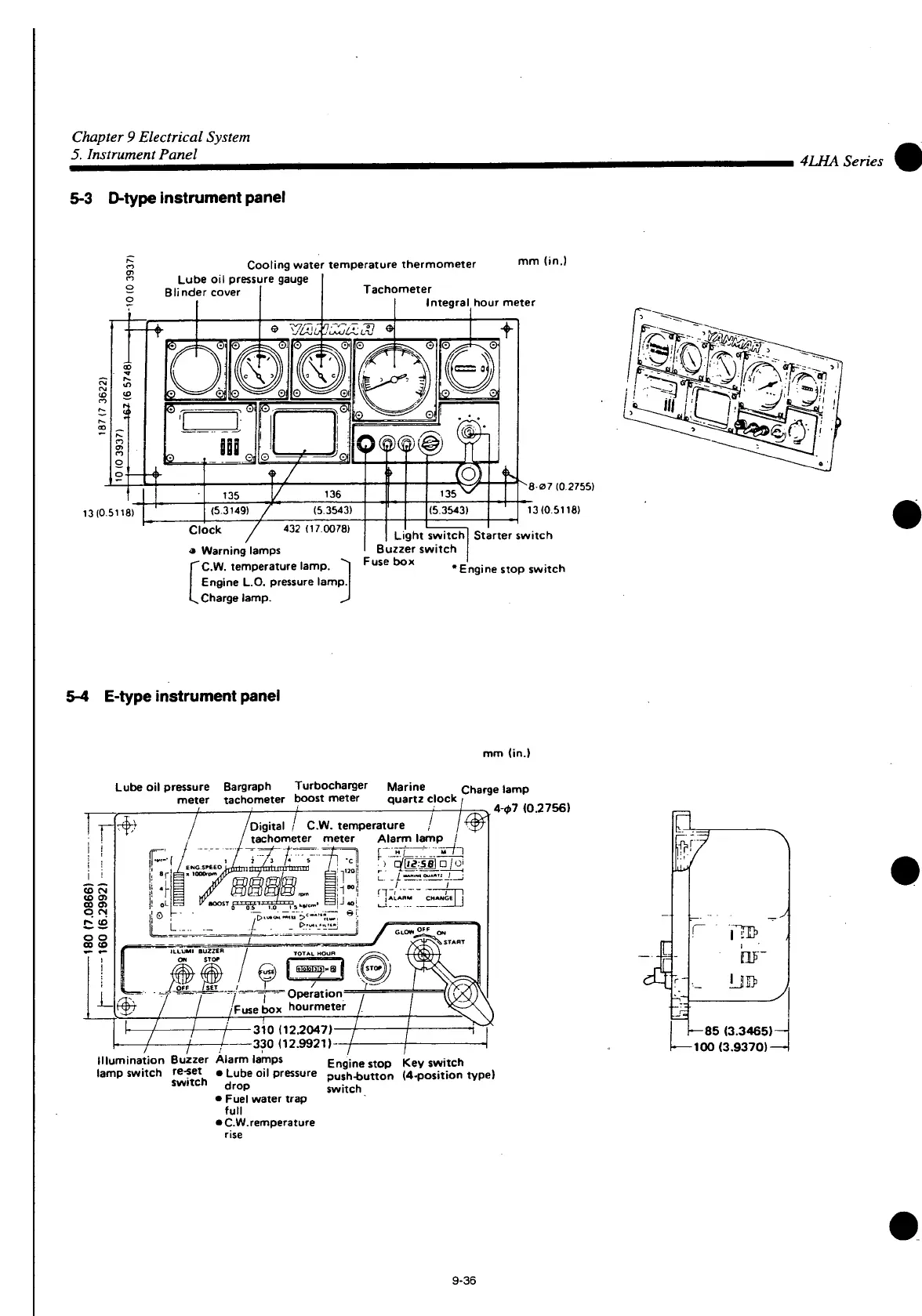

5-3 D-type instrument panel
13(0.5118)
Cooling water temperature thermometer
Lube oil pressure gauge
mm (in.)
Blinder cover
Tachometer
Integral hour meter
8 07 (0.2755)
13(0 5118)
Clock ^/
» Warning lamps
C.W. temperature lamp. ~~]
Fuse box
Engine L.O. pressure lamp.
Charge lamp.
Starter switch
•Engine stop switch
5-4 E-type instrument panel
mm (in.)
Lube oil pressure Bargraph Turbocharger Marine Charge lamp
meter tachometer boost meter quartz clock^ ^ ^ ^ 77Kfi)
/Digital / C.W. temperature /
tachometer meter Alarm lamp /
Illumination Buzzer Alarm lamps Engine stop Key switch
lamp switch re-set • Lube oil pressure push-button (4-position type)
switch
drop sw
.
tch
• Fuel water trap
full
• C.W.remperature
rise
CL
'm'
IJI>
1—85 (3.3465) —
-100 (3.9370)-
9-36
