Yanmar 4LHA-HTP User Manual

Chapter 9 Electrical System
5. Instrument Panel
i 4LHA Serit

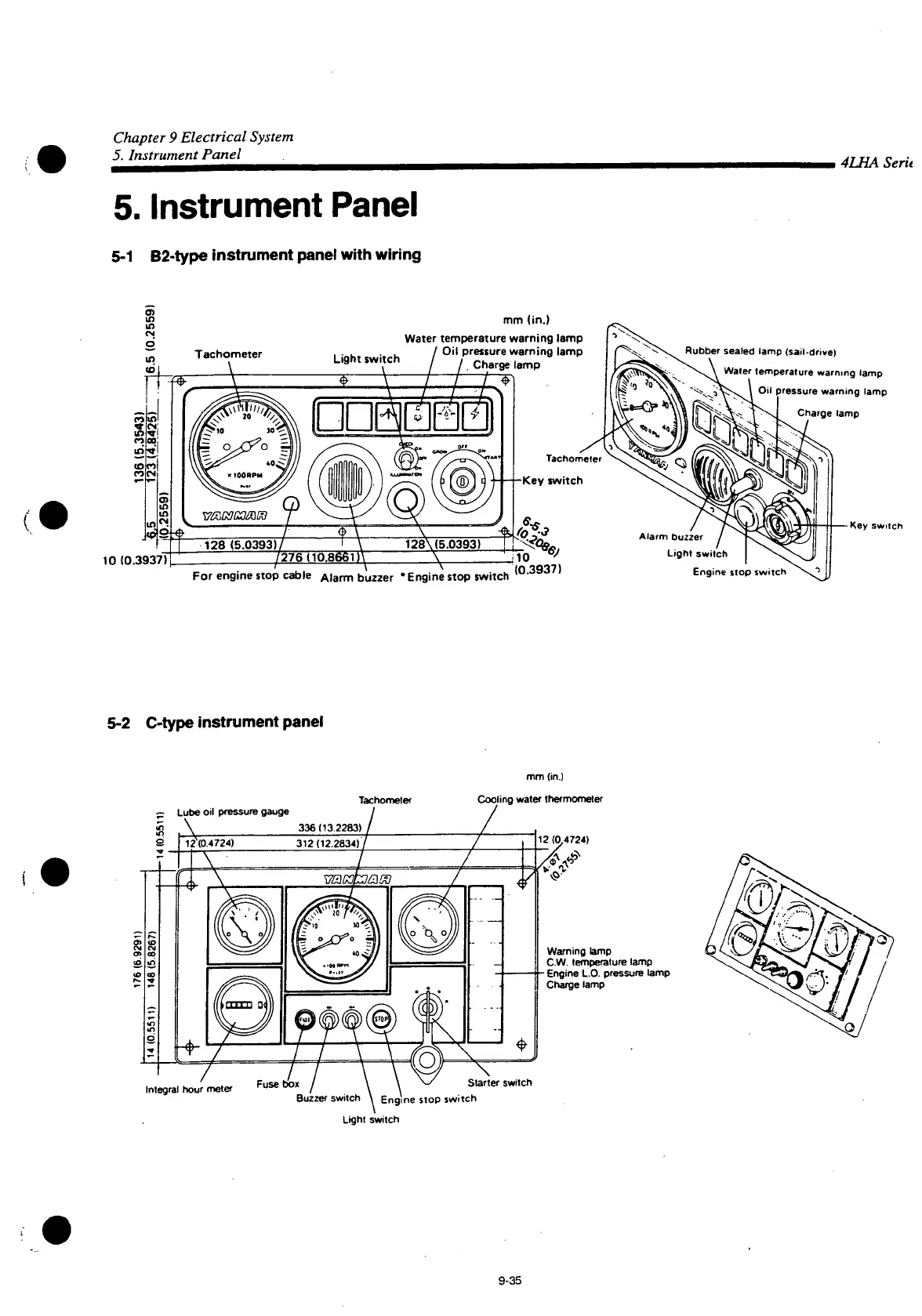

5. Instrument Panel
5-1 B2-type instrument panel with wiring
10 (0.39371
mm (in.)
Rubber sealed lamp (sail-drive)
Water temperature warning lamp
^iVSv \ P
ress
ure warning lamp
Charge lamp
For engine stop cable Alarm buzzer 'Engine stop switch
-Key switch
5-2 C-type instrument panel
Tachometer
~ Lube oil pressure gauge
jn \ 336 (13.2283)
12(0.4724)
7
Integral hour meter
mm (in.)
Cooling water thermometer
Warning lamp
C.W. temperature lamp
- Engine L.O. pressure lamp
Charge lamp
Starter switch
Engine stop switch
Light switch
9-35
