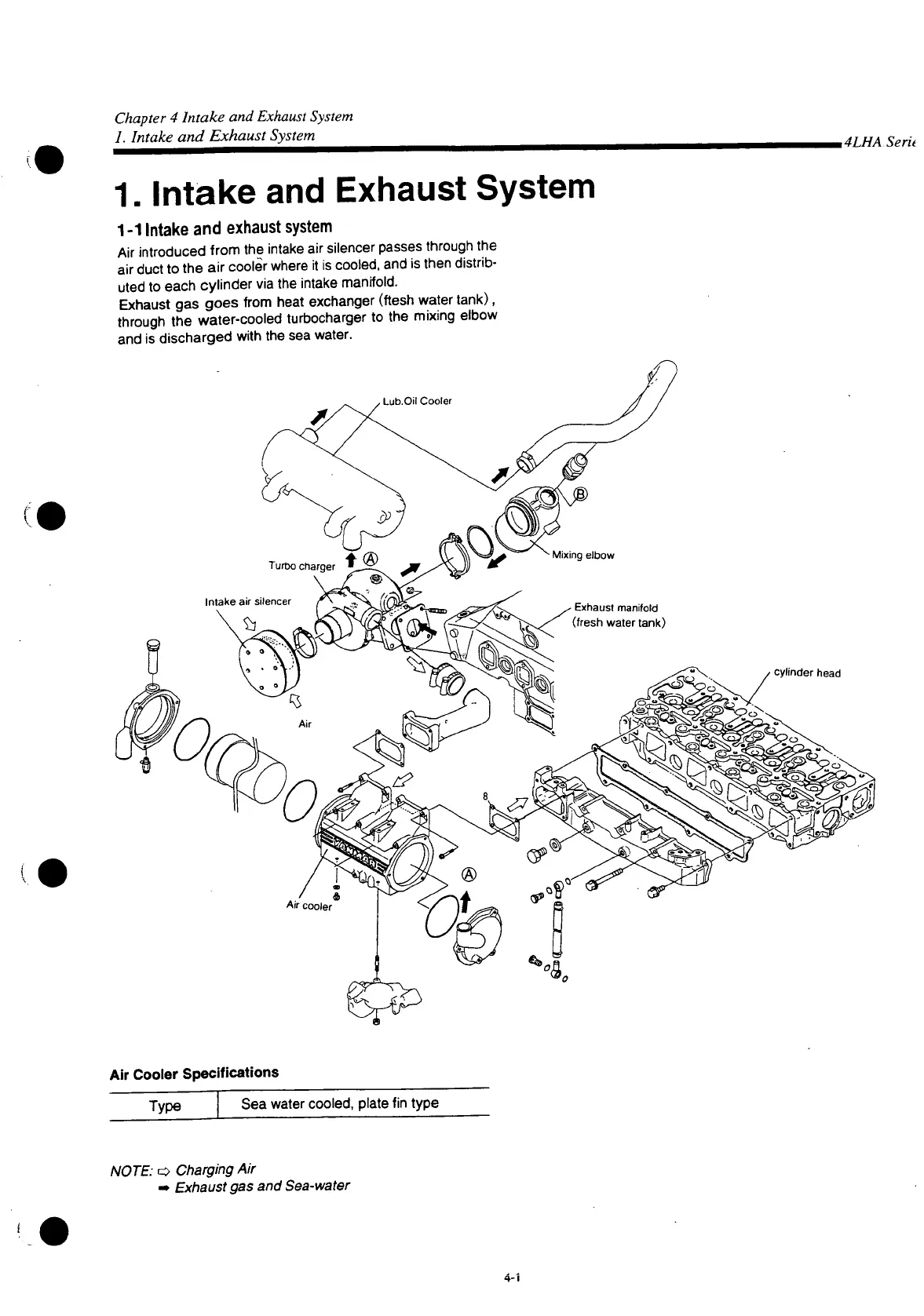

Chapter 4 Intake and Exhaust System
1. Intake and Exhaust System
,4LHASeri6
C'
1.
Intake
and
Exhaust System
1
-1
Intake
and
exhaust
system
Air
introduced from the intake air silencer
passes
through the
air duct to the air cooler where it is
cooled,
and is then distrib-
uted to each cylinder via the intake manifold.
Exhaust
gas goes from heat exchanger (ftesh water tank),
through the water-cooled turbocharger to the mixing elbow
and
is discharged
with
the sea water.
Air Cooler
Specifications
Type
Sea
water
cooled,
plate fin type
NOTE: o Charging Air
• Exhaust gas and Sea-water
4-i
