Y0OR4782 (2001.09.27)
26

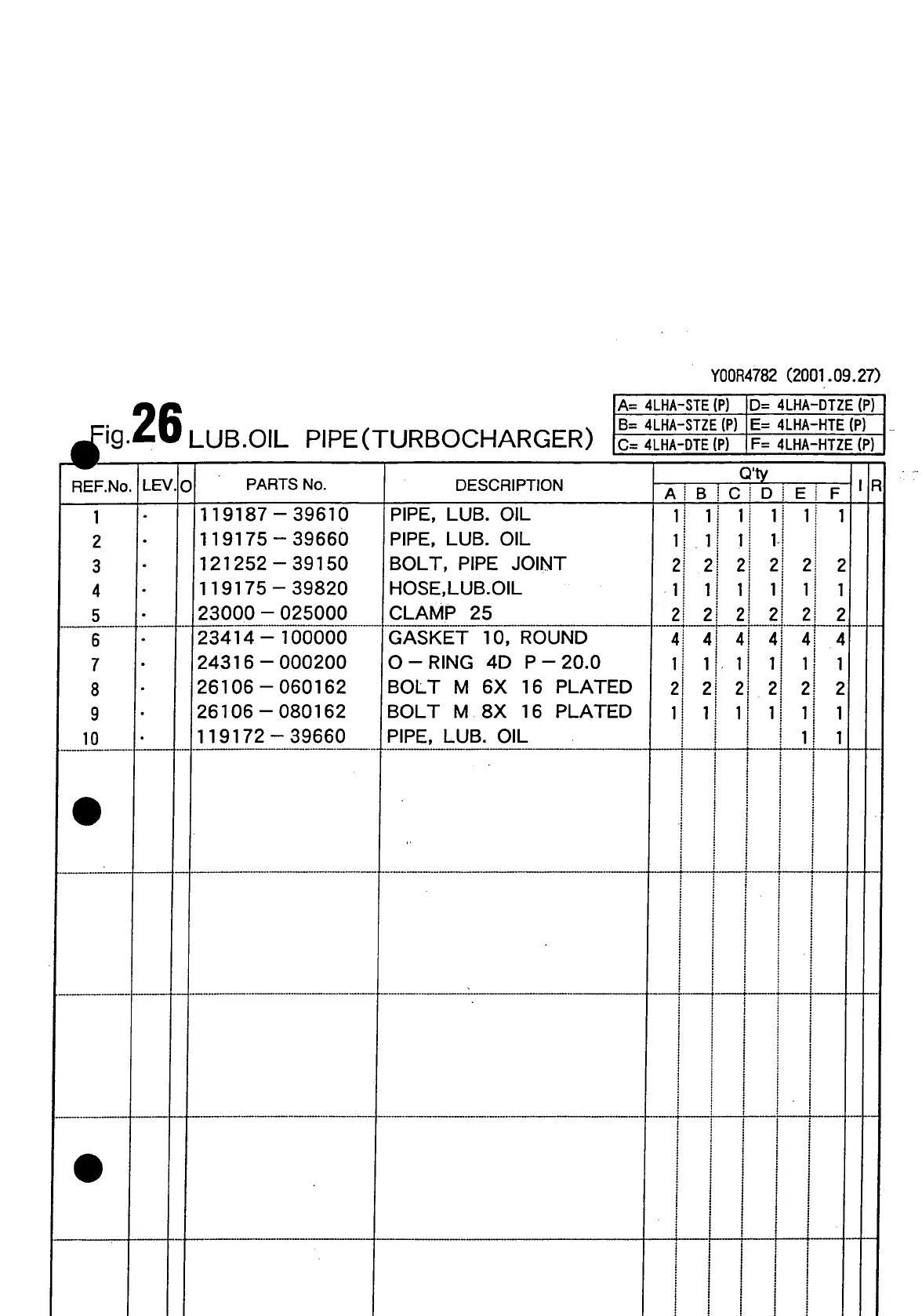

LUB.OIL PIPE (TURBOCHARGER)
A= 4LHA-STE (P)
D= 4LHA-DTZE (P)
B= 4LHA-STZE (P) E= 4LHA-HTE (P)
C= 4LHA-DTE (P)
F= 4LHA-HTZE (P)
REF.No.
LEV.
PARTS No.
DESCRIPTION
B
Q'ty
D ! E
1
2
3
4
5
119187
119175
121252
119175
23000 -
- 39610
- 39660
-39150
- 39820
025000
PIPE, LUB. OIL
PIPE, LUB. OIL
BOLT, PIPE JOINT
HOSE,LUB.OIL
CLAMP 25
1! 1
1-|
2 2
1 1
2
6
7
8
9
10
23414-
24316-
26106-
26106 -
119172
100000
000200
060162
080162
-39660
GASKET 10, ROUND
O-RING 4D P-20.0
BOLT M 6X 16 PLATED
BOLT M 8X 16 PLATED
PIPE, LUB. OIL
