Yanmar 4LHA-HTP User Manual

Y00R4782 (2001.09.27)
29

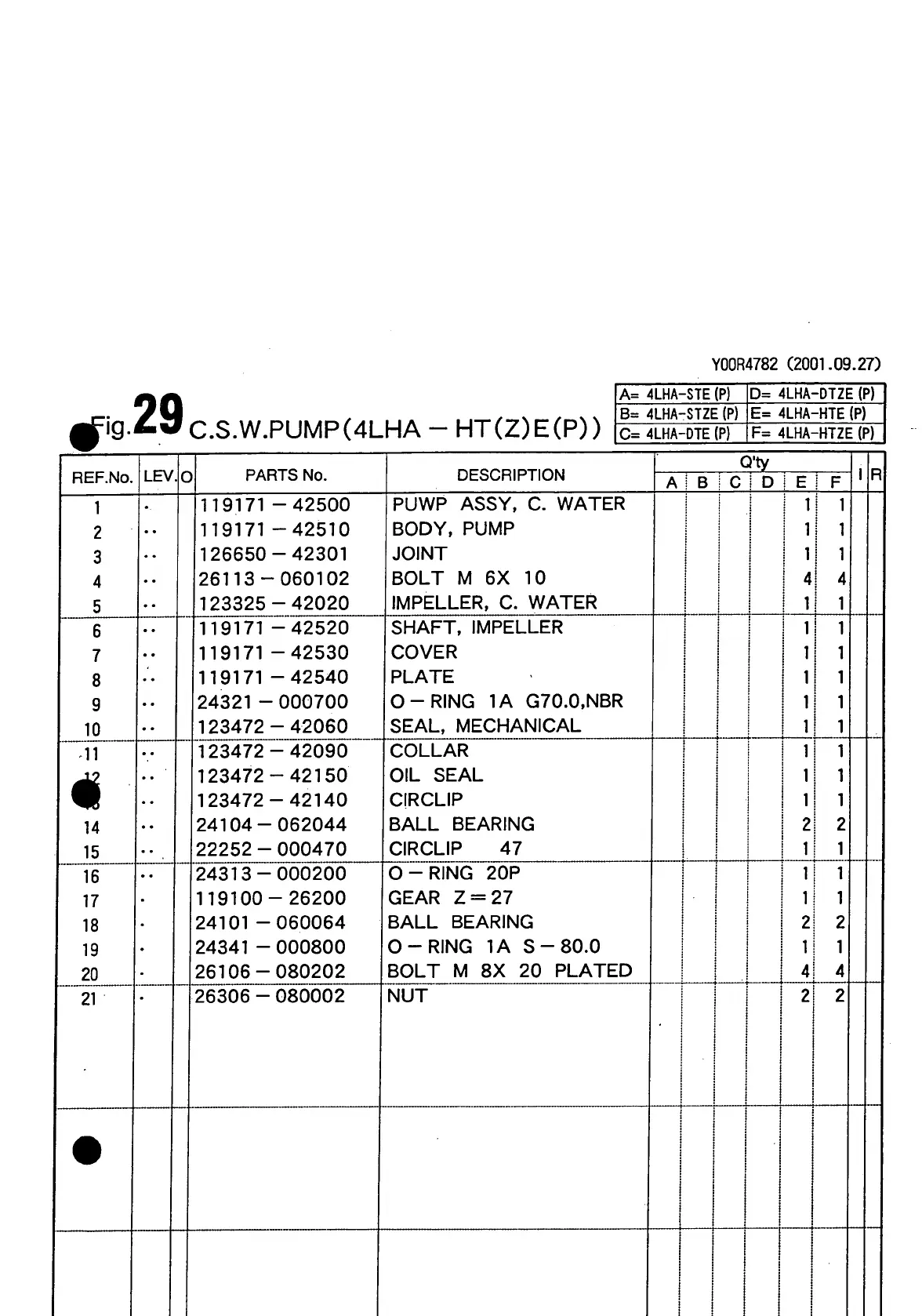

C.S.W.PUMP(4LHA - HT(Z)E(P))
A= 4LHA-STE (P)
D= 4LHA-DTZE (P)
B= 4LHA-STZE (P)
E= 4LHA-HTE (P)
C= 4LHA-DTE (P)
F= 4LHA-HTZE (P)
LEV.
PARTS No.
119171 -42500
119171 -42510
126650-42301
26113-060102
123325-42020
119171
119171
119171
24321 -
123472
- 42520
- 42530
- 42540
- 000700
- 42060
DESCRIPTION
PUWP ASSY, C. WATER
BODY, PUMP
JOINT
BOLT M 6X 10
IMPELLER, C. WATER
SHAFT, IMPELLER
COVER
PLATE
O-RING IA G70.0,NBR
SEAL, MECHANICAL
A i B C
Q'ty
123472
123472
123472
24104-
22252 -
- 42090
-42150
-42140
062044
000470
COLLAR
OIL SEAL
CIRCLIP
BALL BEARING
CIRCLIP 47
24313-
119100
24101 -
24341 -
26106-
000200
- 26200
060064
000800
080202
O-RING 20P
GEAR Z = 27
BALL BEARING
O-RING IA S-80.0
BOLT M 8X 20 PLATED
26306 - 080002
NUT
