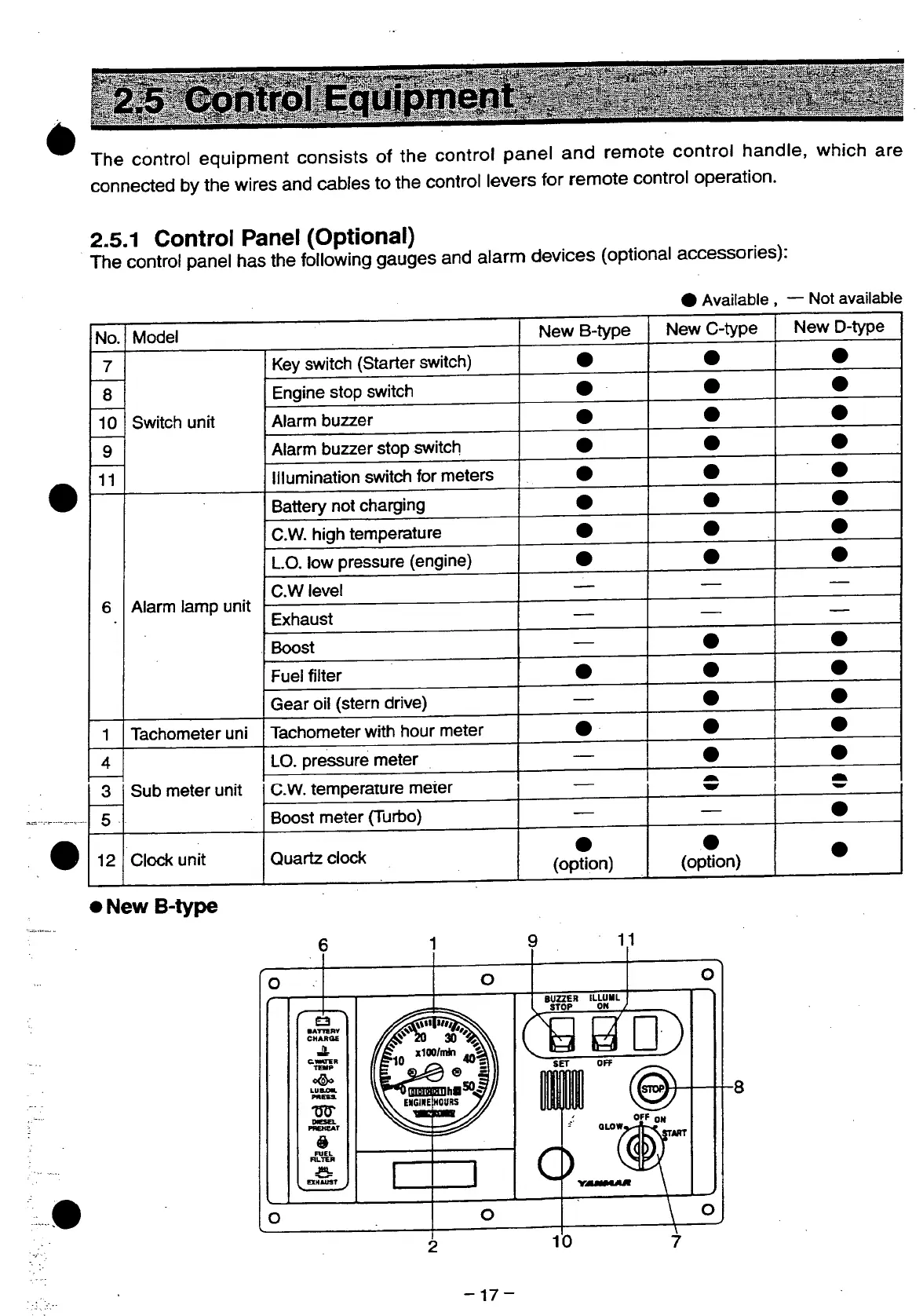

The control equipment consists of the control panel and remote control handle, which are
connected by the wires and cables to the control levers for remote control operation.
2.5.1 Control Panel (Optional)
The control panel has the following gauges and alarm devices (optional accessories):
• Available , — Not available
No.
Model
New B-type
New C-type
New D-type
7
Switch unit
Key switch (Starter switch)
•
• •
8
Switch unit
Engine stop switch
•
•
•
10
Switch unit
Alarm buzzer
•
• •
9
Switch unit
Alarm buzzer stop switch
•
• •
11
Switch unit
Illumination switch for meters
•
•
•
6
Alarm lamp unit
Battery not charging
•
•
•
6
Alarm lamp unit
C.W. high temperature
•
• •
6
Alarm lamp unit
L.O. low pressure (engine)
•
• •
6
Alarm lamp unit
C.W level
—
6
Alarm lamp unit
Exhaust
6
Alarm lamp unit
Boost
• •
6
Alarm lamp unit
Fuel filter
•
• •
6
Alarm lamp unit
Gear oil (stern drive)
•
•
1
Tachometer uni
Tachometer with hour meter
•
•
•
4
Sub meter unit
LO. pressure meter
• •
3
Sub meter unit
C.W. temperature meter
5
Sub meter unit
Boost meter (Turbo)
•
12
Clock unit
Quartz clock
•
(option)
•
(option)
•
»New B-type
-17-
